• Model NO.：38CNC-3A-1S
• Type：Pipe and Tube Bending Machine
• Certificate：ISO9001: 2000
• Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
• Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 38CNC-3A-1S Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Application Wheelbarrow, Wheelchair, Boiler, Automobile Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

GM-SB-38CNC Full-Auto Numerical Control Model:38×3A×1S  Machine CharacteristicsGM-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending with feeding,rotating and bending all drived by servo motor. CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection,Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	¢38*2
Stainless Steel	mm	¢32*2
Light alloy annealed round tube	mm	¢40*3
Mild steel square tube	mm	30*30*2
Mild steel rectangular tube	mm	35*20*2
Mild steel round solid bar	mm	¢16
Mild steel square solid bar	mm	15*15
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	200
Head overhang (on bending centre)	mm	500
Head height (on bending centre)	mm	360
Bending centre height (from floor)	mm	945
Max. bar passage inside the P.O.B. positionner	mm	50
Clamping adjustable stroke	mm	0-90
Shouldering adjustable stroke	mm	256
Mandrel retraction adjustable stroke	mm	0-76
Max. Bending Angle	°	190°
Through Effective Distance	mm	3200
Bending Speed(Max.)	°/sec	180
Max. rotation speed (axis Z)	°/sec	200
Max. feeding speed (axis X.)	mm/sec	1000
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Bending Servo Motor Power	KW	3.5
Rotation Servo Motor Power	KW	0.4
Feeding Servo Motor Power	KW	0.75
System Motor Power	KW	4
Hydraulic Pump Volume	L	17
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4200*700*1300
Machine Weight	T	ABOUT 2.0

 Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan MINGWEI
Contactor	Schneider
Transformer	Wuxi Xinyu

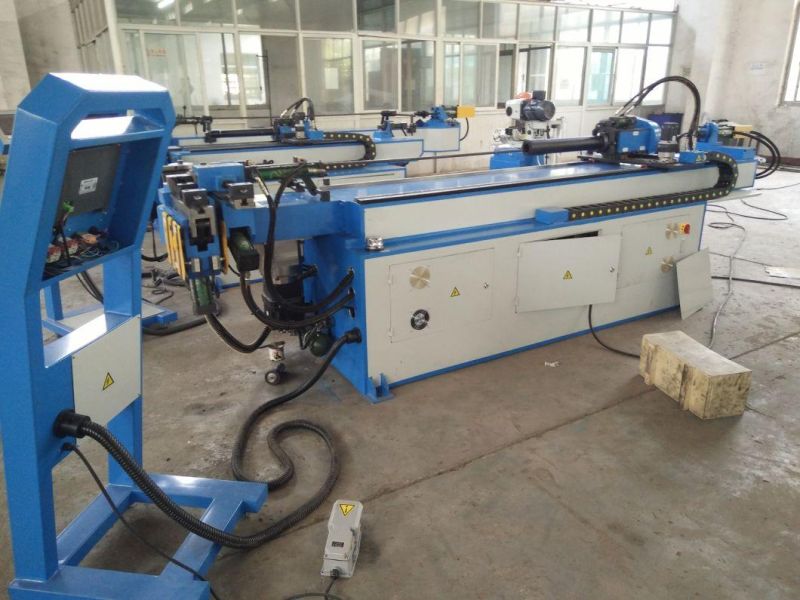

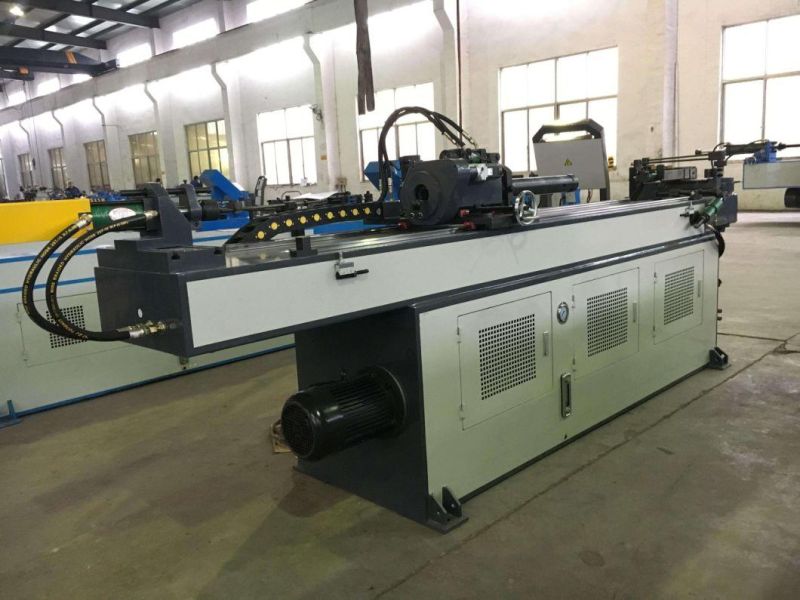

MODEL:GM-SB-38CNC-3A-1S   Machine Photo(only for your reference)









Tooling Samples

        Bending Die                 Clamp Die                                                  Pressure Die






           Mandrel                                                                                  Wiper Die(optiona

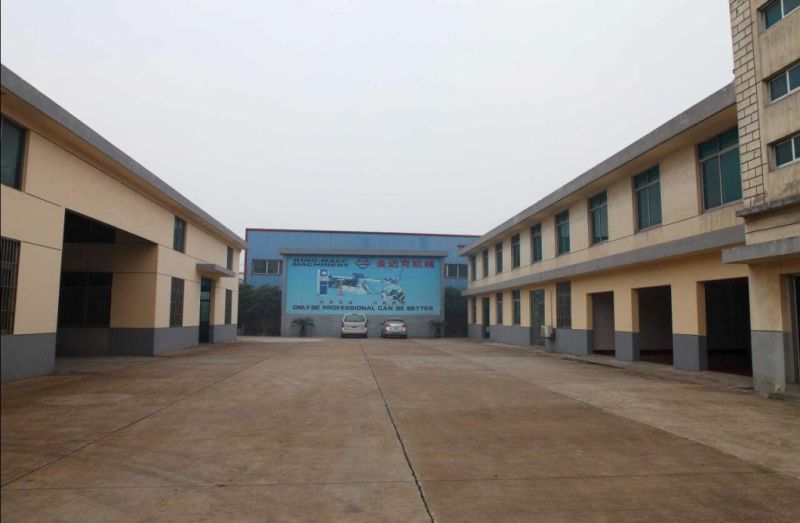

 Company Photos

CNC Machining Center

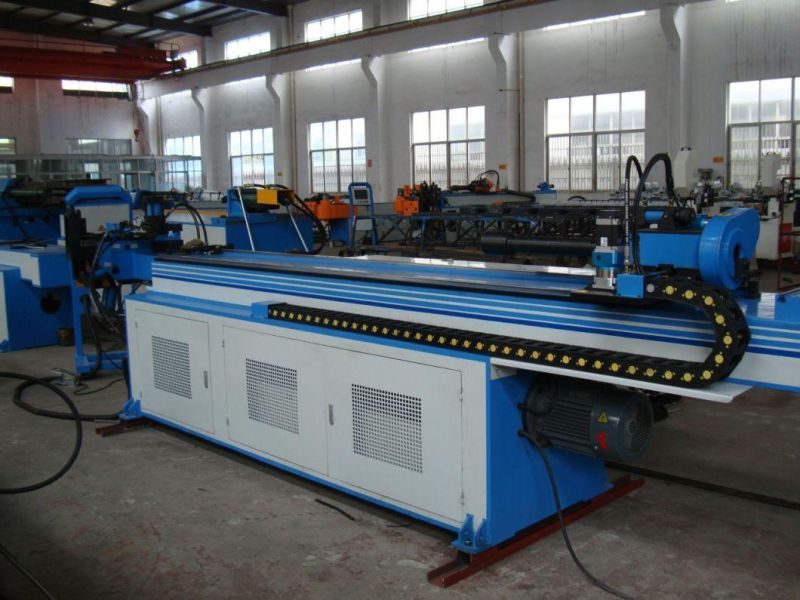

Assembling Workshop
