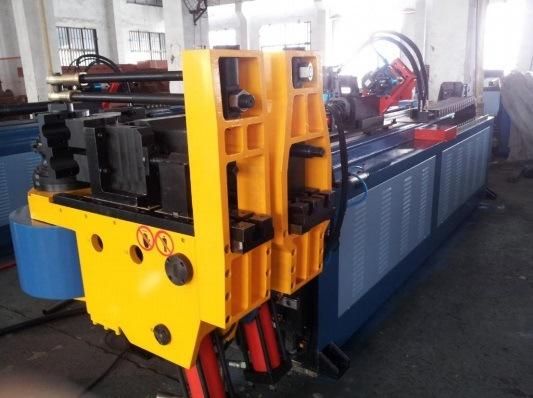

Computerized Numerical Control Three-Dimension Tube Bender
Zhangjiagang Runtai Machinery Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New
- Certification:RoHS
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:RT-114CNC-2A-2S
- Type:Pipe and Tube Bending Machine
- Transport Package:Wooden Box
- Specification:CE ISO
- Trademark:RUNTAI
- Origin:Zhangjiagang Jiangsu China(Mainland)
- Production Capacity:5000PCS,Year
Description
Basic Info.
Model NO. RT-114CNC-2A-2S Type Pipe and Tube Bending Machine Transport Package Wooden Box Specification CE ISO Trademark RUNTAI Origin Zhangjiagang Jiangsu China(Mainland) Production Capacity 5000PCS/YearProduct Description
Main Features:The body is made through welding, the mechanical part through assembly; using imported hydraulic system and the latest PLC or IPC electronic control system. Main features:
1. Fully automatic and CNC pipe bending machine.
2. Equipped with 2 electric servo axis.
3. Feeding: servomotor drive; Rotation: servomotor drive.(the servomotor from Mitsubishi).
4. Bending: hydraulic and encoder control; Feeding collets clamps: hydraulic.
5. Tooling stack: 2 stacks. The feeding carriage shifts up and down, left and right by hydraulic.
6. . Imported hydraulic system with water cooling device and Mitsubishi PLC unit with 10.4" touch screen makes the control more convenient; 168 groups of pipe-bending program storage, and each program group includes 32 bends; (IPC system is optional.)
7. Automatic lubrication system for moving areas;
8. Self-diagnostic system, detecting the error immediately;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature
Technical parameters:
Model | RT-114CNC-2A-2S |
Max bending capability | Φ114×8 mm (carbon steel) |
Bending radius | 30~500 mm |
Bending angle | 0~185° |
Max mandrel use length | 4500mm (can be customized for bigger length) |
Tools stack | 2 |
Rotating and feeding | Electric AC servo with reduction gears |
Bending and other clamping | Hydraulic |
Feeding carriage horizontal and vertical movements | Hydraulic |
Bending speed | ≤ 10°/sec |
Bending accuracy | ±0.1° |
Feeding speed | 20~200 mm/sec |
Feeding accuracy | ±0.1 mm |
Rotating speed | ≤ 45°/sec |
Rotating accuracy | ±0.1° |
Power supply | 380V, 50Hz, 3-phase (415V, 50Hz, 3-phase) |
The voltage of control valve | DC24V |
Main motor power | 15Kw |
System hydraulic pressure | 14MPa |
Size | 7500×2500×2200mm |
RT-114CNC-2A-2S Main Components List:
No. | NAME | MODEL | QTY | ORIGIN |
1 | Servomotor (Rotating) | HF-SP-552 | 1 | Mitsubishi, Japan |
2 | Servomotor (Feeding) | HF-SP-775 | 1 | Mitsubishi, Japan |
3 | Servomotor (Bending) | ---- | 0 | ---- |
4 | Motor Reducer (Bending) | ---- | 0 | ---- |
5 | Motor Reducer (Rotating) | AB220 - 015 - S1 - P2 | 1 | APEX, Taiwan |
6 | Motor Reducer (Feeding) | AB350 - 015 - S1 - P2 | 1 | APEX, Taiwan |
7 | PLC | FX2N-48MR | 1 | Mitsubishi, Japan |
8 | IPC Industrial Personal Computer (OPTIONAL) | TPC-1570H (with WIN XP industry version Operation System) | 1 | ADVANTECH, Taiwan |
9 | Contactor | CN-86 | 1 | Taian Technology, Taiwan |
10 | Power switch | CV-30-75 | 1 | Tend Electronics, Taiwan |
11 | Guide Rail | RGW-75CB2R | 6 | HIWIN, Taiwan |
12 | Oil Pump Motor | 11HP-7P | 1 | Donlim Motor, Taiwan |
13 | Hydraulic Valve | D5-02-3C4-D2 | 4 | YUKEN, Japan |
14 | Hydraulic Valve | D5-02-3C2-D2 | 5 | YUKEN, Japan |
15 | Hydraulic Valve | D5-02-3C3-D2 | 1 | YUKEN, Japan |
16 | Hydraulic Valve | MFSC-02-D2 | 4 | YUKEN, Japan |
17 | Hydraulic Control One-Way Valve | PCVW-02-A | 1 | YUKEN, Japan |
18 | Reducing Valve | BRVP-02-L-C | 2 | YUKEN, Japan |
19 | Overflow Valve | BSG-03-2PN-H-D2 | 1 | YUKEN, Japan |
20 | Pressure Gage | DT-63 | 3 | KMpass, Taiwan |
