• Model NO.：QC11Y-12x2500
• Transport Package：Plastic Covering
• Specification：QC11Y-12x2500
• Trademark：HAVEN
• Origin：China
• HS Code：8462399
• Production Capacity：Units,Month

Basic Info.

Model NO. QC11Y-12x2500 Transport Package Plastic Covering Specification QC11Y-12x2500 Trademark HAVEN Origin China HS Code 8462399 Production Capacity Units/Month

Product Description

                                                             QC11Y Series CNC Hydraulic Cutting Machine






Main functions:
1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine  has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

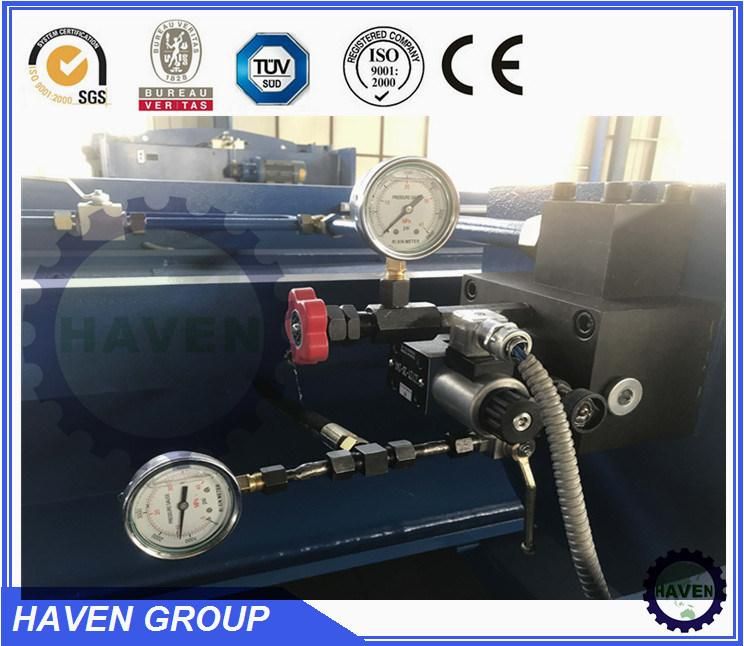

3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.

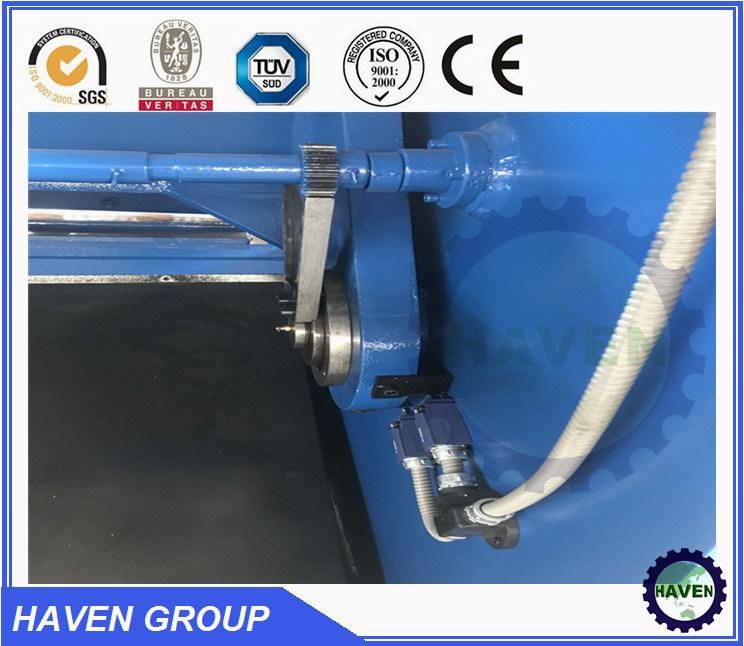

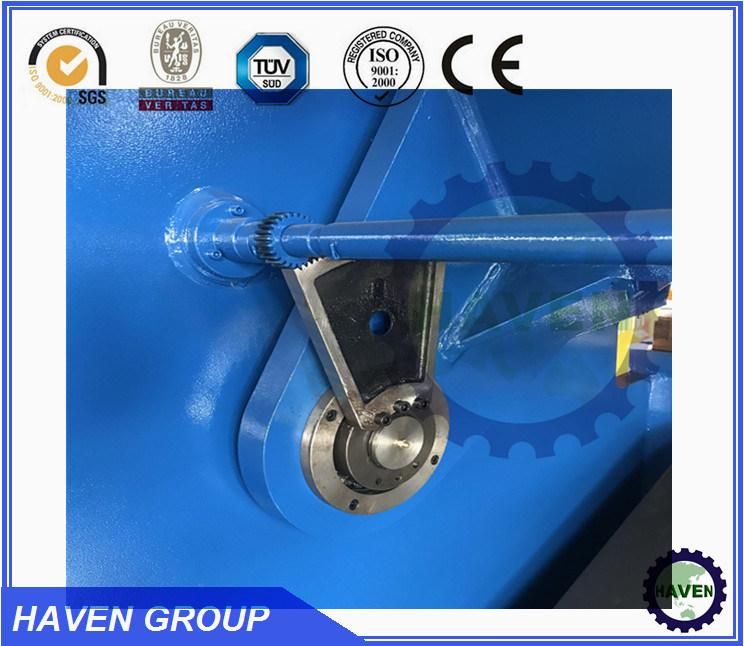

6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.

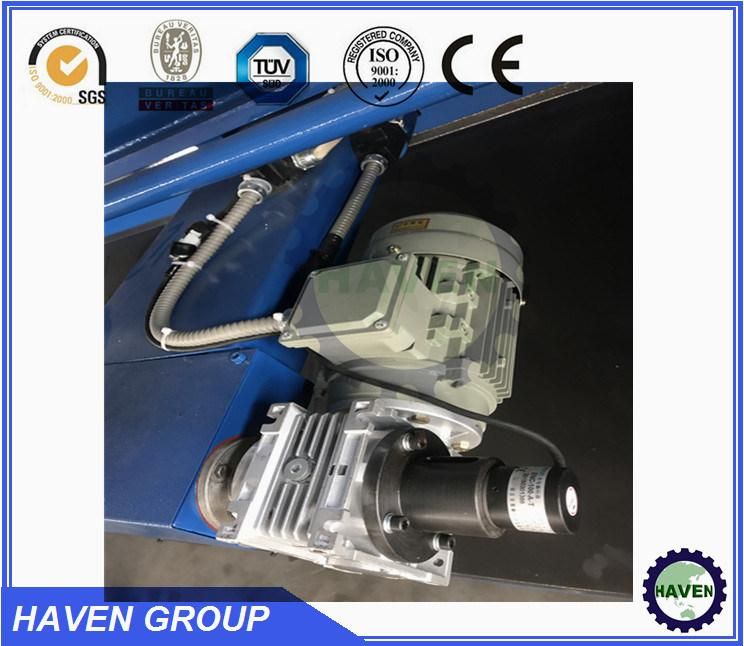

7. Motorized adjusting and manual adjusting for the back gauge.

Main paramrter :

Model	Mild Steel (450MPA)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor
4× 2000	4	2000	80	750	0.5° -2°	14	5.5
4× 2500	4	2000	80	750	0.5° -2°	14	5.5
6× 2500	6	2500	80	750	0.5° -1° 30′	14	7.5
6× 3200	6	3200	80	750	0.5° -1° 30′	12	7.5
6× 4000	6	4000	80	750	0.5° -1° 30′	10	7.5
6× 5000	6	5000	80	750	0.5° -1° 30′	8	7.5
6× 6000	6	6000	80	750	0.5° -1° 30′	8	7.5
8× 2500	8	6000	80	750	0.5° -1° 30′	14	7.5
8× 3200	8	3200	80	750	0.5° -1° 30′	12	7.5
8× 4000	8	4000	80	750	0.5° -1° 30′	10	7.5
8× 5000	8	5000	80	750	0.5° -2°	7	15
8× 6000	8	6000	100	750	0.5° -2°	7	15
10× 2500	10	2500	100	750	0.5° -2° 30′	10	15
10× 3200	10	3200	100	750	0.5° -2° 30′	8	15
10× 4000	10	4000	100	750	0.5° -2° 30′	6	15
10× 5000	10	5000	100	750	0.5° -2° 30′	5	15
10× 6000	10	6000	100	750	0.5° -2° 30′	5	15
12× 2500	12	2500	100	750	0.5° -2° 30′	10	15
12× 3200	12	3200	100	750	0.5° -2° 30′	8	15
12× 4000	12	4000	100	750	0.5° -2° 30′	5	15
12× 5000	12	5000	100	750	0.5° -2° 30′	5	18.5
12× 6000	12	6000	100	750	0.5° -2° 30′	5	18.5
16× 2500	16	2500	100	750	0.5° -2° 30′	8	15
16× 3200	16	3200	100	750	0.5° -2° 30′	7	15
16× 4000	16	4000	100	750	0.5° -2° 30′	6	15
16× 5000	16	5000	100	750	0.5° -3°	5	22
16× 6000	16	6000	80	750	0.5° -3°	5	37
20× 2500	20	2500	100	750	0.5° -3°	6	22
20× 3200	20	3200	120	750	0.5° -3°	5	30
20× 4000	20	4000	120	750	0.5° -3°	4	30
20× 5000	20	5000	120	750	0.5° -3°	4	37
25× 2500	25	2500	120	750	0.5° -3.5°	5	37
25× 3200	25	3200	120	750	0.5° -3.5°	5	37
25× 4000	25	4000	120	750	0.5° -3.5°	4	37
30× 2500	30	2500	120	750	0.5° -3.5°	4	37
30× 3200	30	3200	120	750	1° -3.5°	3	37
