• Model NO.：E3-IN-1,1320 E3-IN-1,2040
• Application：Machinery & Hardware
• Type for Cutting Machine：Hydraulic Cutting Machine
• Type for Fold-Bending Machine：Manual Fold-Bend Machine
• Transport Package：Wood Case
• Specification：CE ISO900 rohs
• Trademark：L&T
• Origin：Tengzhou China
• HS Code：8479819000
• Production Capacity：100 PC,Month

Basic Info.

Model NO. E3-IN-1/1320 E3-IN-1/2040 Application Machinery & Hardware Type for Cutting Machine Hydraulic Cutting Machine Type for Fold-Bending Machine Manual Fold-Bend Machine Transport Package Wood Case Specification CE ISO900 rohs Trademark L&T Origin Tengzhou China HS Code 8479819000 Production Capacity 100 PC/Month

Product Description

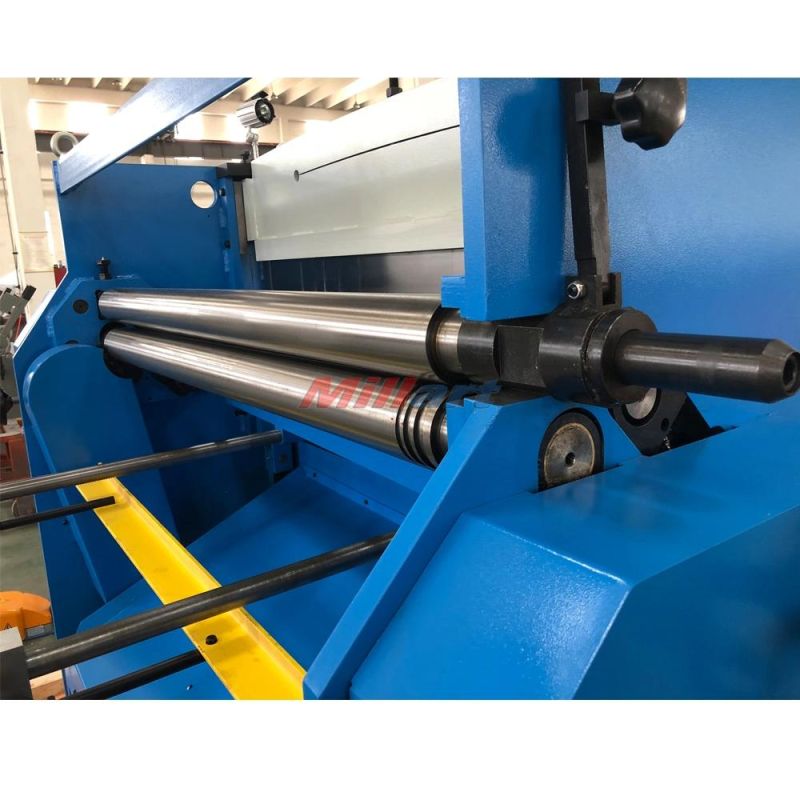

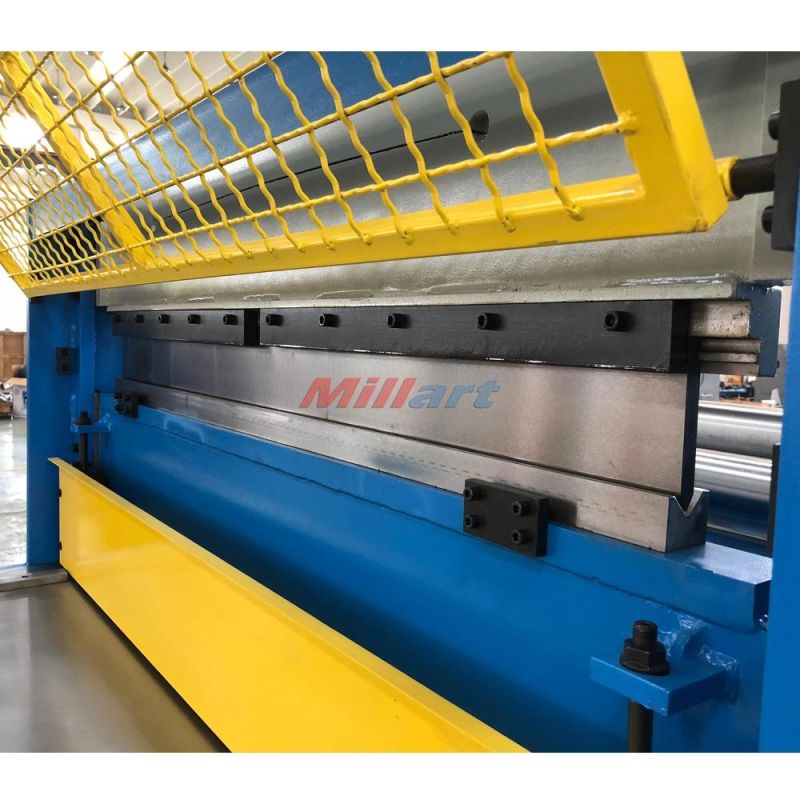

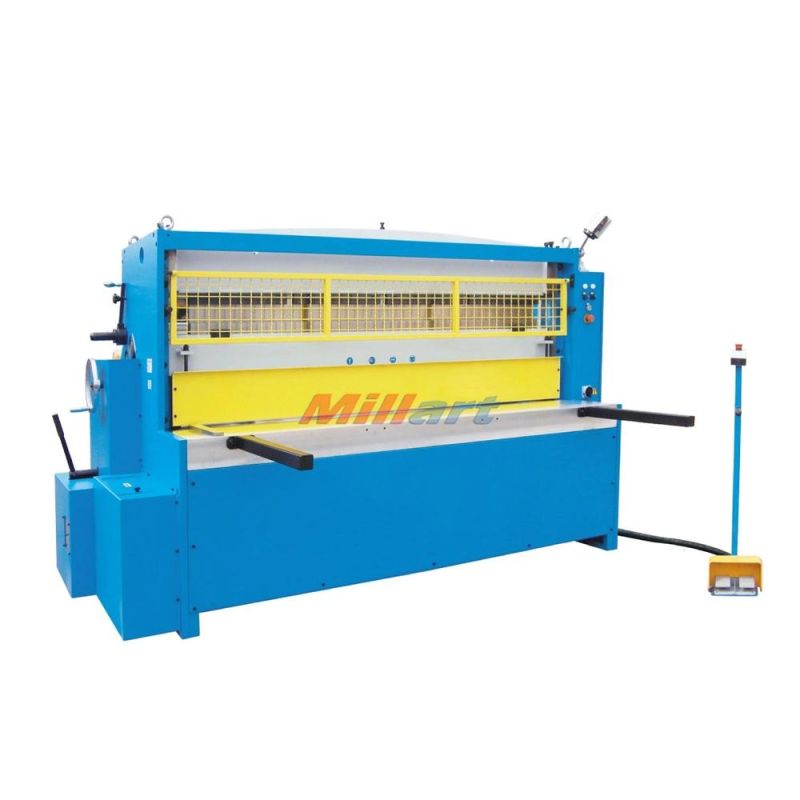

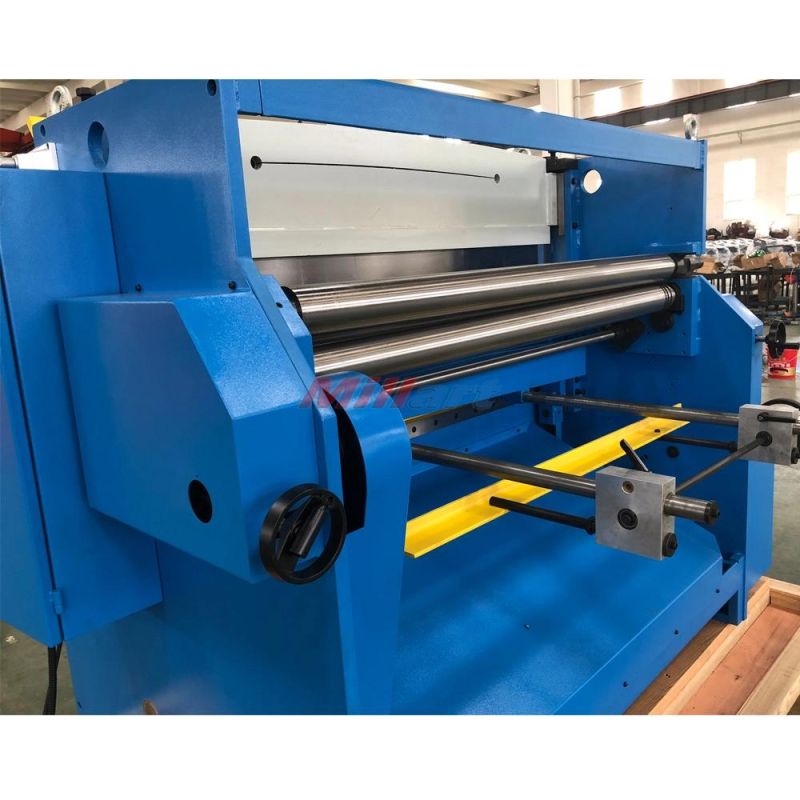

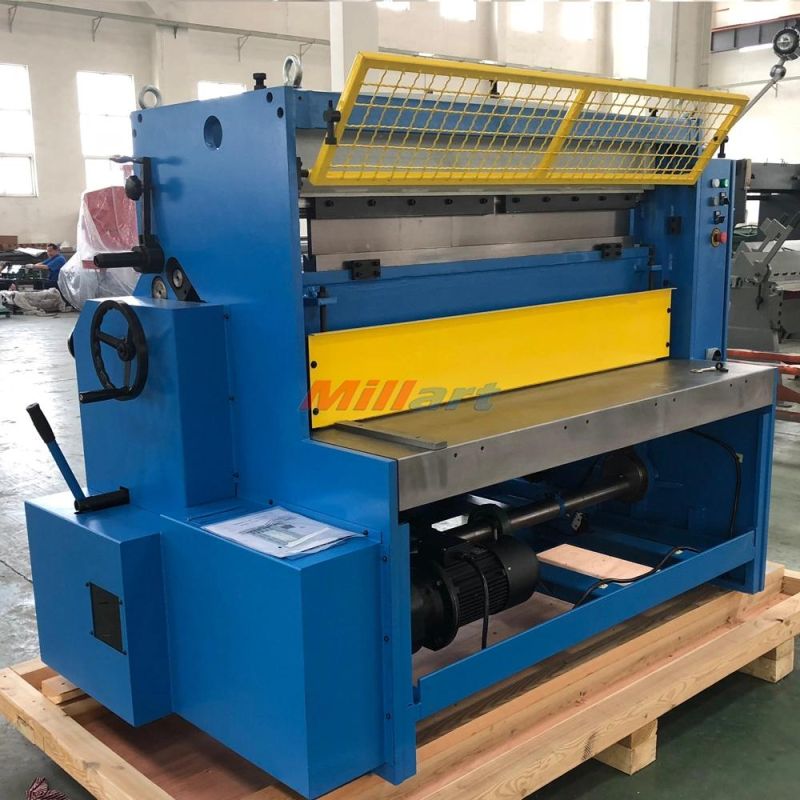

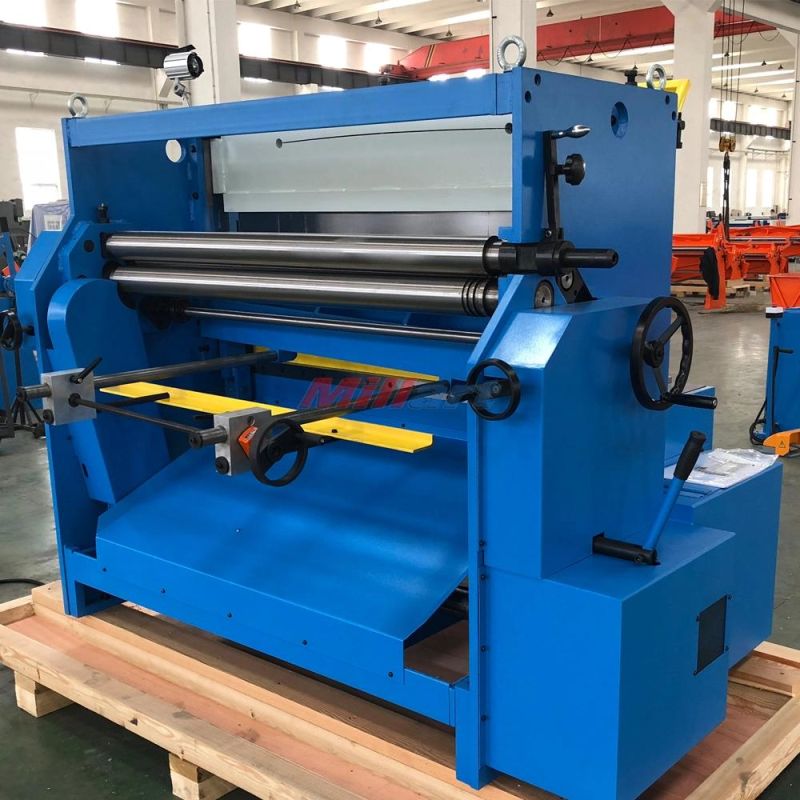

Electric Multi Purpose Machine of Brake Shear & Roll E3-in-1/1320 E3-in-1/2040


Festures:
1. Combination of shear, brake & roll with high strong structure
2. For rolling, the process for the taper rolling is very easy
3. For shearing & bending, both can achieve single stroke and contunuous stroke
4. The back gauge adopt data control system, the adjustment is quickly and exactly
5. Our electric 3-in-1 machine features stable performance and reasonable structure.
Technical parameter:

Model	E3-IN-1/1320	E3-IN-1/2040
Max Shearing thickness(mm)	3	3
Max shearing width(mm)	1320	2040
Shearing angle	2°	2.5°
Number of stroke(per min)	30	30
Back-gauge range(mm)	450	450
Height of worktable(mm)	760	760
Max bending thickness(mm)	2	2
Max bending width(mm)	1320	2040
Max rolling thickness(mm)	3	3
Max rolling width(mm)	1500	2100
Min rolling dia(mm)	90	120
Motor power(kw)	3	4
N.W./G.W.(kg)	2300/2800	3500/3800
Packing size(cm)	254X145X197	326X145X197

Standard accessories:
1.Back gauge
2.Tools.
Company information:
