• Model NO.：QC12Y

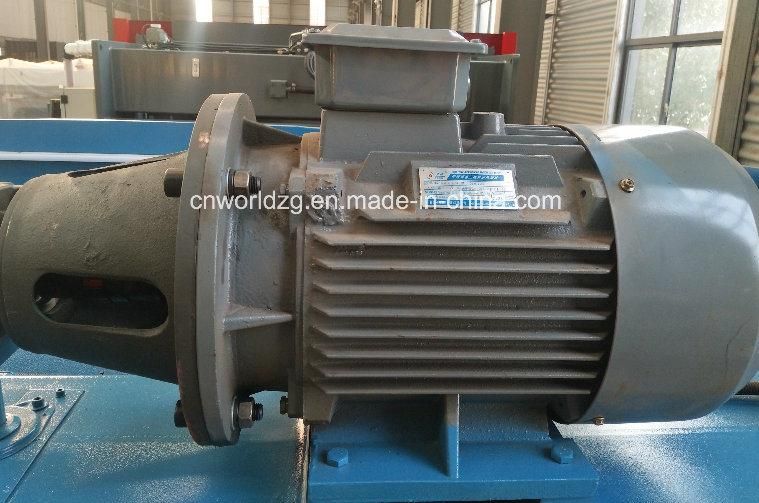

• Motor Brand：Siemens

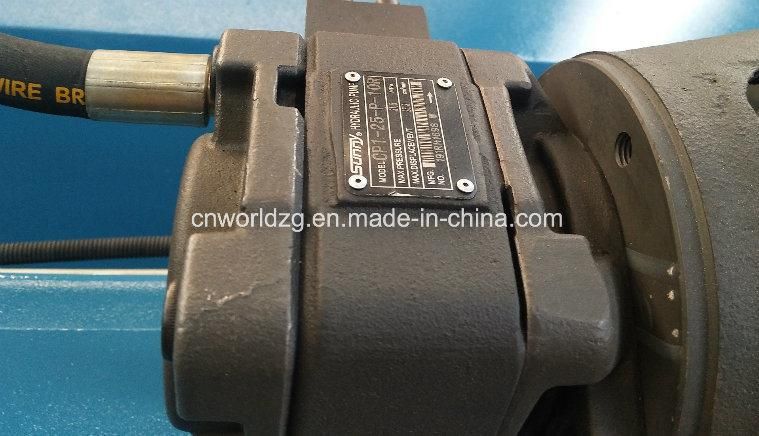

• Hydraulic Pump：Sunny
• Valve：Rexroth
• Control System：Estun E21s Nc System
• Color：Customized
• Transport Package：in Container
• Specification：cutting width to 6000mm
• Trademark：WORLD
• Origin：China
• HS Code：84623990
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. QC12Y Motor Brand Siemens Hydraulic Pump Sunny Valve Rexroth Control System Estun E21s Nc System Color Customized Transport Package in Container Specification cutting width to 6000mm Trademark WORLD Origin China HS Code 84623990 Production Capacity 5000PCS/Year

Product Description

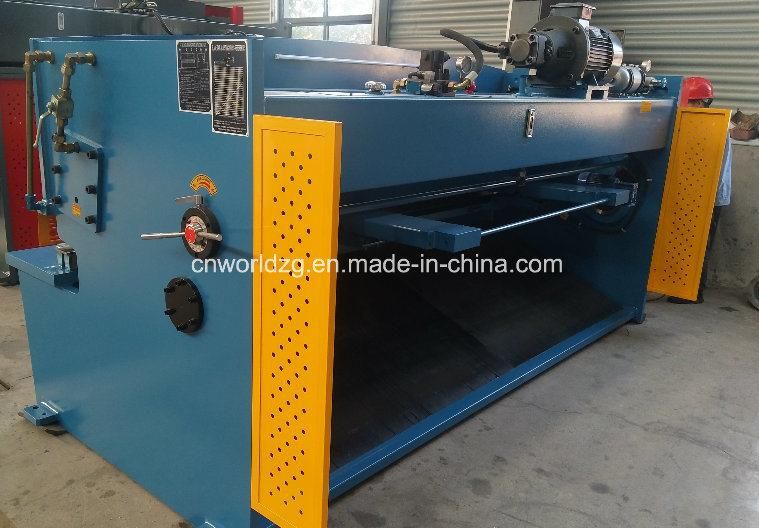

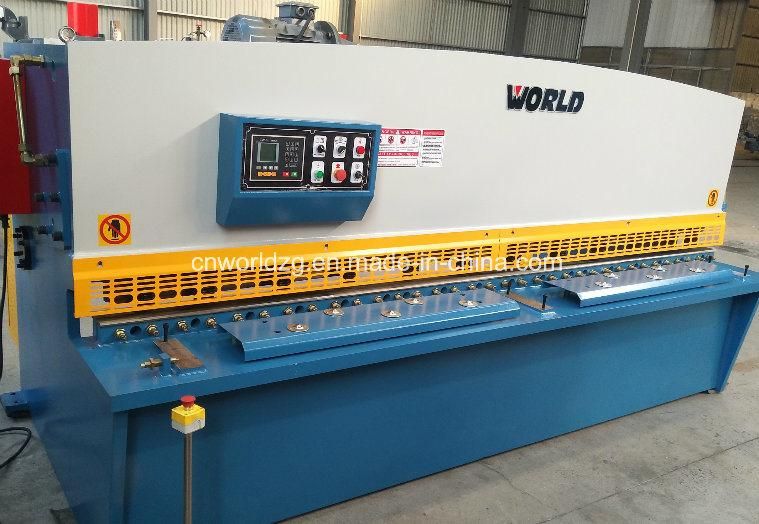

4mm thickness steel plate shearing machine with E21 NC system

Features:

1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.

Details:

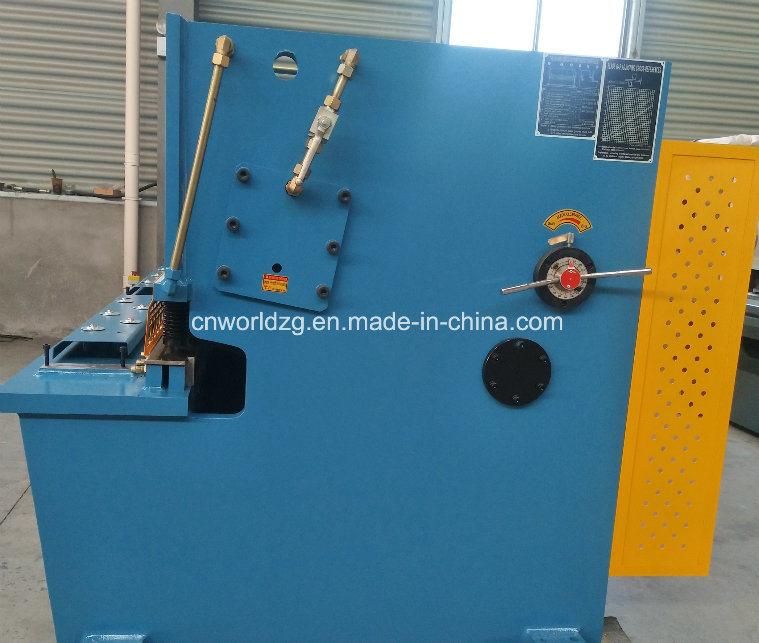

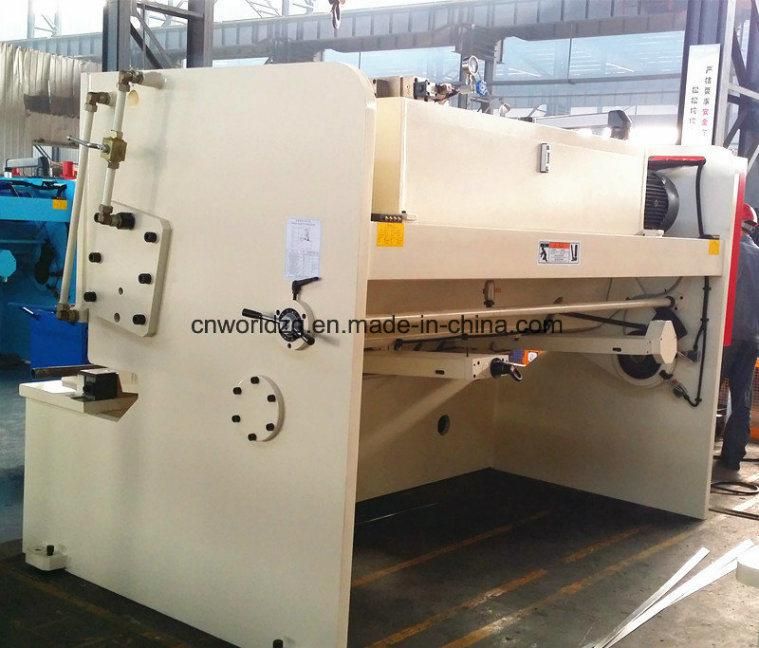

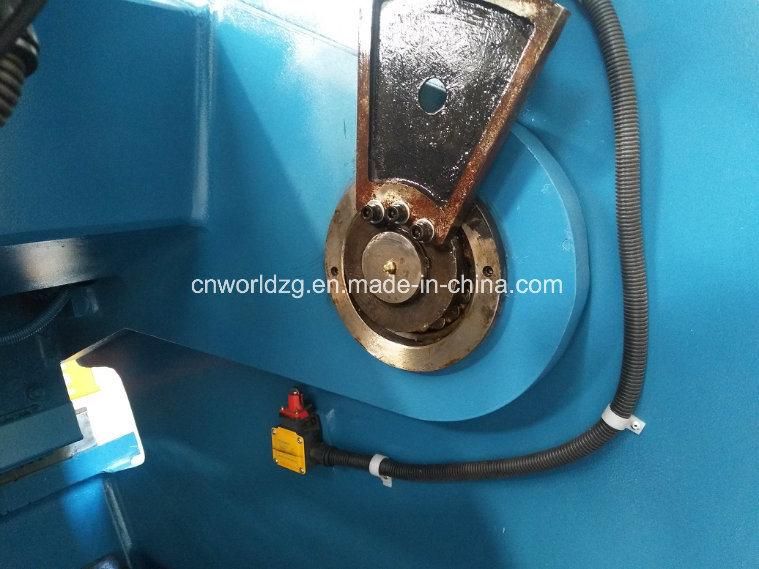

1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.

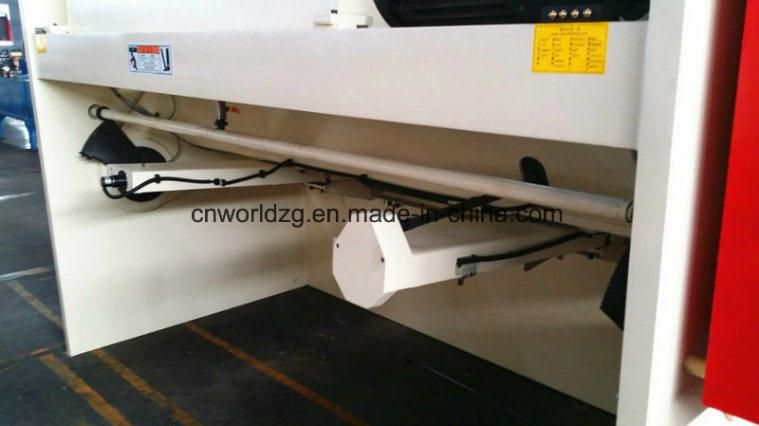

2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.

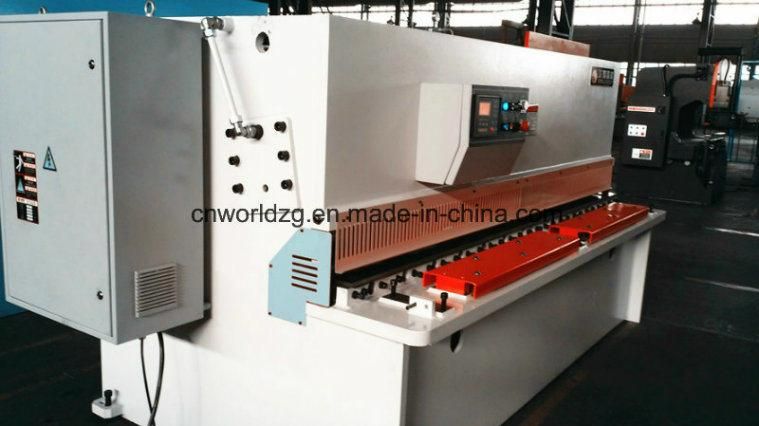

3-English control panel with counter, emergency stop button is equipped for safety.











Specifications:

Items	unit	QC12Y-4x2500	QC12Y-4x3200	QC12Y-4x4000
Max. cutting thickness	mm	4	4	4
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	1.5	1.5	1.5
Travel distance of back gauge	mm	20-600	20-600	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	16	14	10
Main motor	kW	4	5.5	5.5
Length	mm	3040	3840	4800
Width	mm	1500	1500	1500
Height	mm	1500	1600	1700

Items	unit	QC12Y-6x2500	QC12Y-6x3200	QC12Y-6x4000
Max. cutting thickness	mm	6	6	6
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	1.5	1.5	1.5
Travel distance of back gauge	mm	20-600	20-600	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	15	12	12
Main motor	kW	7.5	7.5	7.5
Length	mm	3040	3840	4800
Width	mm	1650	1650	1650
Height	mm	1700	1700	1700

Items	unit	QC12Y-8x2500	QC12Y-8x3200	QC12Y-8x4000
Max. cutting thickness	mm	8	8	8
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	1.5	1.5	1.5
Travel distance of back gauge	mm	20-600	20-600	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	14	12	10
Main motor	kW	7.5	7.5	11
Length	mm	3040	3860	4800
Width	mm	1700	1700	1700
Height	mm	1700	1700	1700
