• Model NO.：GT-WB-60-3A
• Type：Coiling Bending Machine
• Product Name：2D Wire Bending Bender Machine
• Voltage：220,380,440V
• Feeding Roller Number：3 Pairs
• Wire Turning Angle：Unlimited
• Axis：3
• Transport Package：Standard Export Fumugated Wooden Case
• Specification：2500X850X1600mm
• Trademark：WG
• Origin：China
• HS Code：846221900
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. GT-WB-60-3A Type Coiling Bending Machine Product Name 2D Wire Bending Bender Machine Voltage 220/380/440V Feeding Roller Number 3 Pairs Wire Turning Angle Unlimited Axis 3 Transport Package Standard Export Fumugated Wooden Case Specification 2500X850X1600mm Trademark WG Origin China HS Code 846221900 Production Capacity 100 Sets Per Year

Product Description

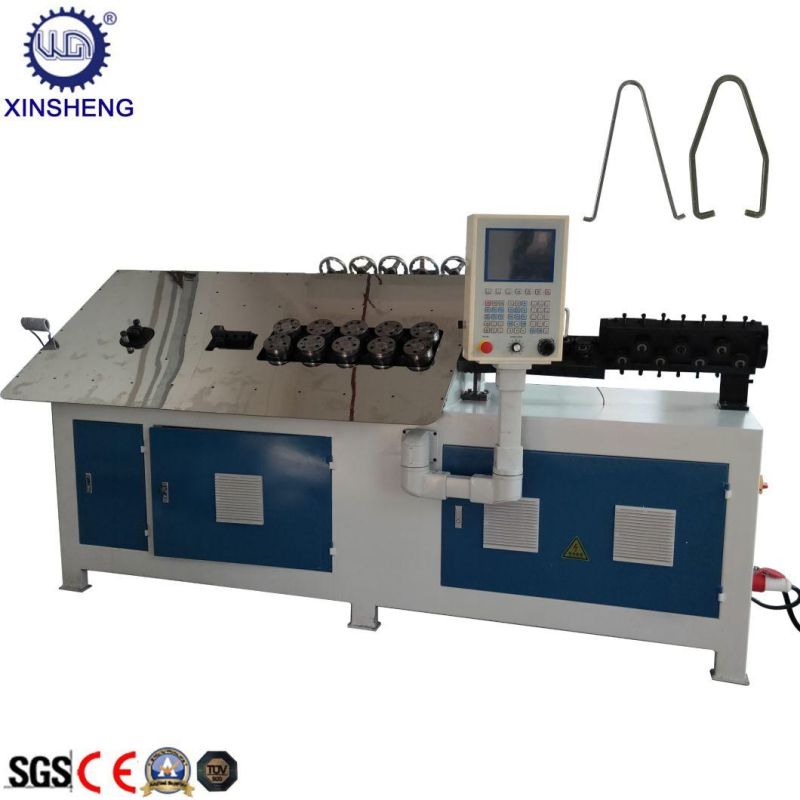

3 Axes Automatic CNC 2D Wire Bending Manufacturer Bender Machine

Product Description
CNC wire bending machine is to expertly produce kinds of wire forms in 2D  fully automatically.
It is suitable for wire size from 2.0mm up to 6.0mm.

Technical parameter of CNC Wire Bending Machine:

Model	GT-WB-60-3A	GT-WB-80-3A	GT-WB-100-3A	GT-WB-120-3A
Wire size(mm)	2.0-6.0	3.0-8.0	4.0-10.0	5.0-12.0
Axis	3	3	3	3
feeding roller number	3 pairs	3 pairs	3 pairs	3 pairs
wire turning angle	180°	unlimited	unlimited	unlimited
Feeding servo motor	2.3kw	2.3kw	4.0kw	5.5kw
Twisting servo motor	1.0kw	1.5kw	3.0kw	4.0kw
Turn head up and down servo motor	0.75kw	0.75kw	1.0kw	1.0kw
Hydraulic cylinder number	5	5	5	5
Hydraulic motor	2.2kw	2.2kw	3.7kw	3.7kw
Bending accuracy	+/-0.5mm	+/-0.5mm	+/-0.5mm	+/-0.5mm
Feeding accuracy	+/-0.2mm	+/-0.2mm	+/-0.2mm	+/-0.2mm
Feeding speed	100 mtrs/min	50 mtrs/min	22 mtrs/min	45 mtrs/min
machine size(cm)	250*85*150	280x85x158	320x85x158	350x85x158
machine weight(kg)	1200.0	1300.0	1500.0	1800.0

Pls contact me for further information and you are cordially invitited to visit our factory at any your free time .

Skp:Jesusbaby2082



I will stay here waiting for you~

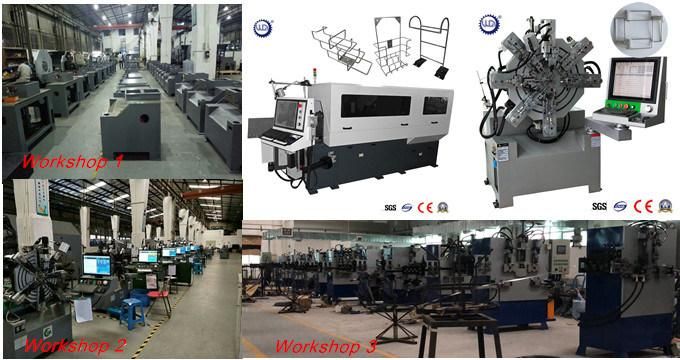

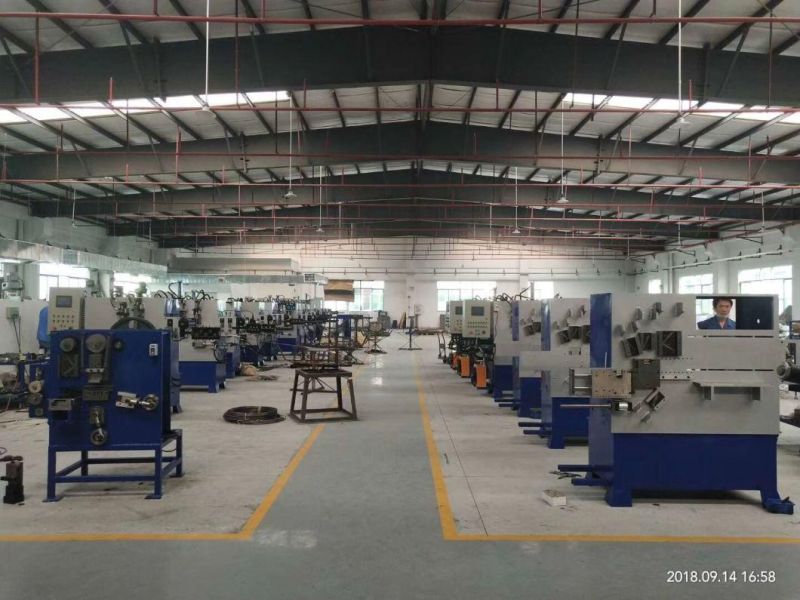

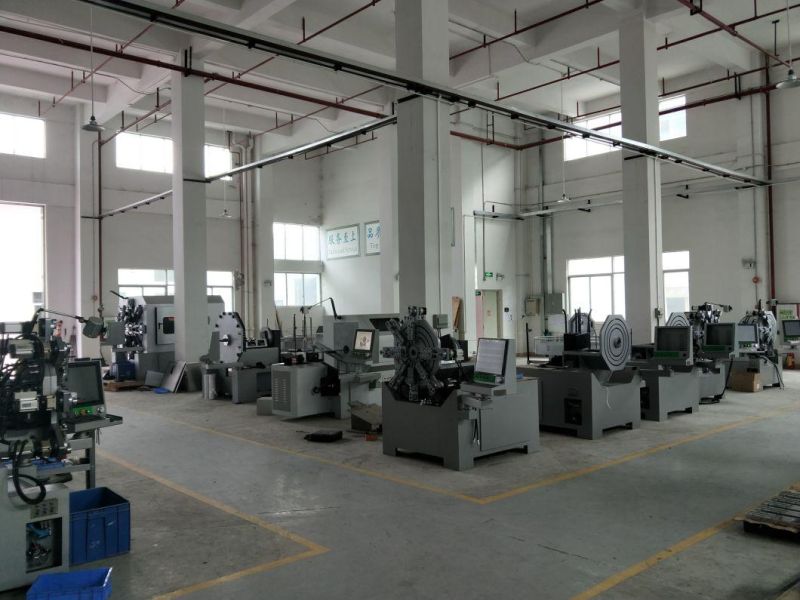

Workshop:








Main Products:
