• Model NO.：RB-25
• Suitable for：Aluminum, Carbon Steel
• Type：Roller-Bending Machine
• Dia of Bending Round Steel：6-40,42,50mm
• Dia of Deformed Bar of 2ND Degree：6-32,35,42mm
• Motor Power：3.0-4.0kw
• Voltage：220,380V
• Material / Metal Processed：Aluminum, Carbon Steel, Rod
• Key Selling Points：Easy to Operate
• After-Sales Service Provided：Online Support, Video Technical Support
• Wattage：1600W,1700W
• Raw Material：Steel Bar
• Bending Angle：0-180
• Transport Package：Carton Box
• Specification：110*90*70CM
• Trademark：Maxmach
• Origin：Zhejiang, China
• HS Code：8462299000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. RB-25 Suitable for Aluminum, Carbon Steel Type Roller-Bending Machine Dia of Bending Round Steel 6-40/42/50mm Dia of Deformed Bar of 2ND Degree 6-32/35/42mm Motor Power 3.0-4.0kw Voltage 220/380V Material / Metal Processed Aluminum, Carbon Steel, Rod Key Selling Points Easy to Operate After-Sales Service Provided Online Support, Video Technical Support Wattage 1600W/1700W Raw Material Steel Bar Bending Angle 0-180 Transport Package Carton Box Specification 110*90*70CM Trademark Maxmach Origin Zhejiang, China HS Code 8462299000 Production Capacity 1000PCS/Month

Product Description

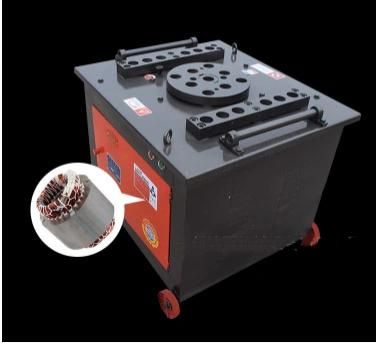

Rebar bender RB-25 electric Rebar bending machine

Product Introduction:
 Rebar bending machine belongs to an improvement of the structure of steel bar bending machine

Principle:

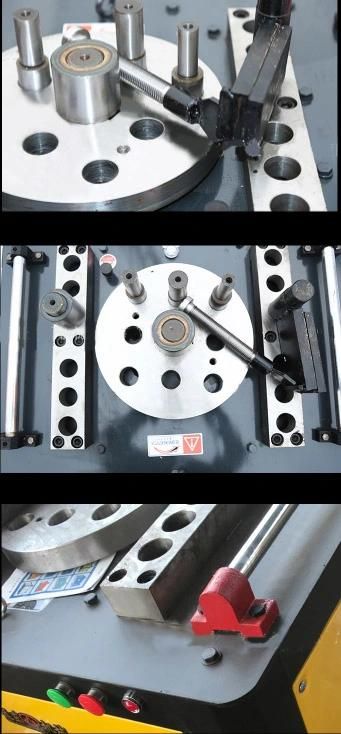

a horizontal working disc rotating on the vertical axis, placing the reinforcing bar in the dotted line position in the figure, the supporting pin is fixed on the machine tool, the center pin and the pressing pin shaft are mounted on the working disc, and the disc will be rotated The steel bars are bent.

Features:
1.Adopts the 10 mm thicken top plate and high rigidity disk of iron,more durable
2.Equirpped with international standard copper motor
3.Equipped with ultra-high hardness accessory and adjustable fender
4.Equipped with stop switch ,the machine can stop immediately ensure the safety of the workers
5.Adopt 16mm thick top plate,high rigidity disk ,adjustable stylobate,the bending angle of more efficient

Parameter:


Model	GW40	GW45	GW50
Dia of bending round steel(mm)	6-40	6-42	6-50
Dia of deformed bar of 2nd degree(mm)	6-32	6-35	6-42
Rotary speed of principle axis(mm)	3-15	3-20	3-25
Motor Power(kw)	3.0	4.0	4.0
Voltage(V)	220/380	220/380	220/380
Frequenc(hz)	50/60	50/60	50/60
NW/GW(KG)	232/248	355/375	385/405
Packing size(mm)	750*700*860	860*860*1100	1100*900*700

Details
