• Model NO.：HG-B60T
• Feeding Side：1 or 2
• Cylinders：Two
• Columns：Four
• Cutting Area：810*1400mm
• Cutting Force：60tons
• Control：by Computer Control, PLC Control
• Automatic Grade：Manual to Automatic
• Suitable for Material：Sponge,Foam,Plastic,Leather,EVA,EPE,PS,PVC,PE etc.
• Transport Package：Plastic Film or Packed in Wooden Cases
• Specification：CE
• Trademark：honggang
• Origin：Guangdong Foshan
• Production Capacity：3000sets,Years

Basic Info.

Model NO. HG-B60T Feeding Side 1 or 2 Cylinders Two Columns Four Cutting Area 810*1400mm Cutting Force 60tons Control by Computer Control, PLC Control Automatic Grade Manual to Automatic Suitable for Material Sponge,Foam,Plastic,Leather,EVA/EPE/PS/PVC/PE etc. Transport Package Plastic Film or Packed in Wooden Cases Specification CE Trademark honggang Origin Guangdong Foshan Production Capacity 3000sets/Years

Product Description

Hg-B60t High Speed Automatic Plastic Packaging Cutting Machine
1.Application:
This plastic cutting machine is very popular in our country,it widely used in the plastics industry.
Use for die cutting plastic disposable blister or foam packaging,such as food container,cup cover,fresh/sea food tray,fruit box,etc.
The customers from all over the world are welcome to make inquiries!

2.Cutting Video:

Hydraulic automatic blister die cutting machine with stacker cutting video:
https://hgcutting.en.made-in-china.com

Hydraulic automatic die cutting machine working for blister cutting video:
https://hgcutting.en.made-in-china.com

More cutting machine video on our youtube page:

https://hgcutting.en.made-in-china.com

3.Features and Advantages

1.controlled by PLC(programmable logic controller),with touching screen,to set and micro-adjust working pressure,cutting depth,feeding speed easier,faster and more precise.
2.double automatic working tables,increases ther output twice or triple.
3.auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure any working area.
4.powered by hydraulic system,slow down when the cutting die touches material,to confirm the precision between upper and bottom for thick materials.
5.central automatic lubrication system,increases machine durability,prolong the working time.

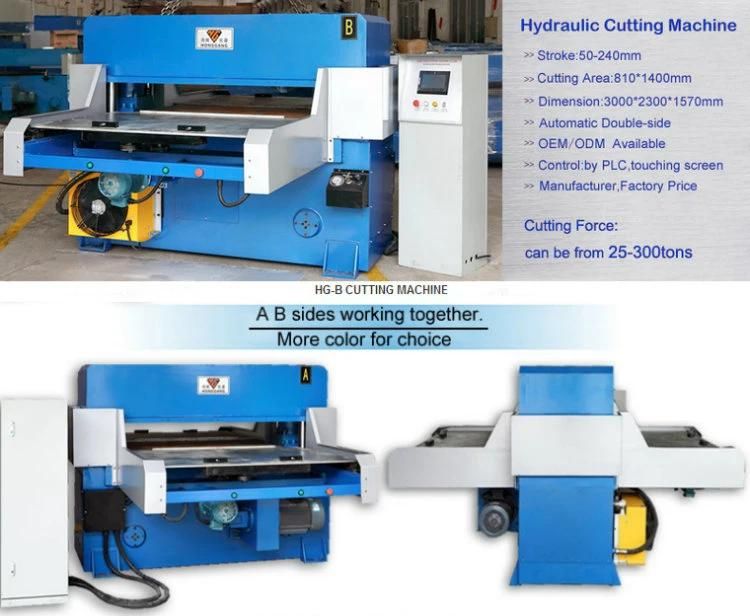

4.Product Specification

Model	Cutting Force	Dimension/(mm)	Cutting Area	Moter	Stroke	Net Weight
HG-B60T	60 Tons	3000*2300*1570	810*1400mm	5.5kw	50-240mm	4500kg
HG-B80T	80 Tons	3000*2300*1570	810*1400mm	7.5kw	50-240mm	5000kg
HG-B100T	100 Tons	3000*2300*1570	810*1400mm	7.5kw	50-240mm	5500kg
HG-B120T	120 Tons	3000*2300*1570	810*1400mm	11kw	50-240mm	6300kg
HG-B150T	150 Tons	3000*2300*1570	810*1400mm	11kw	50-240mm	7000kg

Remark:Cutting force can be from 50 tons to 300tons;cutting area can be (610/710/810/910mm)×(1400/1600/1800mm),etc

5. The Cutting Machine Working Show :

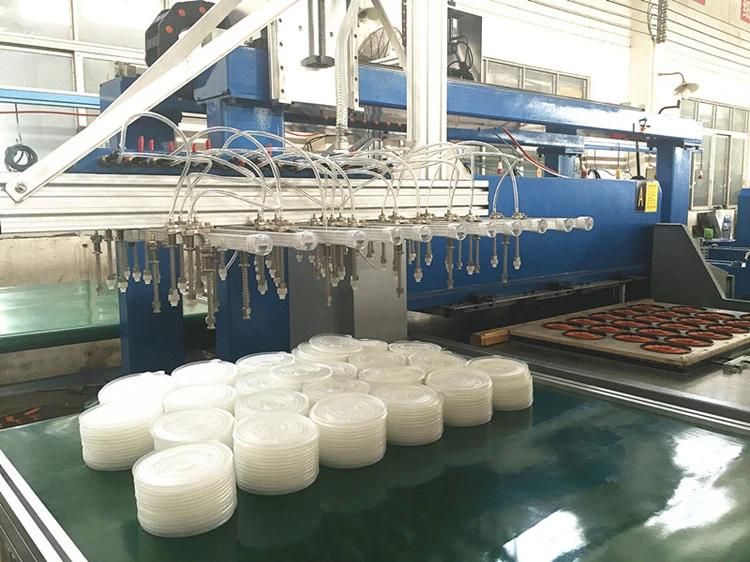

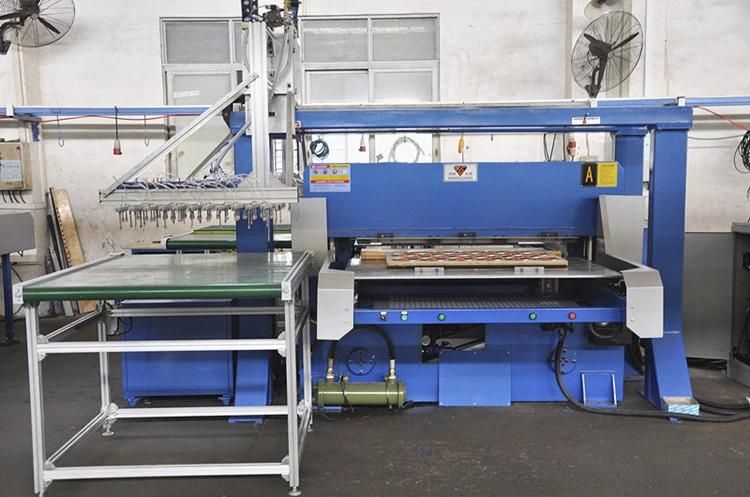

This hydraulic cutting machine has two sets of sucker manipulator,this is our new research and development machine,it can replace manual finishing,it can replace manual finishing.





6. The other style of the cutting machine:

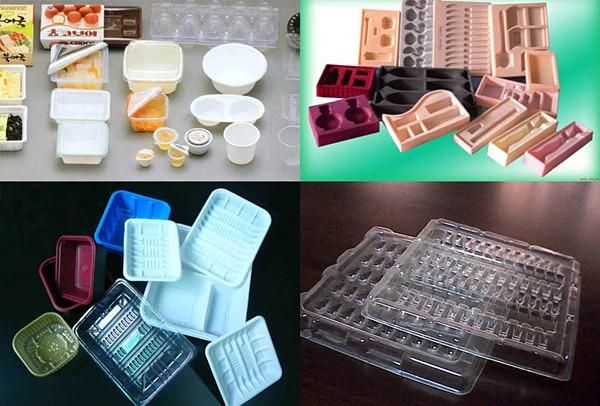

7. Application Materials:

Special for blister and PS foam products such as disposable food container,cup cover,fresh/sea food tray,fruit box,etc.

8. About us:

9. FQA:

1)What's warranty of machine?

12 months WarrantyLife-long maintenance service for machine

2)What's your after-sales service?

Engineer available to serve machines over seas;

Email and calling service in working hour;  24 hours door to door in domestic.

3)Can we test the our material by your machine free?

Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?

Always 1m knife line need about 5 ton pressure.

please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?

Yes, just send your drawing or material.

PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

7)Don't know how many ton you need?

Please contact us!

If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:
