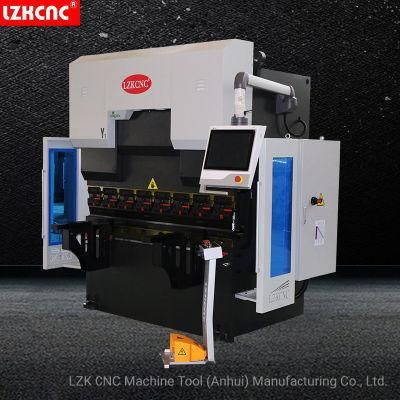

Pure Electric Servo CNC Press Brake Epb-35t1500 with Syntec Controller 6axes
LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.- Warranty：2-year
- Condition：New
Base Info
- Model NO.：EPB-3515
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Press Brake
- System：Lz80t
- Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
- Bending Angle Programmed：Yes
- Max Bending Thickness：3mm
- Max Bending Legnth：2500mm
- Clamping System：Quick Clamp
- Main Motor：Siemens
- Hydraulic Valve：Rexroth
- Weight：2600kg
- Transport Package：20gp
- Specification：1520*1700*2550 mm
- Trademark：LZK
- Origin：China
- HS Code：8462230000
- Production Capacity：100 Sets,Month
- Package size per unit product：2520.00cm * 1700.00cm * 2350.00cm
- Gross weight per unit product：3100.000kg
Description

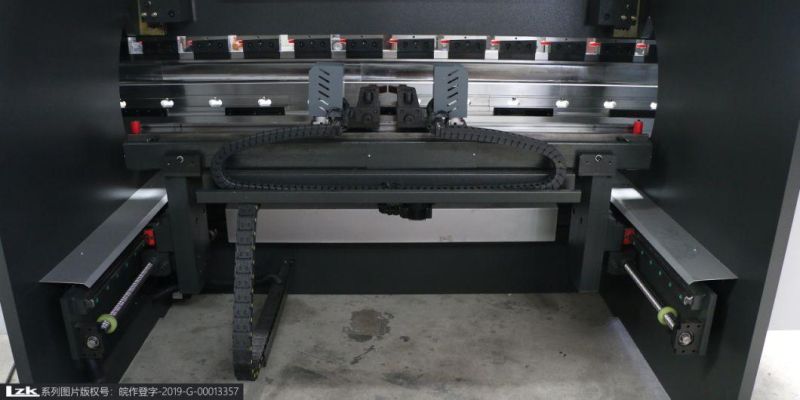

LZK |4 axis precision fast back gauge
Adopt high-precision 4-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.

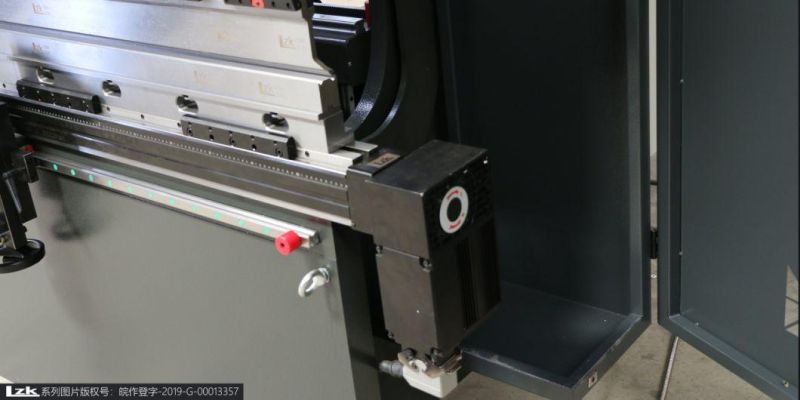

LZK |Electromechanical deflection compensation
It is made of high-strength steel and has a nonlinear wave-slant block structure. It is driven by a motor and can accurately adjust the compensation amount.
EPB series Specs
| Name | Model/Manufacture |
|---|---|
| CNC System | SYNTEC(10T-40T) LZ80T(65T-100T) |
| Y axes servo motor | SYNTEC SNAYO |
| Backgauge servo motor | SYNTEC Fuji,Japan |
| Compensation | Mechanical compensation(Standard equipment for models of 2,500 m m and above) |
| Electrics | France Electrics |
| Pedal Switch | South Korea KACON |
| mold | Standard 202 Frame knife, Double V same core / single V lower mode |
