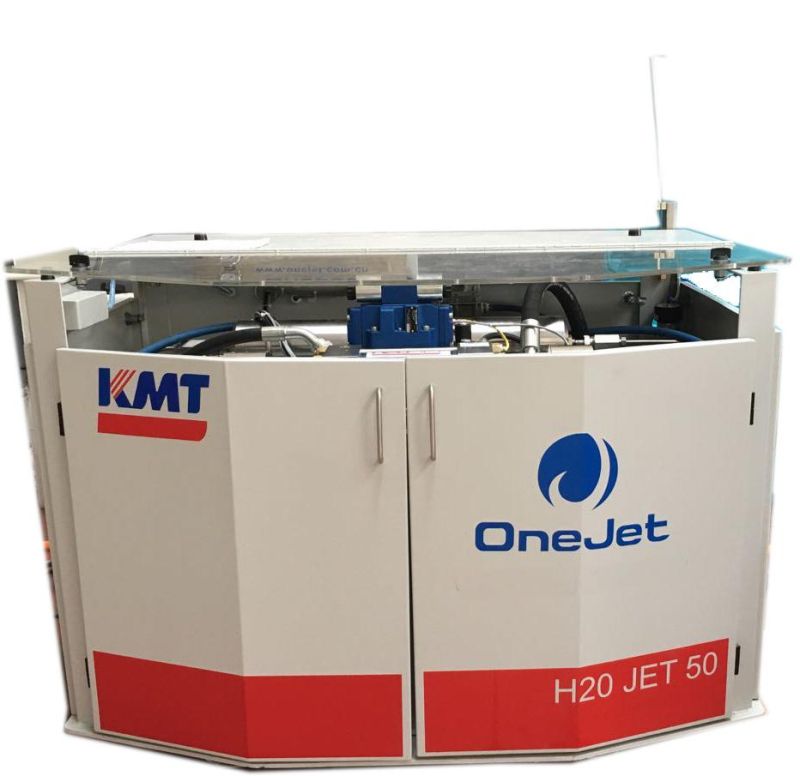

H2O Jet50 Pump for Onejet Waterjet Cutting Machine

ONEJET WATERJET CO.,LTD
  • After-sales Service：7X24h
  • Warranty：One Year
  • Certification：CE
  • Condition：New
  • Control：Automatic
  • Application：Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Slabs

Base Info

  • Model NO.：H2O JET50
  • Power Source：Electric
  • Style：High Pressure Pump
  • Type：Intensifier
  • Maxi Bearing：4137bar(60000psi)400MPa
  • Noise：75dB
  • Cooling Way：Air or Water
  • Start：Soft -Starter
  • PLC：Omoron
  • Transport Package：Carton
  • Specification：50HP
  • Trademark：ONEJET
  • Origin：Foshan, China
  • HS Code：8456500000
  • Production Capacity：10 Sets Per Month

Description

Overview Product Description

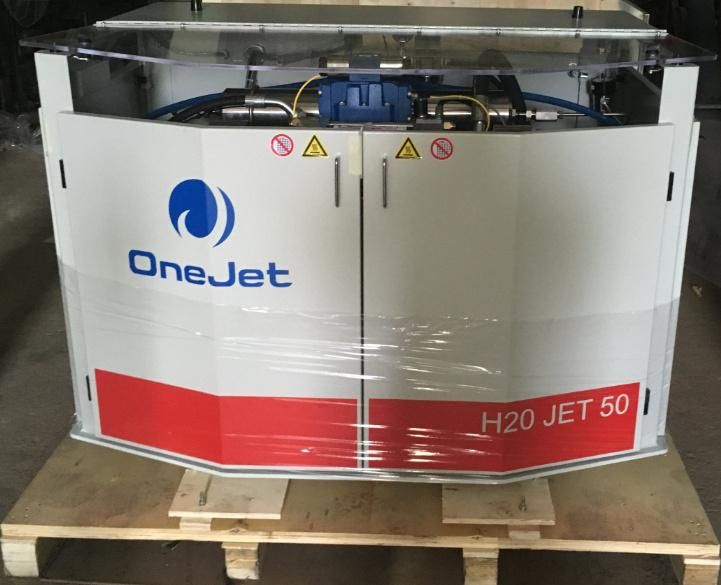

Detailed Photos

H2O Jet50 Pump for Onejet Waterjet Cutting MachineH2O Jet50 Pump for Onejet Waterjet Cutting MachineH2O Jet50 Pump for Onejet Waterjet Cutting MachineH2O Jet50 Pump for Onejet Waterjet Cutting Machine

Product ParametersSize:1950(L)X1050(W)X1450(H)mmWeight:1050kgsPower:37KW/50HP   380/415V, 3 phases,50HZ or customizedMaxi bearing pressure:4137bar/60000PSIStable working:300-360mpaMaxi flow rate:3.7L/minMaxi orifice:0.35mm /013Stroke times:≈73 times/min at 3200barNoise:≤78dBFan cooling flow rate:450L/minAccumulator:1.02LFull load:85AEnergy consumption:≈24kw/h at 320mpa non stop workingIntensifier:Flow type intensifierPressure:Low/High pressure design for cutting breakable materialsAlarm protetcion:low/no inlet water, over load, reversing fault, over pressure,  over stroke, over oil temperature, E-stop.Electrical parts:Siemens,Omron, Delix and top chinese brandControl:Local and remoteDisplay:Touch ScreenLanguage:Chinese and English

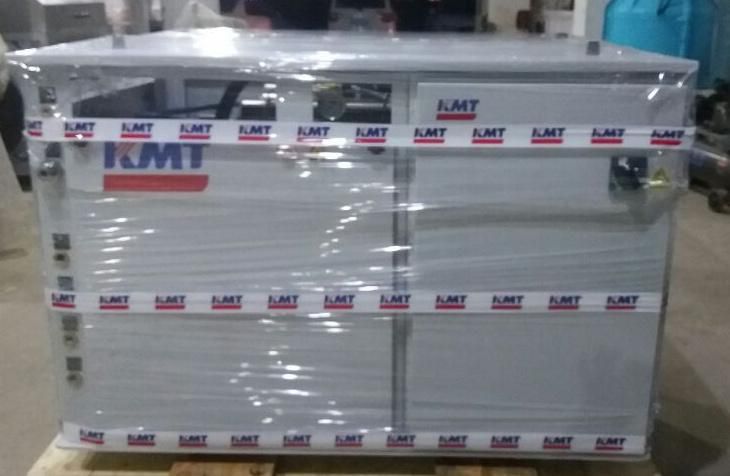

Packaging & Shipping

H2O Jet50 Pump for Onejet Waterjet Cutting Machine

Company Profile

H2O Jet50 Pump for Onejet Waterjet Cutting Machine

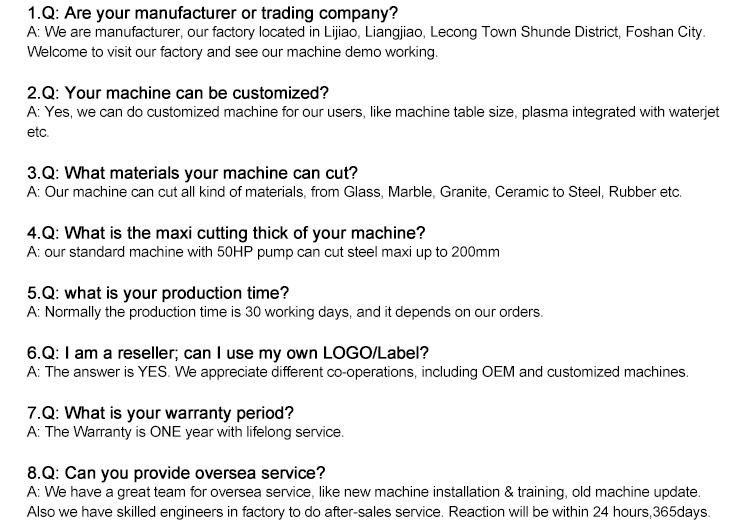

FAQ

H2O Jet50 Pump for Onejet Waterjet Cutting Machine
