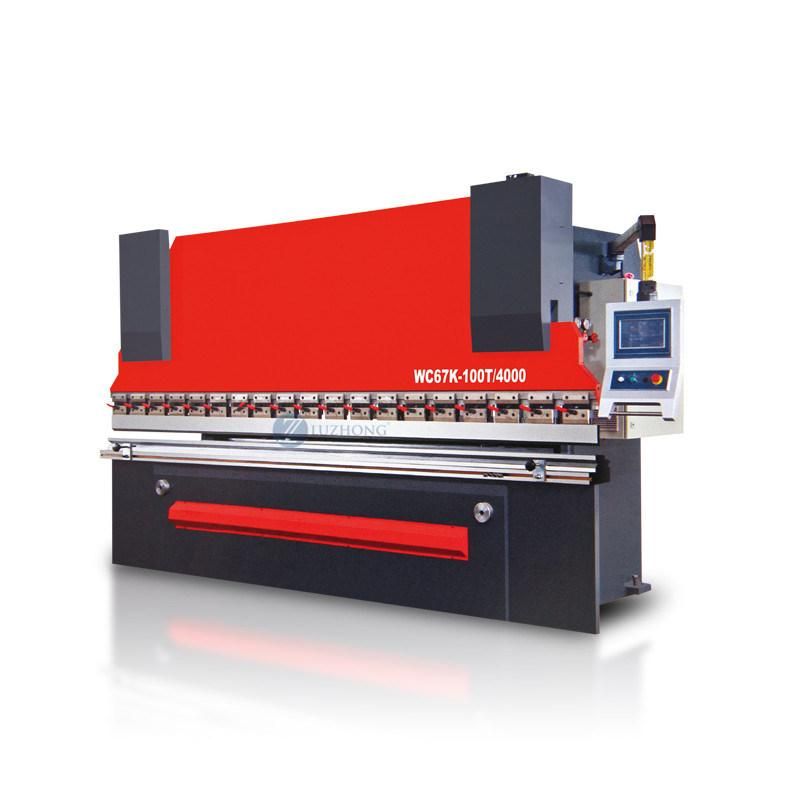

metal bending machines WC67Y-100T CNC machine bending
Shandong Luzhong Machine Tool Co., Ltd.- Warranty:1-year
- Condition:New
Base Info
- Model NO.:WC67Y
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type:Press Brake
- Product Name:metal bending machines WC67Y-100T CNC machine bend
- Modle:100T-2500
- Nominal force:1000
- Length of working table:2500
- Distance between columns:1900
- Throat depth:320
- Max. slide stroke:120
- Max. shut height:370
- Travel times:15
- Main motor power:7.5
- Max. hydraulic pressure:25
- Outline dimensions:2500X1600X2400mm
- Transport Package:Plywood Case
- Specification:Bending machine
- Trademark:Luzhong Machine
- Origin:China
- HS Code:8462219000
- Production Capacity:200pieces,Months
Description
Basic Info.
Model NO. WC67Y Certification RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL Automation Automatic Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Press Brake Product Name metal bending machines WC67Y-100T CNC machine bend Modle 100T-2500 Nominal force 1000 Length of working table 2500 Distance between columns 1900 Throat depth 320 Max. slide stroke 120 Max. shut height 370 Travel times 15 Main motor power 7.5 Max. hydraulic pressure 25 Outline dimensions 2500X1600X2400mm Transport Package Plywood Case Specification Bending machine Trademark Luzhong Machine Origin China HS Code 8462219000 Production Capacity 200pieces/MonthsProduct Description
metal bending machines WC67Y-100T CNC machine bendingProduct main technical parameters:
Specification | Nominal force | Length of working table | Distance between columns | Throat depth | Max. slide stroke | Max. shut height | Travel times | Main motor power | Max. hydraulic pressure | Outline dimensions |
WC67K | KN | mm | mm | mm | mm | mm | Mm-1 | KW | MPa | mm |
30T-1600 | 300 | 1600 | 1240 | 150 | 85 | 180 | 20 | 3 | 16 | 1620x800x1600 |
30T-2000 | 300 | 2000 | 1640 | 150 | 85 | 180 | 20 | 3 | 16 | 2020x800x1600 |
40T-2500 | 400 | 2500 | 2040 | 200 | 110 | 340 | 10 | 4 | 20.5 | 2500x1300x2000 |
50T-2500 | 500 | 2500 | 2040 | 200 | 110 | 340 | 10 | 4 | 20.5 | 2500x1500x2120 |
63T-2500 | 630 | 2500 | 2040 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 2500x1500x2250 |
63T-3200 | 630 | 3200 | 2500 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 3200x1500x2300 |
80T-2500 | 800 | 2500 | 2040 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 2500x1500x2250 |
80T-3200 | 800 | 3200 | 2500 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 3200x1500x2300 |
100T-2500 | 1000 | 2500 | 1900 | 320 | 120 | 370 | 15 | 7.5 | 25 | 2500x1600x2400 |
100T-3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 15 | 7.5 | 25 | 3200x1600x2500 |
100T-4000 | 1000 | 4000 | 3200 | 320 | 120 | 370 | 15 | 7.5 | 25 | 4000x1600x2500 |
125T-2500 | 1250 | 2500 | 1900 | 320 | 120 | 370 | 12 | 7.5 | 25 | 2500x1600x2400 |
125T-3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 12 | 7.5 | 25 | 3200x1600x2600 |
125T-4000 | 1250 | 4000 | 3200 | 320 | 120 | 370 | 12 | 7.5 | 25 | 4000x1600x2600 |
160T-2500 | 1600 | 2500 | 1850 | 320 | 200 | 460 | 10 | 11 | 25 | 2500x1800x2590 |
160T-3200 | 1600 | 3200 | 2460 | 320 | 200 | 460 | 10 | 11 | 25 | 3200x1800x2690 |
160T-4000 | 1600 | 4000 | 3260 | 320 | 200 | 460 | 10 | 11 | 25 | 4000x1800x2690 |
160T-6000 | 1600 | 6000 | 4800 | 320 | 200 | 460 | 10 | 11 | 25 | 6000x1900x3200 |
200T-3200 | 2000 | 3200 | 2460 | 320 | 200 | 460 | 10 | 15 | 25 | 3300x1800x2690 |
200T-4000 | 2000 | 4000 | 3260 | 320 | 200 | 460 | 10 | 15 | 25 | 4000x1800x2690 |
200T-6000 | 2000 | 6000 | 4800 | 320 | 200 | 460 | 10 | 15 | 25 | 6000x2070x3300 |
250T-3200 | 2500 | 3200 | 2400 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 3300x2140x3250 |
250T-4000 | 2500 | 4000 | 3200 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 4000x2140x3250 |
250T-6000 | 2500 | 6000 | 4800 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 6000x2140x3400 |
300T-3200 | 3000 | 3200 | 2400 | 400 | 250 | 530 | 10 | 22 | 20.5 | 3300x2100x3100 |
300T-4000 | 3000 | 4000 | 3200 | 400 | 250 | 530 | 10 | 22 | 20.5 | 4000x2140x3250 |
300T-6000 | 3000 | 6000 | 4800 | 400 | 250 | 530 | 10 | 22 | 20.5 | 6000x2100x3540 |
400T-3200 | 4000 | 3200 | 2600 | 500 | 250 | 540 | 10 | 30 | 20.5 | 3200x2500x3060 |
400T-4000 | 4000 | 4000 | 3200 | 500 | 250 | 540 | 10 | 30 | 20.5 | 4000x2500x3310 |
400T-6000 | 4000 | 6000 | 4800 | 500 | 250 | 540 | 10 | 30 | 20.5 | 6000x2500x4100 |
400T-7000 | 4000 | 7000 | 5800 | 650 | 250 | 850 | 8 | 30 | 20.5 | 7000x2500x4350 |
500T-6000 | 5000 | 6000 | 4800 | 500 | 320 | 590 | 10 | 45 | 20.5 | 6100x2500x4360 |
500T-8000 | 5000 | 8000 | 5800 | 650 | 320 | 590 | 8 | 45 | 20.5 | 7000x2500x4350 |
800T-6000 | 8000 | 6000 | 4760 | 500 | 400 | 920 | 8 | 55 | 20.5 | 6100x4500x6000 |
