High quaity metal QC12Y Series Hydraulic Swing Beam Shearing Machine
Shandong Luzhong Machine Tool Co., Ltd.- Automation：Manual
- Certification：CE, ISO 9001:2008
- Condition：New
- Warranty：1 Year
- Name：High quaity metal QC12Y Series Hydraulic Swing Bea
- Main motor power：5.5
Base Info
- Model NO.：QC12Y Series
- Material strength：450
- Plate width：2500
- Transport Package：Plywood Case
- Specification：3120X1450X1550mm
- Trademark：Luzhong Machine Tool
- Origin：China
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. QC12Y Series Material strength 450 Plate width 2500 Transport Package Plywood Case Specification 3120X1450X1550mm Trademark Luzhong Machine Tool Origin China Production Capacity 50 Sets Per MonthProduct Description

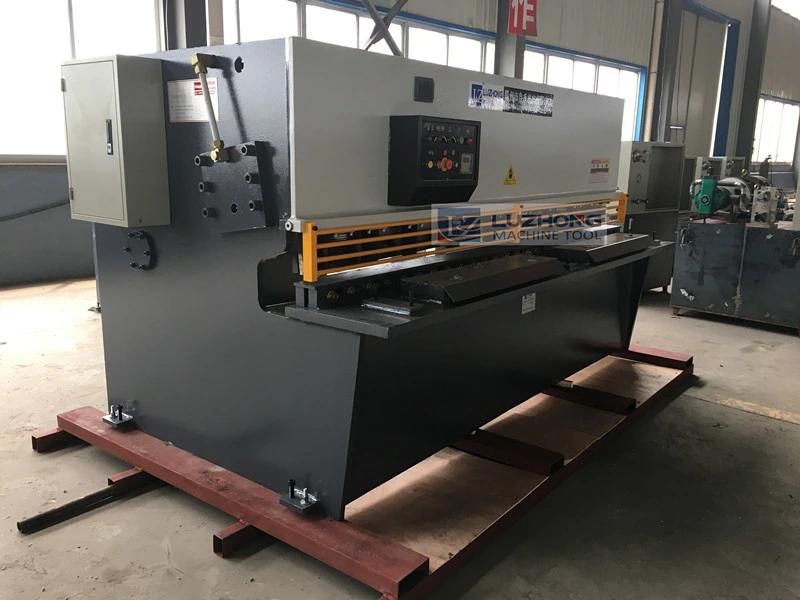

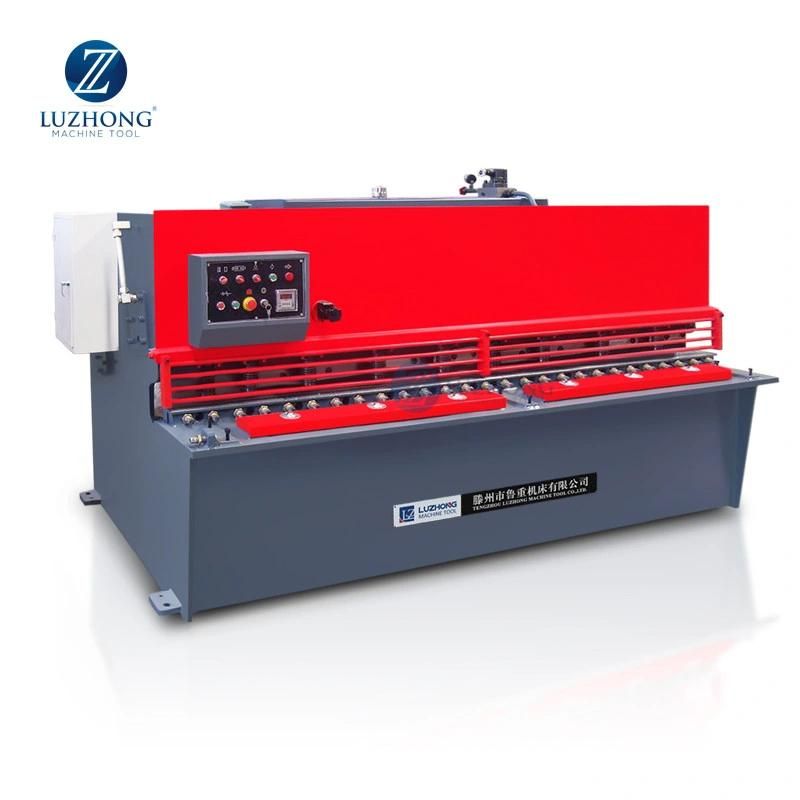

High quaity metal QC12Y Series Hydraulic Swing Beam Shearing MachineProduct picture:
Technical Specifications:
| Model | Plate thickness | Plate width | Material strength | Shear angle | Back gauge stroke | Travel times | Between column | Main motor power | Outline dimension |
| QC12Y | mm | mm | KN/cm | ° | mm | Mm-1 | mm | kw | mm |
| 4X2500 | 4 | 2500 | 450 | 1°30' | 20-500 | 18 | 2700 | 5.5 | 3120X1450X1550 |
| 4X3200 | 4 | 3200 | 450 | 1°30' | 20-550 | 12 | 3410 | 5.5 | 3520X1560X1670 |
| 4X4000 | 4 | 4000 | 450 | 1°30' | 20-550 | 12 | 3410 | 5.5 | 4340X1620X1660 |
| 4X6000 | 4 | 6000 | 450 | 1°30' | 20-800 | 8 | 6270 | 7.5 | 6460X2100X3100 |
| 6X2500 | 6 | 2500 | 450 | 1°30' | 20-550 | 18 | 2720 | 7.5 | 3000X1600X1610 |
| 6X3200 | 6 | 3200 | 450 | 1°30' | 20-550 | 15 | 3420 | 7.5 | 3840X1700X1680 |
| 6X4000 | 6 | 4000 | 450 | 1°30' | 20-550 | 15 | 4220 | 7.5 | 4300X1610X1680 |
| 6X6000 | 6 | 6000 | 450 | 1°30' | 20-800 | 8 | 6280 | 11 | 6500X2200X2200 |
| 8X2500 | 8 | 2500 | 450 | 1°30' | 20-550 | 18 | 2720 | 7.5 | 3120X1700X1650 |
| 8X3200 | 8 | 3200 | 450 | 1°30' | 20-550 | 12 | 3420 | 7.5 | 3840X1700X1680 |
| 8X4000 | 8 | 4000 | 450 | 1°30' | 20-500 | 8 | 4240 | 11 | 4750X1750X1850 |
| 8X6000 | 8 | 6000 | 450 | 1°30' | 20-800 | 6 | 6350 | 15 | 6530X2200X2020 |
| 10X2500 | 10 | 2500 | 450 | 1°30' | 20-500 | 10 | 2720 | 15 | 3150X1850X1900 |
| 10X3200 | 10 | 3200 | 450 | 1°30' | 20-500 | 8 | 3420 | 15 | 3900X1800X1700 |
| 10X4000 | 10 | 4000 | 450 | 1°30' | 20-500 | 8 | 4260 | 15 | 4730X2200X2100 |
| 10X7000 | 10 | 7000 | 450 | 1°30' | 20-800 | 5 | 7365 | 18.5 | 7750X2620X2320 |
| 12X2500 | 12 | 2500 | 450 | 2° | 20-800 | 10 | 2860 | 15 | 3380X1900X1900 |
| 12X3200 | 12 | 3200 | 450 | 2° | 20-800 | 10 | 3480 | 15 | 3900X2100X1960 |
| 12X4000 | 12 | 4000 | 450 | 1°40' | 20-800 | 8 | 4290 | 15 | 4720X2100X2020 |
| 12X6000 | 12 | 6000 | 450 | 1°40' | 20-1000 | 8 | 6250 | 18.5 | 6850X2500X2320 |
| 12X8000 | 12 | 8000 | 450 | 1°40' | 20-1000 | 5 | 8270 | 22 | 8700X2800X2600 |
| 16X2500 | 16 | 2500 | 450 | 2° | 20-800 | 8 | 2860 | 18.5 | 3360X2100X2000 |
| 16X3200 | 16 | 3200 | 450 | 2°30' | 20-800 | 8 | 3480 | 18.5 | 3960X2100X2050 |
| 16X4000 | 16 | 4000 | 450 | 2°30' | 20-800 | 7 | 4280 | 18.5 | 4780X2200X2100 |
| 16X6000 | 16 | 6000 | 450 | 2° | 20-1000 | 5 | 6270 | 22 | 6900X2700X2500 |
| 20X2500 | 20 | 2500 | 450 | 3° | 20-800 | 6 | 2830 | 22 | 3570X2200X2200 |
| 20X3200 | 20 | 3200 | 450 | 2°30' | 20-800 | 6 | 3500 | 22 | 4150X2350X2300 |
| 20X4000 | 20 | 4000 | 450 | 2°30' | 20-800 | 5 | 4300 | 22 | 4980X2400X2400 |
| 20X6000 | 20 | 6000 | 450 | 3° | 20-1000 | 4 | 6270 | 30 | 6900X3000X3000 |
| 25X2500 | 25 | 2500 | 450 | 3° | 20-1000 | 5 | 2820 | 30 | 3400X2400X2300 |
