Cutting & Fold-bend Machine

200ton 3 Mtr Metalworking Bending Machines Bending Machines

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year

Base Info

  • Model NO.:HPB 200T4000
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type:Press Brake
  • CNC System:Delem Da58t
  • Axes:Y1, Y2, R and Automatic Crowning
  • Max Bending Length:4000mm
  • Max Bending Thickness:10mm for 4m Sheet
  • Weight:13000kg
  • Backgauge:600mm Distance, Ball Screw and Linear Guide Rail
  • Main Motor:Servo Motor
  • Main Motor Power:15kw
  • Main Electrical Components:Schneider
  • Hydraulic System:Bosch-Rexroth
  • Servo Drive:Japan Yaskawa
  • Grating Ruler:Italy Givi
  • Transport Package:20ot
  • Specification:4600X1950X3010mm
  • Trademark:LZK
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month
  • Package size per unit product:4100.00cm * 1700.00cm * 2850.00cm
  • Gross weight per unit product:15500.000kg

Description

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.

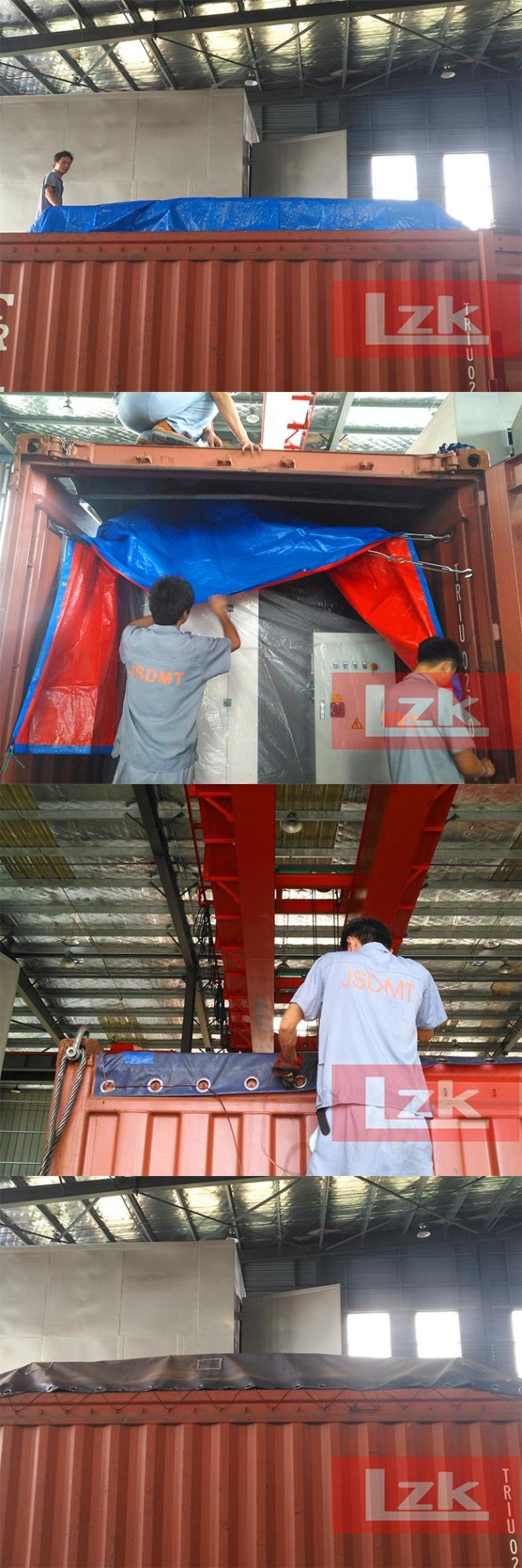

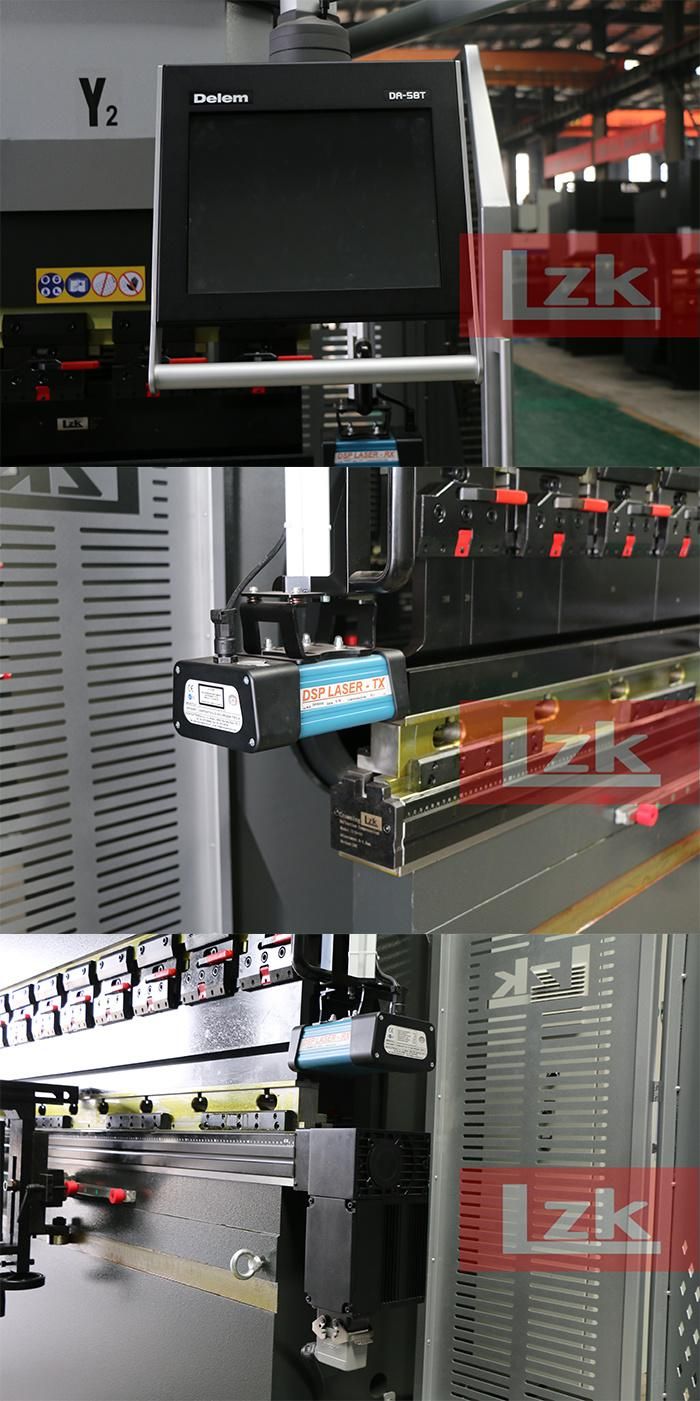

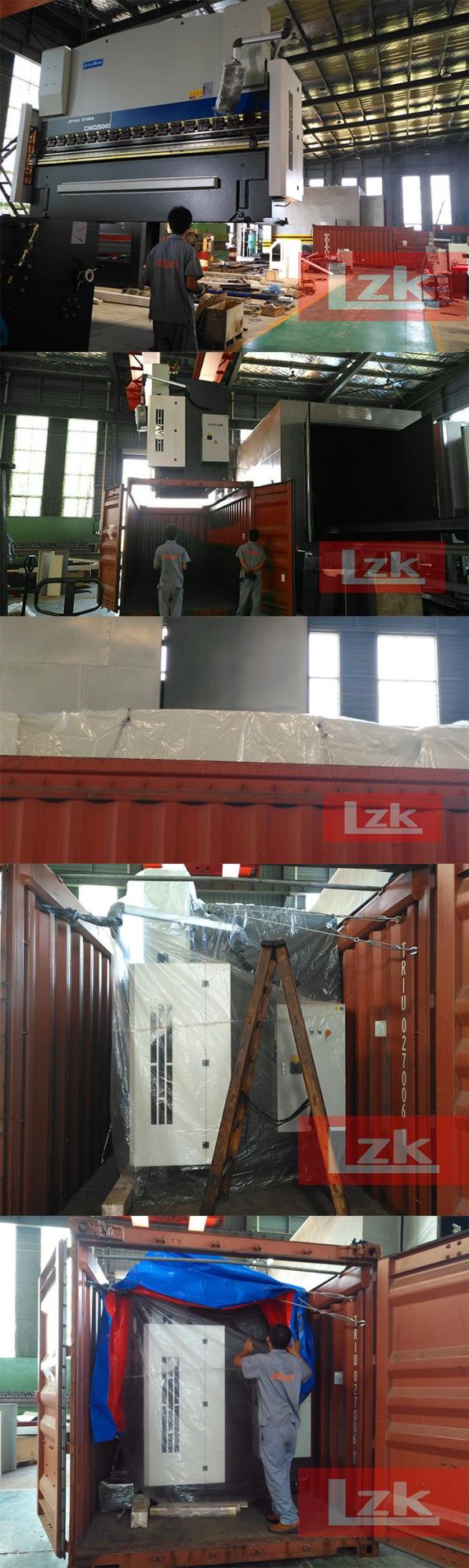

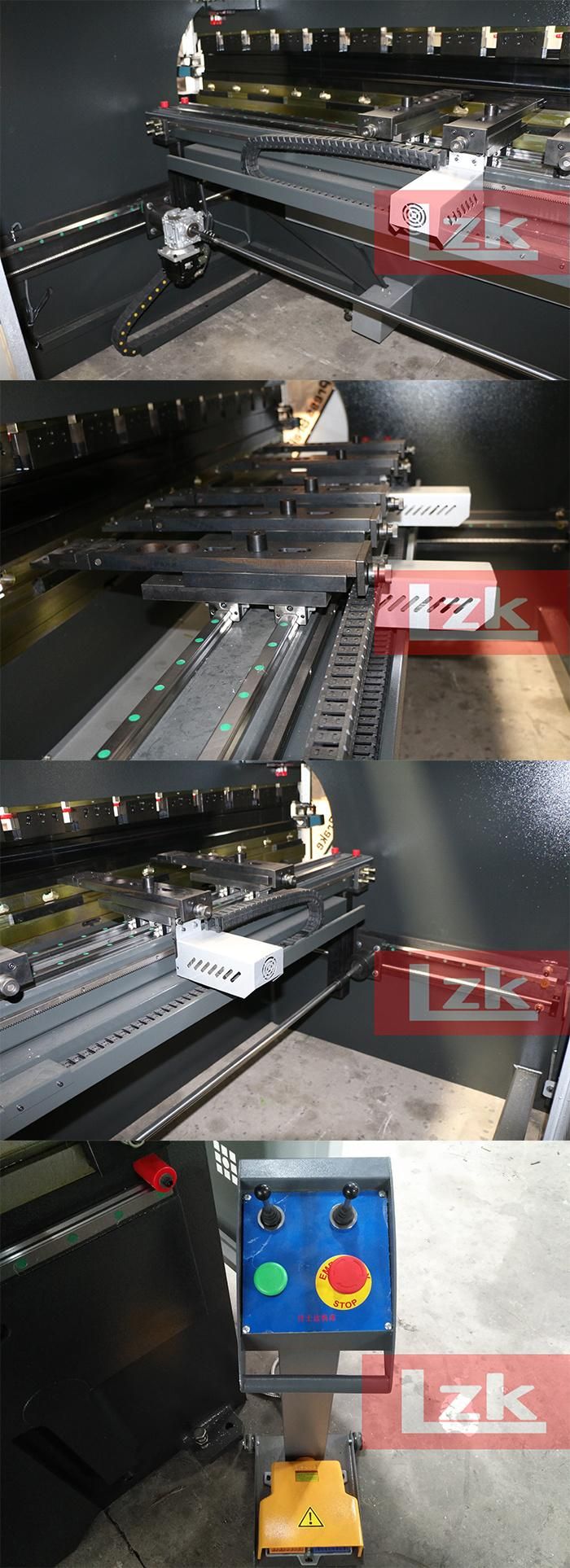

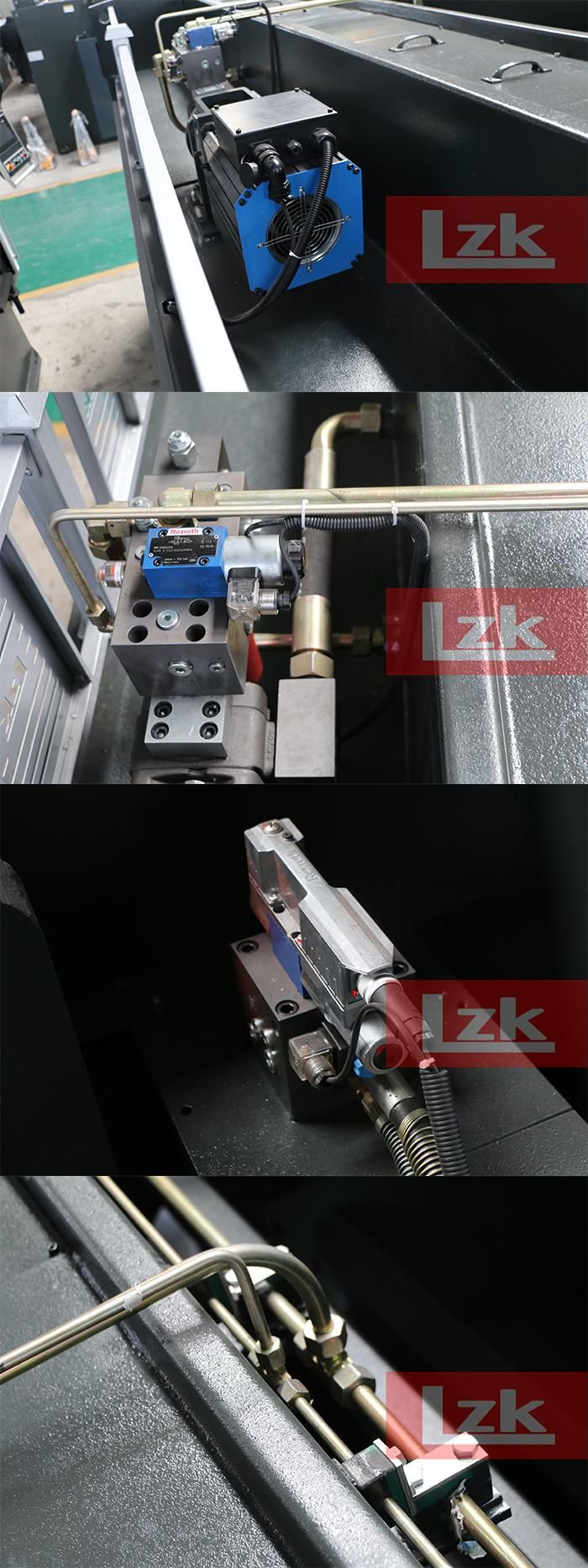

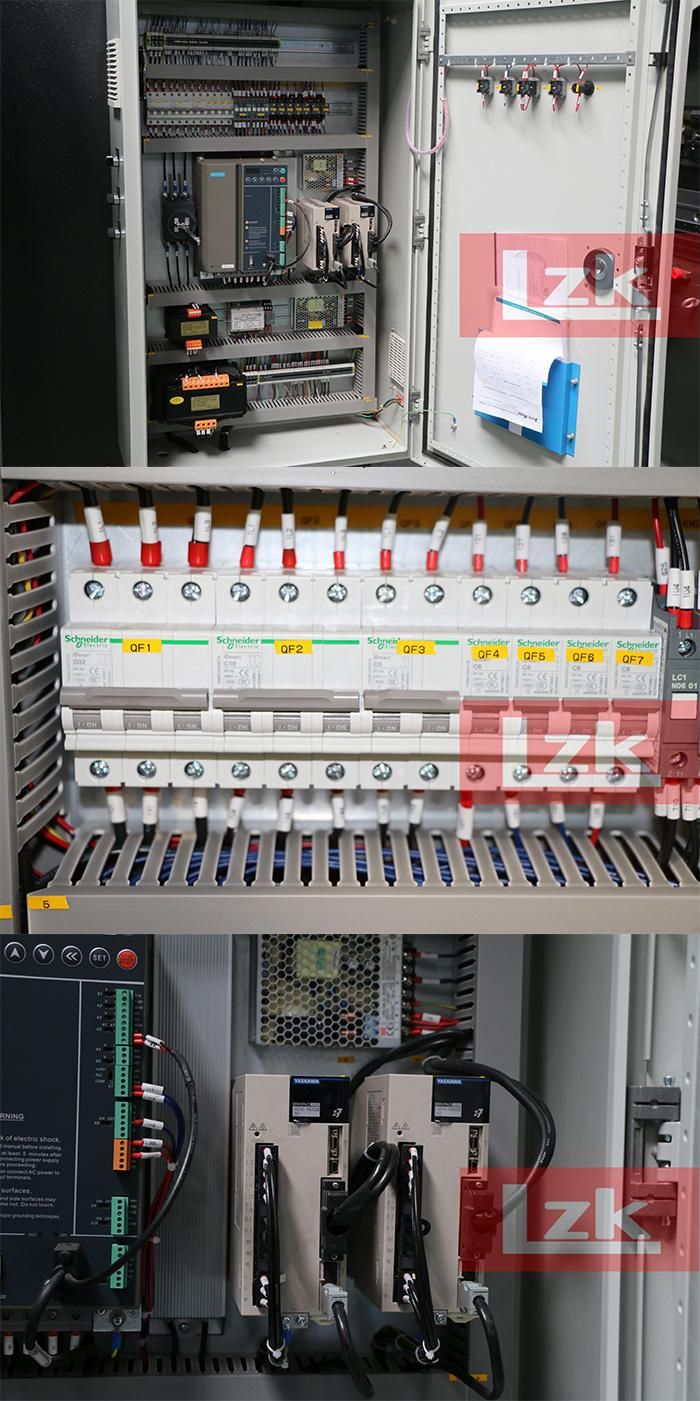

Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.200ton 3 Mtr Metalworking Bending Machines Bending MachinesDELEM DA58T CNC control systemItaly DSP Laser ProtectionAutomatic crowning table for high bending straightness200ton 3 Mtr Metalworking Bending Machines Bending MachinesSliding Front Support ArmsQuick Calmp, Easy Tool Changing. Overall quenching process tool, high hardness and good wear resistance, with material of 42CrMoItaly GIVI Grating Ruler 200ton 3 Mtr Metalworking Bending Machines Bending MachinesMain Schneider Electrics ComponentsJapan YASKAWA Servo Drive200ton 3 Mtr Metalworking Bending Machines Bending MachinesBackgauge with Servo MotorDouble Guide RailsZ1, Z2 axes are electrically controlled by the two black handle on the foot pedal 200ton 3 Mtr Metalworking Bending Machines Bending MachinesEnergy saving type Servo Main Motor maintains high speed, long life and accuracyBosch Rexroth Hydraulic SystemNice Pipe ConnectionMachine loading process with 20OT
200ton 3 Mtr Metalworking Bending Machines Bending Machines
200ton 3 Mtr Metalworking Bending Machines Bending Machines



Our press brakes work well in customer's workshop

200ton 3 Mtr Metalworking Bending Machines Bending MachinesGerman Customer200ton 3 Mtr Metalworking Bending Machines Bending MachinesRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection
