• Model NO.：HCT-1245WZ
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Oil tempered wire
• Type：Cnc Bending Machine
• Wire Size Range：1.2-4.5mm
• Total Axis：12 Axis
• Servo Motor Brand：Yaskawa
• Feeding Roller Pairs：3 Pairs
• Max Outside Diameter：120mm
• Spring Index：4
• Max Feeding Speed：120m,Min
• Weight：5000kg
• Quill Motor：1.3kw
• Forming Motor：1.8kw*8
• Feeding Motor：4.4kw
• Spinner Motor：1.0kw
• Dimension：L2700mm*W2000mm*H1900mm
• Packing dimension-Machine：L3300*W2200*H2100
• Packing Dimension-Wire decoiler：L1500*W1300*H1000
• Transport Package：Vacuum Packaging
• Specification：L2700mm*W2000*H1900mm
• Trademark：WECOIL
• Origin：China
• HS Code：8463300000
• Production Capacity：500 Sets

Basic Info.

Model NO. HCT-1245WZ Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Oil tempered wire Type Cnc Bending Machine Wire Size Range 1.2-4.5mm Total Axis 12 Axis Servo Motor Brand Yaskawa Feeding Roller Pairs 3 Pairs Max Outside Diameter 120mm Spring Index 4 Max Feeding Speed 120m/Min Weight 5000kg Quill Motor 1.3kw Forming Motor 1.8kw*8 Feeding Motor 4.4kw Spinner Motor 1.0kw Dimension L2700mm*W2000mm*H1900mm Packing dimension-Machine L3300*W2200*H2100 Packing Dimension-Wire decoiler L1500*W1300*H1000 Transport Package Vacuum Packaging Specification L2700mm*W2000*H1900mm Trademark WECOIL Origin China HS Code 8463300000 Production Capacity 500 Sets

Product Description

WECOIL Spring Machinery--Professional for CNC Spring Machine over 30 years, the leader for CNC Spring Machine Industry.

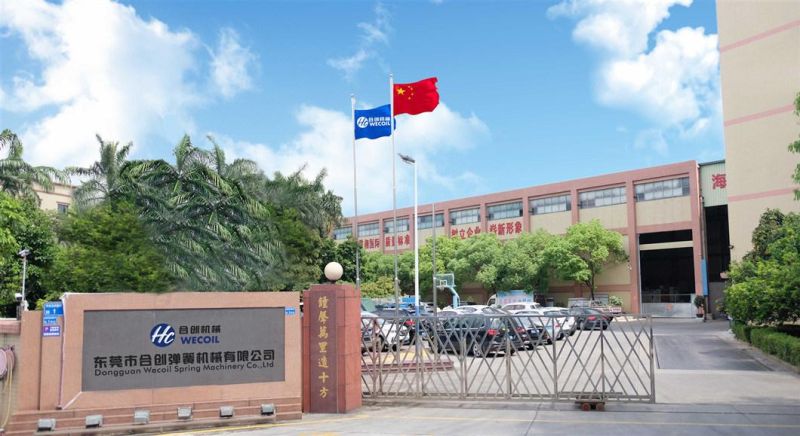

Company Profile:

Wecoil (Dongguan Wecoil Spring Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic Wire Feeding machine, the wire size covers 0.15mm to 20.0mm.

WECOIl Advantanges:

1. The founder Mr. Lau has 34 years experience in CNC Spring Machinery Industry since 1986.

2. Over 20 different types of CNC Spring Coiling Machine, CNC Spring Forming Machine, CNC Versatile Spring Machine to fullfil clients with more choices.

3. 2000m² large production floor to guarantee enough inventory.

4. Adopt the most widely used Taiwan Hust Controller and Japan Sanyo/Yaskawa Motor and high-end precision bearings such as NSK/NTN/IKO.

5. All the workers, Assembly Team, Electrical Team, Spring Testing Team, Sales team, even the Packaging  Personnel are with at least 7 years experience in Spring Machinery Industry which guarantee our machine with high performance.

HCT-1245WZ--Machine Introduction:

1.HCT-1245WZ 12 axes CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Japan Servo Motors to control the feeding system and Cam system synchronously. It is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, Magazine spring, Spiral spring and any kind wire forms.

2. It is designed with no rocker arm and camless, the slide base is separately controlled by eight Servo Motors, There are total 12 axis, 8pcs slider axis (the eight sliders are controlled separately by eight Servo Motors), 1pc Wire Feeding Axis, 1pc Quill rotating Axis, 1pc Wire Rotation Axis and 1pc Spinner Axis.

3. It's with wire rotation function, so it can rotate at 360 degrees and it's convnient to make the complex angles and hooks with short time.

4. It's optional with hydraulic scissor, so it's easy to cut the big wire and greatly reduce the damages to the quill and machine.

5. It's optional with Pneumatic Front Safety Door, which can greatly increase the safety.

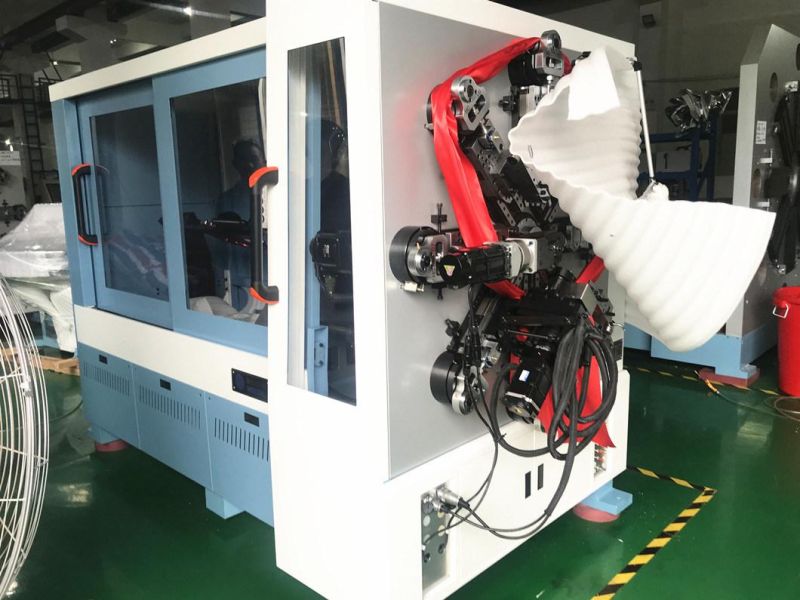

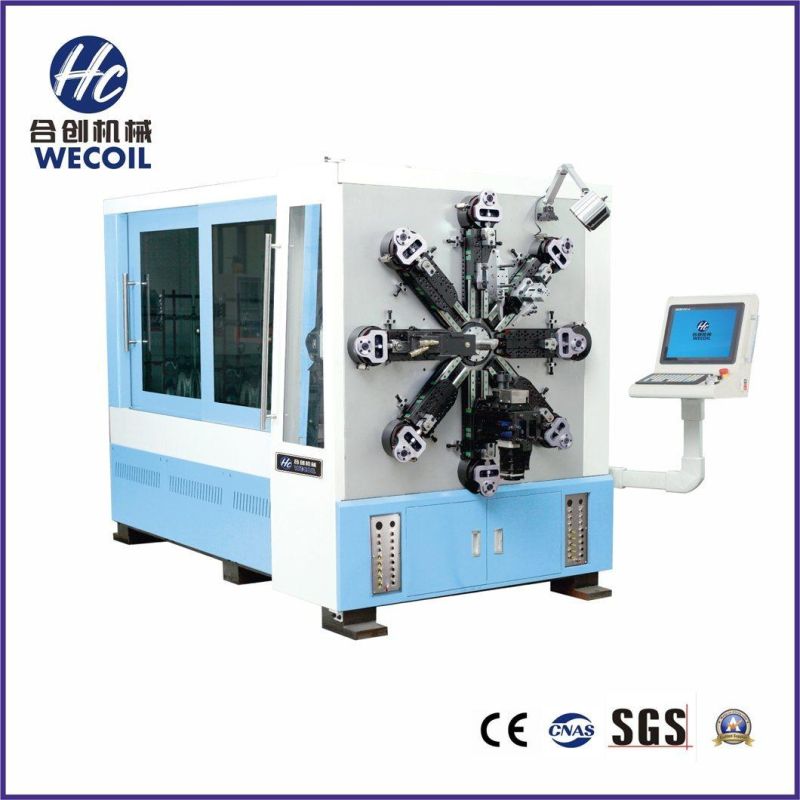

HCT-1245WZ--Machine Photo and outlook

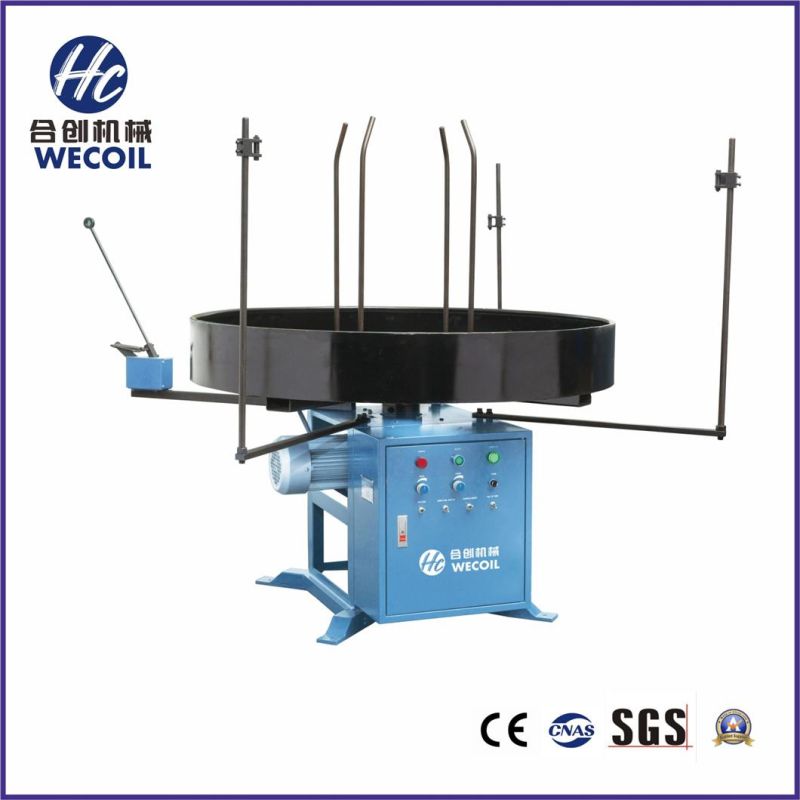

Related Automatic Wire feeding machine HCD-400 (It can also optional with larger one)

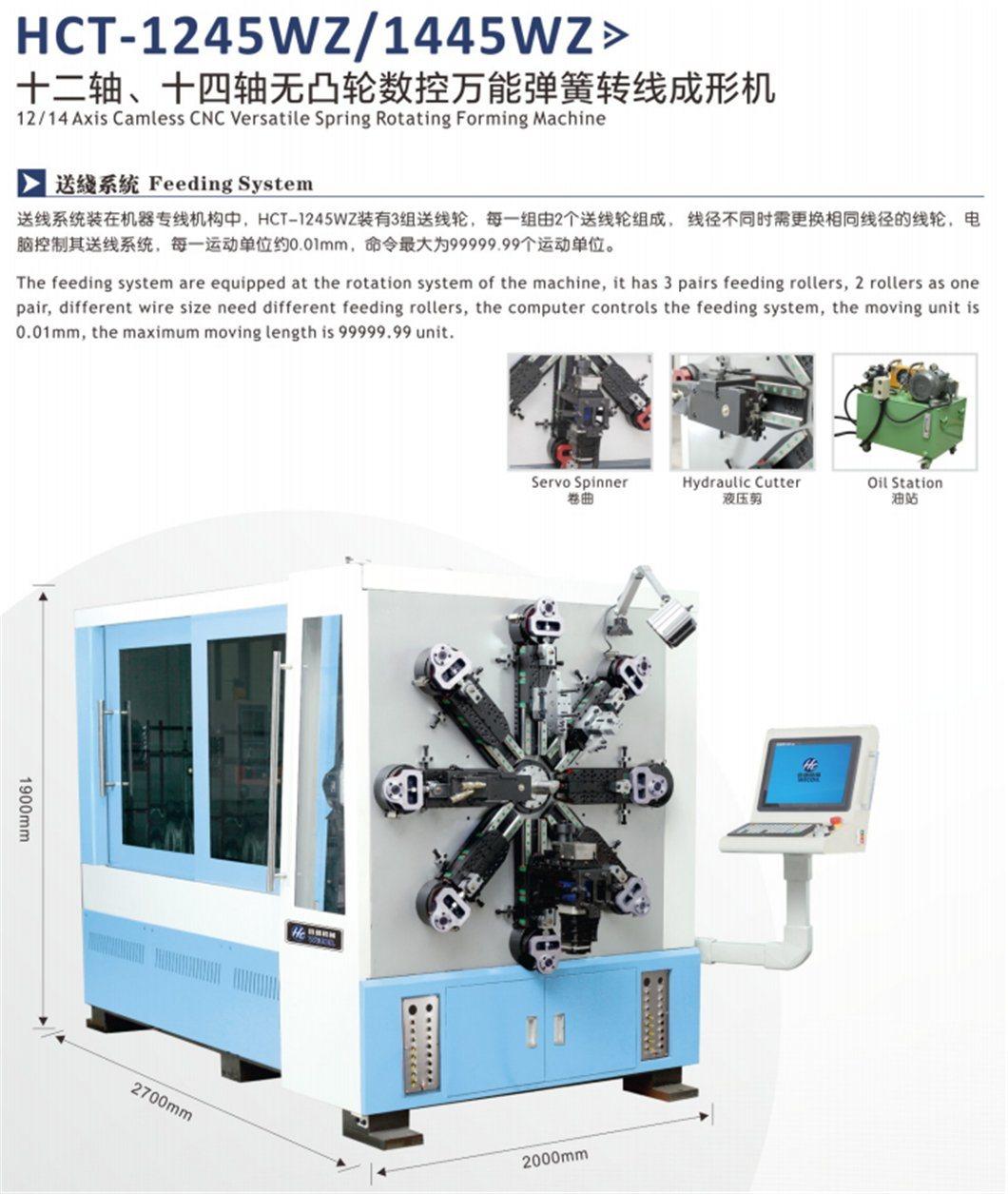

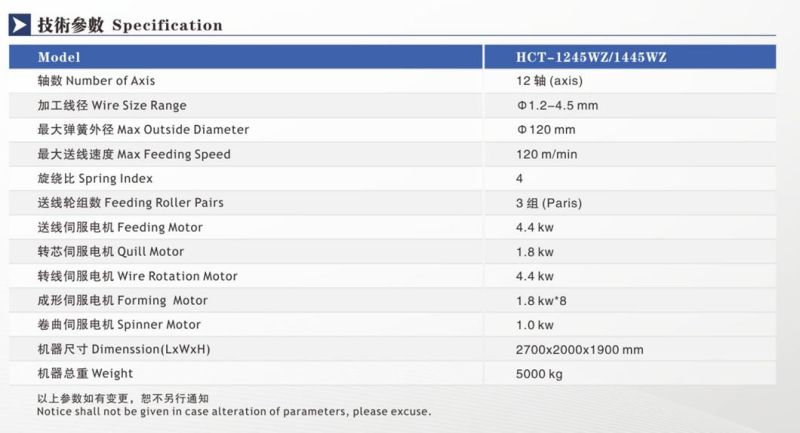

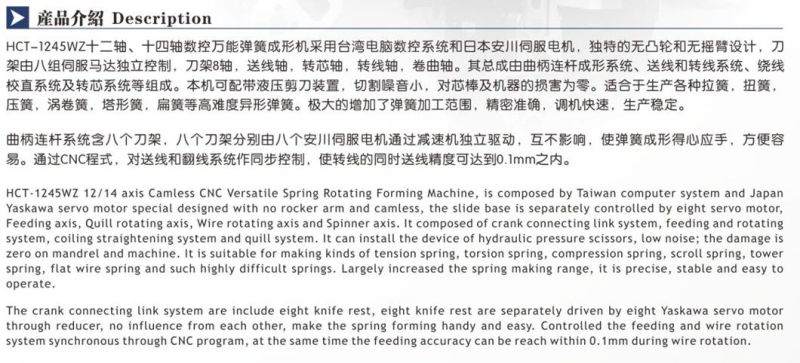

HCT-1245WZ-Machine Catalog & Description & Specification

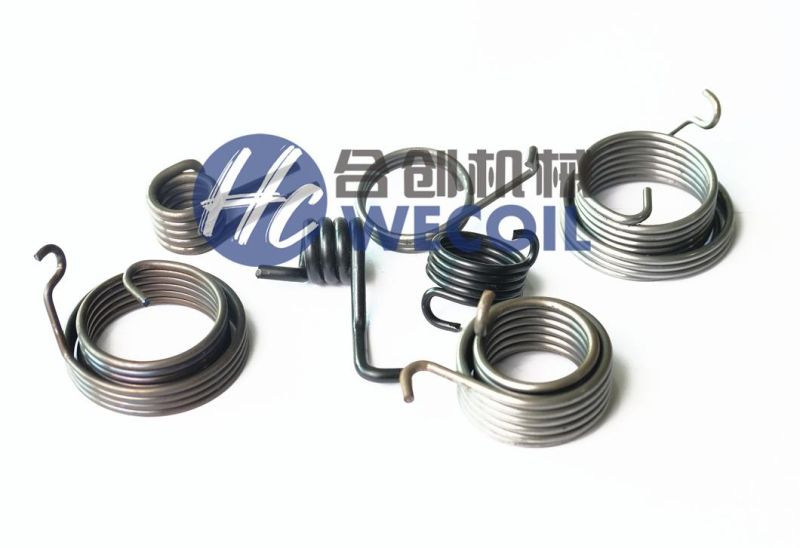

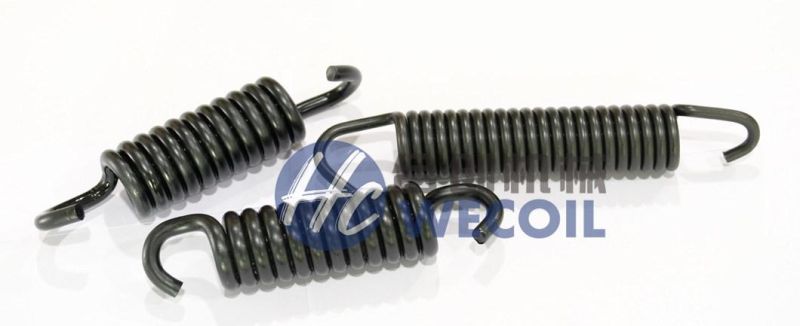

WECOIL--Springs Samples tested on Wecoil Spring Machinery

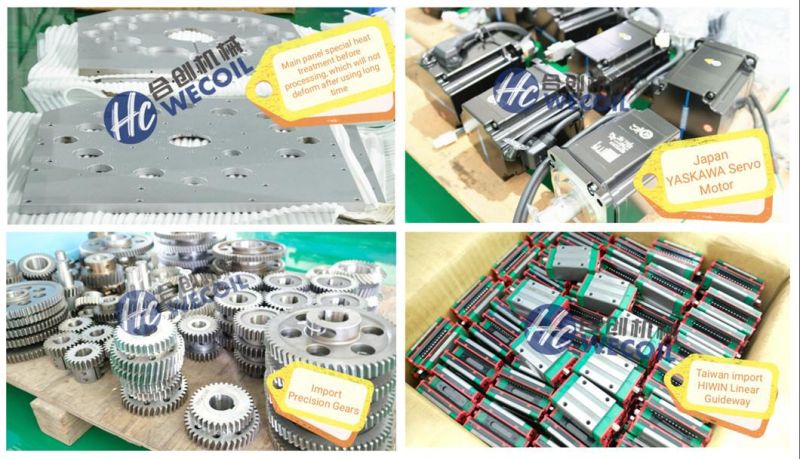

WECOIL--Machine Spareparts

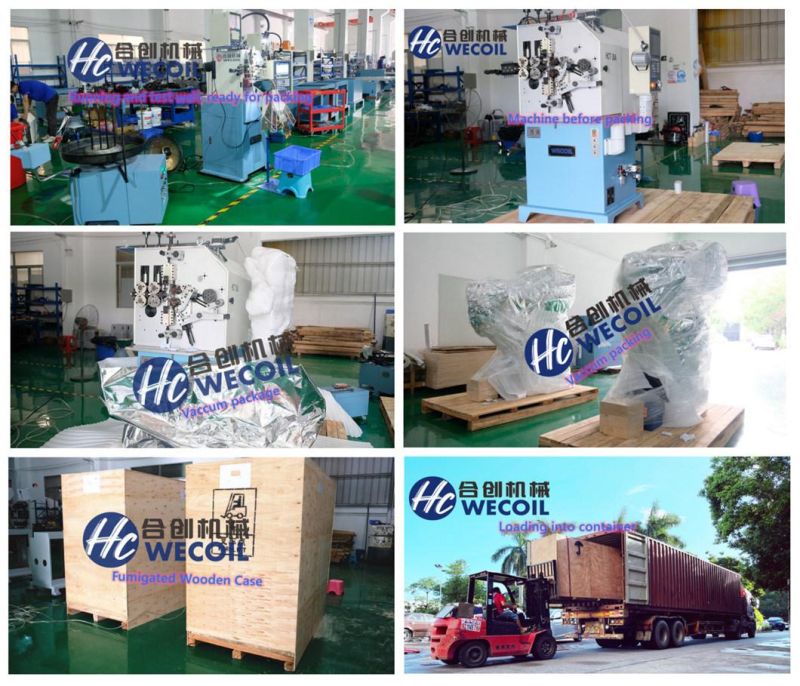

WECOIl--Packaged with Vaccum Package Wooden Case and Loading


Wecoil High Quality professional pre-sale, sale and after-sale service.

1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery.

2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution.

3. Quick and safe shipment as per your requirement,such as the booking, container loading, and shipping documents  etc...

4. WECOIL will provide technical support by email and phone, technicians will be available at your side if necessary.

5. One-year guarantee period exclude the easy torn parts.



Any Consultations and Inquiries are welcome!
