• Model NO.：MS7-4*2500
• Warranty：2 Years
• Power：37kw
• Weight (Kg)：23000
• Voltage：380V 220V Optional
• Hydraulic System：Bosch-Rexroth Form Germany
• Application：Industrial Metal Cutting
• Back Gauge：10-750mm
• Throat Depth (mm)：120
• Shearing Angle：1.5
• Dimension(L*W*H)：4200*2700*2900mm
• Transport Package：Standard Export Package
• Specification：25*3200mm
• Trademark：AccurL
• Origin：China Ma′anshan
• HS Code：84622990
• Package size per unit product：4920.00cm * 3710.00cm * 2930.00cm
• Gross weight per unit product：8000.000kg

Basic Info.

Model NO. MS7-4*2500 Warranty 2 Years Power 37kw Weight (Kg) 23000 Voltage 380V 220V Optional Hydraulic System Bosch-Rexroth Form Germany Application Industrial Metal Cutting Back Gauge 10-750mm Throat Depth (mm) 120 Shearing Angle 1.5 Dimension(L*W*H) 4200*2700*2900mm Transport Package Standard Export Package Specification 25*3200mm Trademark AccurL Origin China Ma′anshan HS Code 84622990

Packaging & Delivery

Package size per unit product 4920.00cm * 3710.00cm * 2930.00cm Gross weight per unit product 8000.000kg

Product Description

Product Description

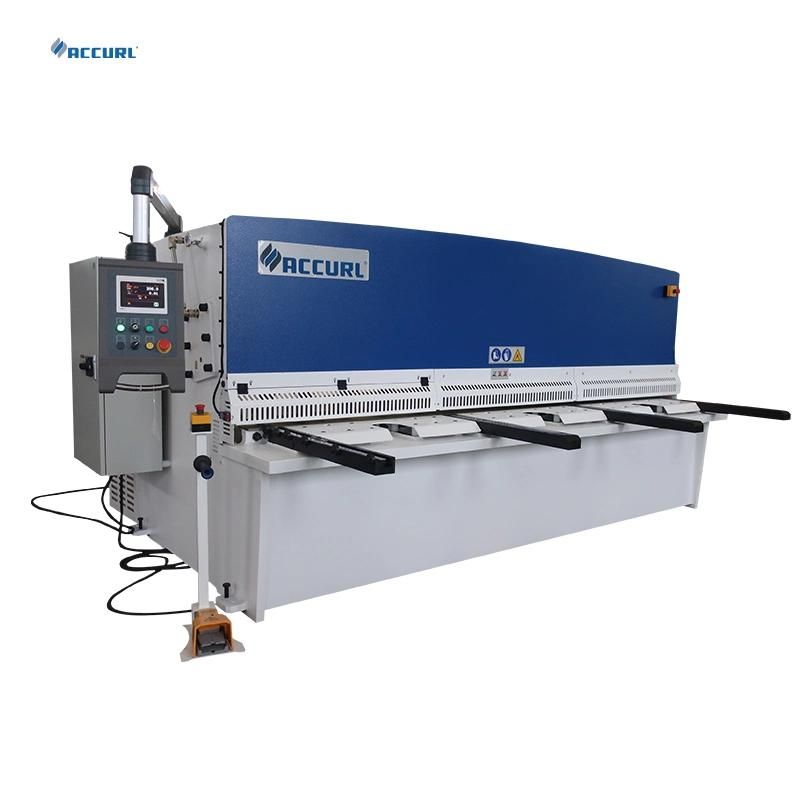

1.The ACCURL® swing beam shearing machine is the fruit of a project resulting in our bringing together 'Made in China' creativity, design and innovation with all the reliability of the best Chinese and European component range.

2.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality.

3.The ACCURL®cnc hydraulic shearing machine is available with a broad series of standard equipment but it is possible, at any moment, to add optional equipment according to requirement.

cnc hydraulic shearing machine  Features include:

•Solid monolithic structure

•An avant-garde hydraulic system

•Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam

•Blade pressure cylinders, with auto-regulating pressure, based on cutting force

•Blade carrying beam guide over the whole cutting length

•Rear regulator with recirculating ball screws

•Running wheels' table and frontal support

•Cutting Angle & Blade Gap by Estun E21 NC control

•Cutting line with LED illumination

•Estun E21 NC control System

•Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels

•HIWIN Ball screws & Polished rod with 0,01 mm accuracy.



Main Features
MAXIMUM SOLIDITY:
The robust monolithic structure is a guarantee of great stability and precision of cut. Even the design is perfected according to criteria of maximum functionality and efficiency, such as to reduce maintenance and operator interventions to the minimum.
