• Model NO.：QC12K-12X3200
• CNC Controller：E200PS CNC
• Max Cutting Thickness：12mm
• Max Cutting Length：3200mm
• Transport Package：Steel Fixed
• Specification：12*3200
• Trademark：ZDMT
• Origin：China

Basic Info.

Model NO. QC12K-12X3200 CNC Controller E200PS CNC Max Cutting Thickness 12mm Max Cutting Length 3200mm Transport Package Steel Fixed Specification 12*3200 Trademark ZDMT Origin China

Product Description

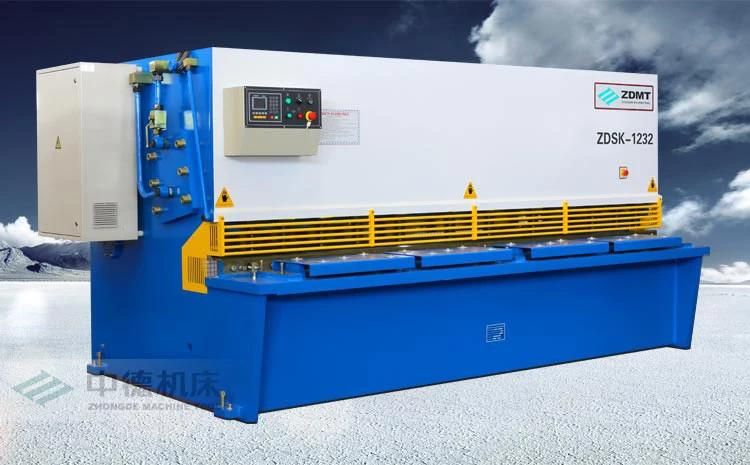

ZDPK-1232 (QC12K-12X3200) E200PS Hydraulic CNC Swing Beam Shear

Main functions and features :

· Hydraulic transmission,swing blade holder.

· Strong and durable integral welded frame.

· Stable and rapid return stroke of oil cylinder by accumulator.

· Adjustable (full/shorter) stroke

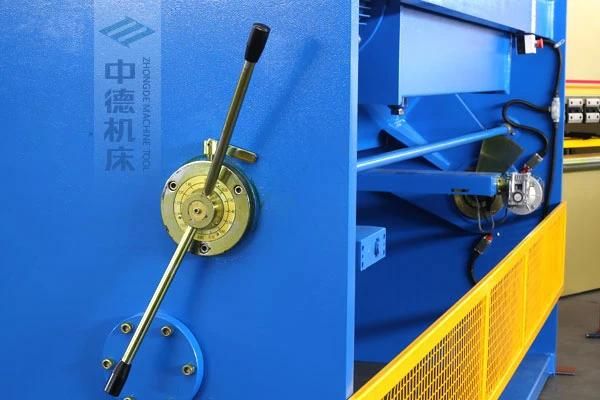

· Hand-wheel adjustment of gap between the upper and lower blades.

· Computer numerical control system and position coder form a closed ring control system.

· The control system ensures great speed,high accuracy and good stability.

Related configuration with details :

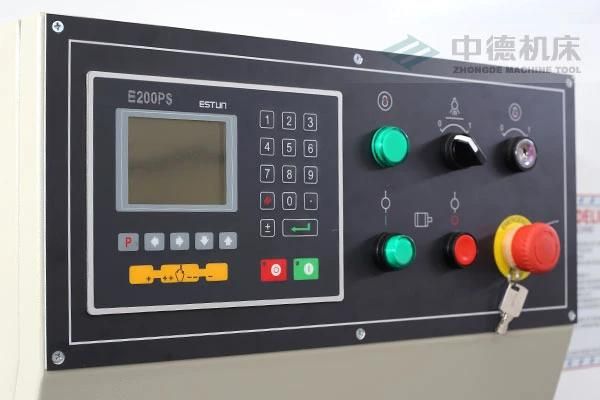

· E200PS CNC controller for ZDSK-1232 hydraulic cnc swing beam shear.


· Using good quality electrics,with servo motor drive,accurate control,stable and durable.

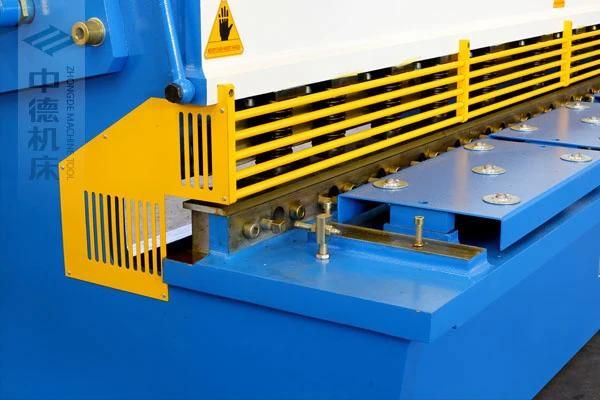

· Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Using high quality holding-down clamps.


· Indicator-based adjustment of blades clearance is easy,convenient and swift.


· Emergency stop button on the back of the shear machine,to protect the personnel safety.

· Domestic high quality bearing,wearproof and long operation lifespan.

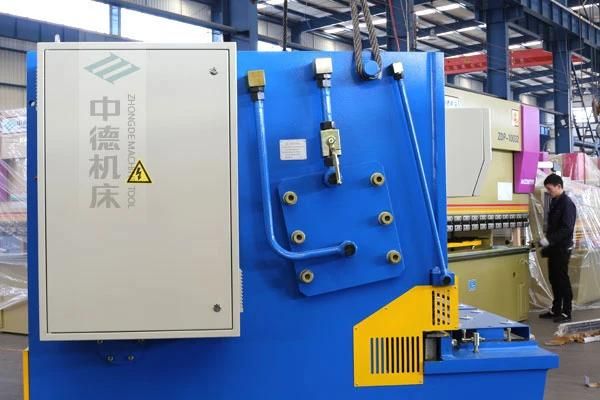

· Bite type tube fittings is used to avoid disadvantages of uneasy maintenance etc that caused by welding.

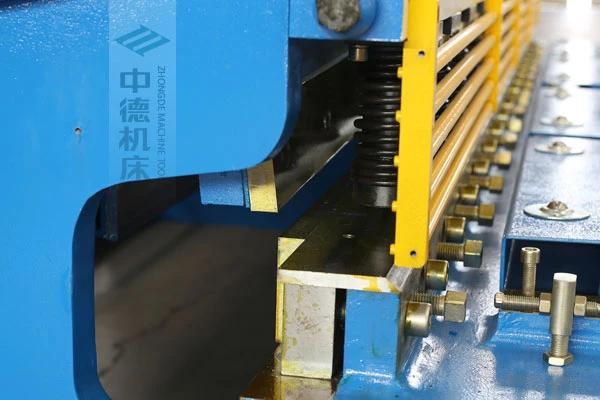

· Shanghai good quality blades,with long lifespan.
