Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved

Xiamen Xinhonghua Machinery Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Automation：Semi-Automatic
  • Suitable for：Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type：Hydraulic Bending Machine

Base Info

  • Model NO.：YX65-400,425
  • Color：Blue,Red,Arbitrarily
  • Model Name：Yx65-300-600
  • Customized：Customized
  • Weight：1500kgs
  • Motor Power：4kw
  • Advantage：Use Widely
  • Min. Curved Radius for Aluminum：Convex Curved 1m,Concave Curved 5m
  • Min. Curved Radius for Steel：Convex Curved 4m,Concave Curved 8m
  • Forming Steps：4
  • Transport Package：Export Standard Packing
  • Specification：1500mm,800mm,2000mm
  • Trademark：XHH
  • Origin：Xiamen
  • HS Code：84552290
  • Production Capacity：10-15sets,Month

Description

Model NumberYX65-300-600 KLS25-220-530 Size1500*850*2000mm500*600*1100mmWeight1500KGS150KGSMotor Power4KW0.75KWProcessing Speed10-16m/min6-8m/minVoltage380V/50HZ/3PH240V/50HZ/1PHCurved Thickness for Steel Roof0.6-0.8mm0.5-0.8mmCurved Thickness for Aluminum Roof0.6-1.0mm0.6-1.0mmMaterial for frame of machineFine welded structural steelFine welded structural steelUsage:Curving normal galvanized and prepainted galvanized steel, and Aluminum roof to curve                 with con  vex or concave shape, only convex or concave curved for one piece roofing;

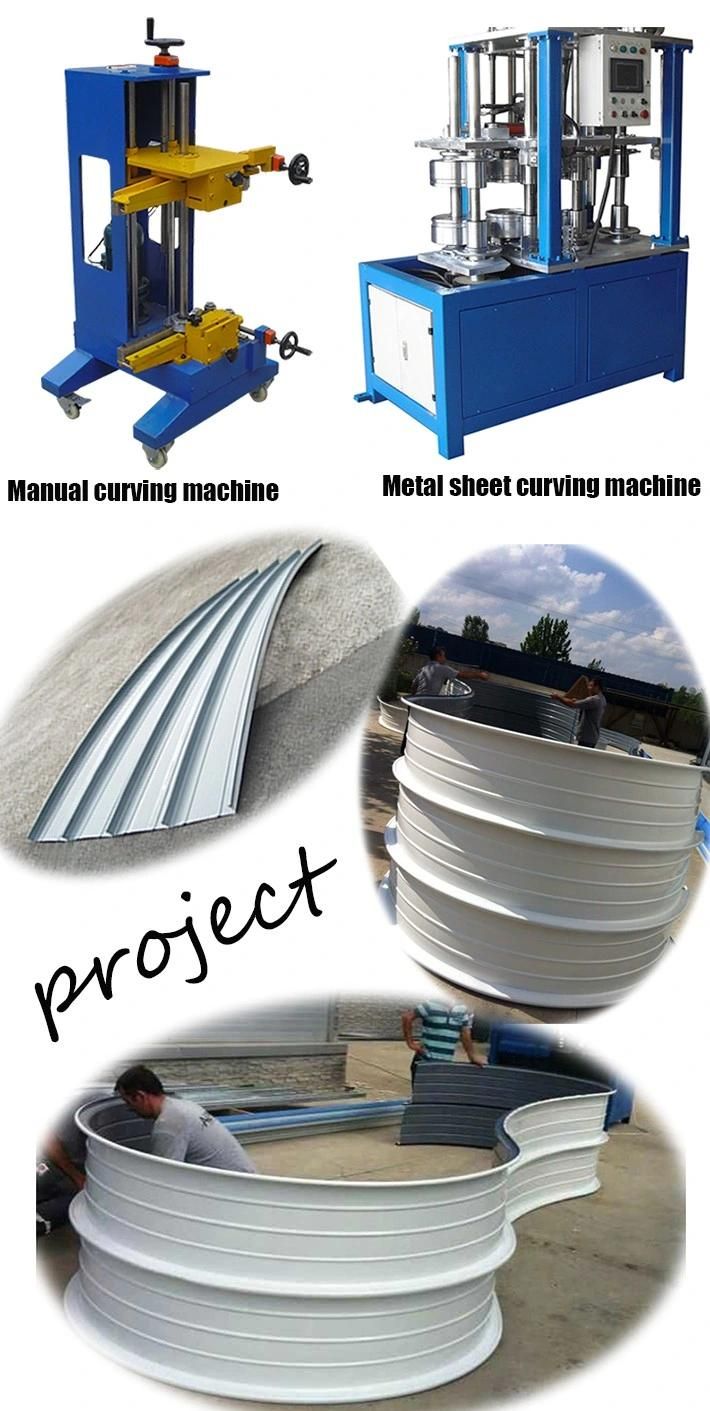

2. Pictures of  metal sheet curving machine
Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved

3. Certifications of Product
Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved

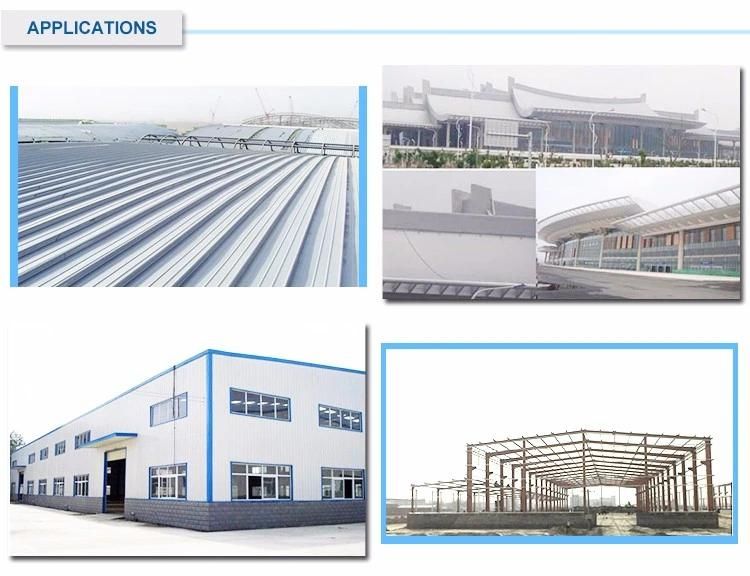

 4. Applications of Product
Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved


1.Our Company View
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.


2.Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.
 b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

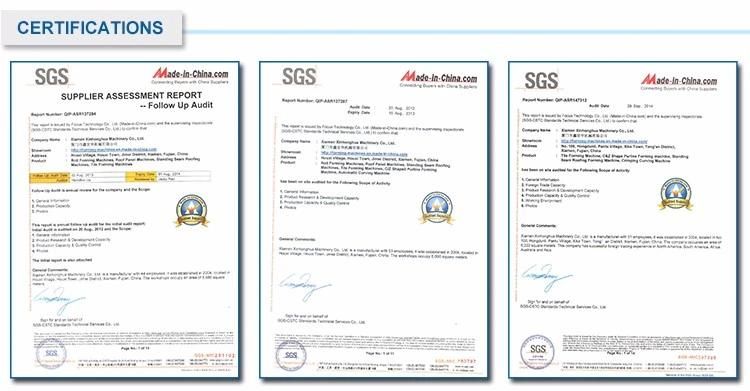

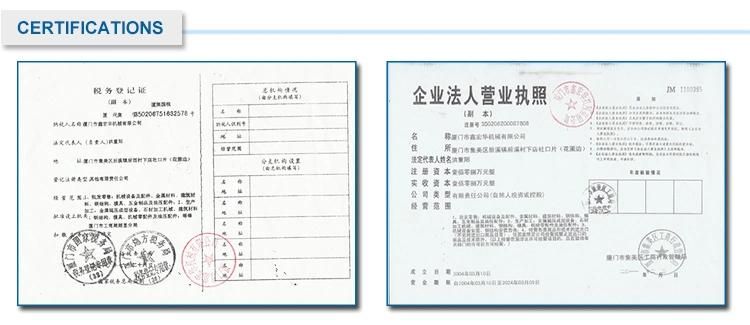

3. Certifications of Our Company

 Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved


4. Exhibitions and Customers

Automatic Hydraulic Bending Machines with Convex Curved and Concave Curved

Thank you for your attention!
