Machine Use CNC Flame Cutting Torch for Cutting Machines
Wuxi Longteng Welding and Cutting Equipment Co., Ltd.- Certification:CE, ISO 9001:2008
- Condition:New
- Application:Metal
- Style:Gantry
- Type:CNC
- Material:Brass,Copper
Base Info
- Model NO.:LT-GJ-SK

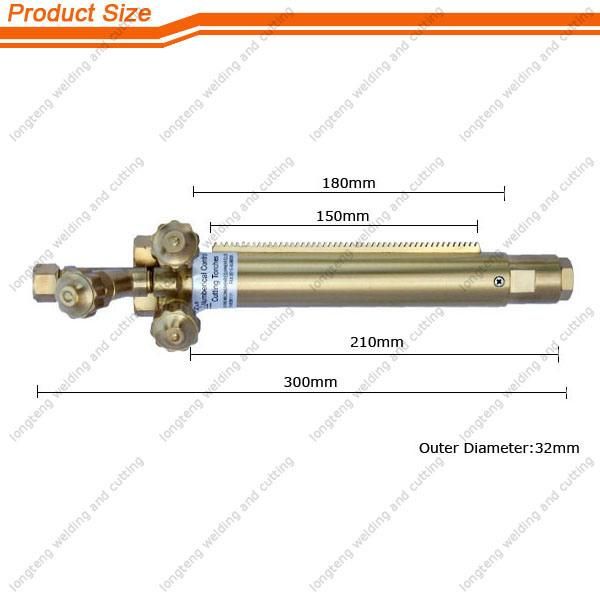

- Outer Diameter:30mm or 32mm
- Thread:M16*1.5mm
- Package:Carton
- Od of Tube:30mm or 32mm
- Transport Package:Carton, Wooden Case
- Specification:CE, ISO
- Trademark:Longteng
- Origin:Wuxi, China (Mainland)
- HS Code:8515900000
- Production Capacity:50000 PCS,Year
Description
Basic Info.
Model NO. LT-GJ-SK Outer Diameter 30mm or 32mm Thread M16*1.5mm Package Carton Od of Tube 30mm or 32mm Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/YearProduct Description

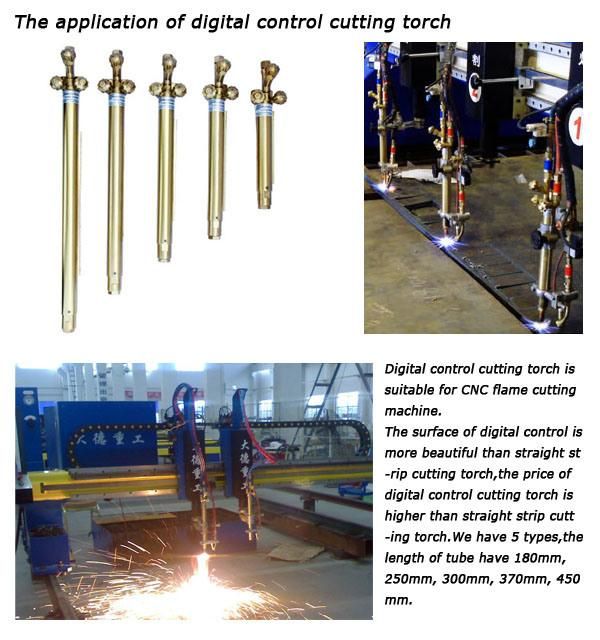

Machine Use CNC Flame Cutting Torch for Cutting Machines1)Quick Detail:1.Machine use flame cutting torch2.For CNC flame cutting machine3.Balanced pressure structure design cutter to cut the steel plate 2)Description:1.It is made of high quality forging brass.2.Balanced pressure structure design.3.It adopts silver solder, which can effectively avoid leakage.4.O.D.of the tube: 30 mm and 32mm.5.The length of the tube: 180mm,250mm,300mm,370mm,450mm.6.The gear rack can be installed at 4 different positions with 90 degrees between two positions.7.It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees. 3)Applications:Machine Use Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.

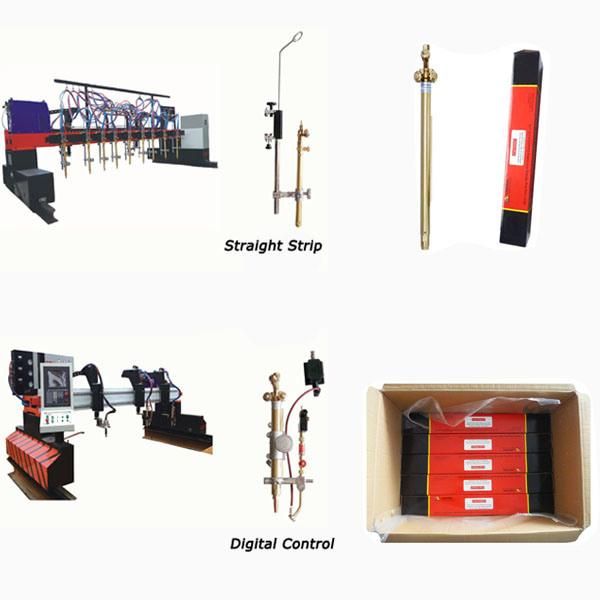

During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas. The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch. 4) Comparetive Advantage:1.Professional manufacturer for CNC cutting machine accessories2. More than 16 years experience3. Factory direct price and on time delivery4. Secure ordering and worldwide delivery5. Sample available6. Small quantity acceptable7. OEM workable
5) Factory Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure Ordering and worldwide delivery
5. Sample available
Thimble Length(mm) | Cutting Thickness(mm) | Rack Length/Modulus | Acetylenecutting tips | Propane cutting tips | Inlet connection |
180 | 300 | 90/1 | G02#0-#5 | G03#0-#5 | M16*1.5 |
250 | 300 | 150/1 | G02#0-#5 | G03#0-#5 | M16*1.5 |
300 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M16*1.5 |
370 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M16*1.5 |
450 | 300 | 310/1 | G02#0-#5 | G03#0-#5 | M16*1.5 |
