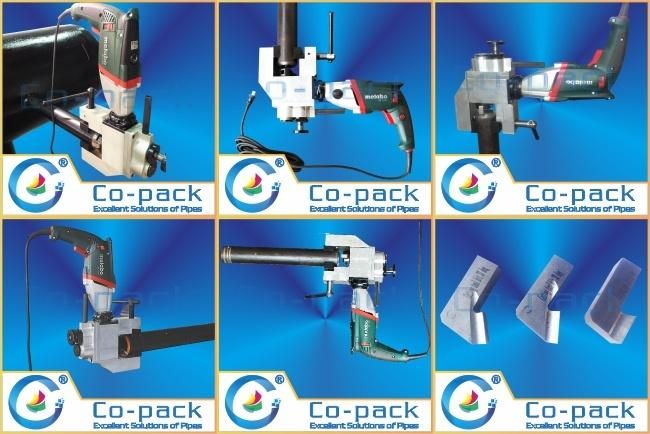

ISC-II Auto Feed Electric Boiler Tube Pipe Beveller
Wenzhou Co-Pack Machine Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
Base Info
- Model NO.：ISC-II
- Control：Semi-Automatic
- Application：Metal
- Power Source：Electric
- Layout：Portable
- Transport Package：Wooden Case , Metal Box (Optional)
- Trademark：Co-Pack
- Origin：Wenzhou, China
- HS Code：8461909000
- Production Capacity：200 Sets,Year
Description
ModelRange Pipe Thickness Rotating Tool Stroke Body Thickness OD mm mm rpm mm mm ISC-53-II Φ14-53 ≤12 0-58 0-20 54 ISC-76-II Φ25-76 ≤12 0-54 0-20 58
Clamping Block
One clamping block just fit one size pipe
Standard with four diameter clamping block, more specifications please inquire

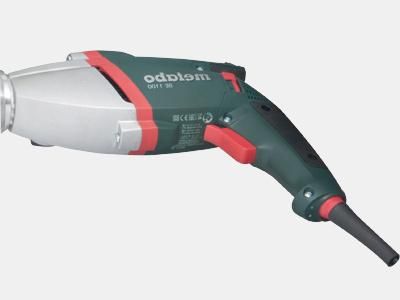

Power Supplies
METABO motor
Electric requirement: 220-230V 1PH 50/60HZ
Power: 1.3KW

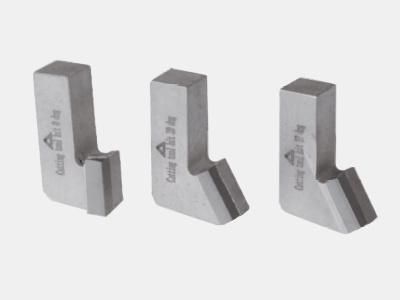

Tooling
Integrated Tool
Can be reused by grinding
Material: M42 and M35
Standard supply
Clamping Block
No. Model | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| ISC-53-2 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ25.4 | Φ28 | Φ32 | Φ38 | Φ42 | Φ45 | Φ48 | Φ51 | Φ53 | |
| ISC-76-2 | Φ25.4 | Φ28 | Φ32 | Φ38 | Φ42 | Φ45 | Φ51 | Φ54 | Φ57 | Φ60 | Φ63 | Φ68 | Φ70 | Φ73 | Φ76 |
Standard with four diameter clamping block, more specifications please inquire
Power Supplies
METABO motor
Electric requirement: 220-230V 1PH 50/60HZ
Power: 1.3KW
Tooling
Integrated Tool
Can be reused by grinding
Material: M42 and M35
Standard supply
