• Model NO.：WC67K 125T4000
• Condition：New
• Certification：CE
• Automation：Automatic
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
• Type：Press Brake
• System：E22
• Max Bending Thickness：4mm
• Max Bending Width：4000mm
• Frame Distance：3200mm
• Throat Depth：230mm
• Power：7.5kw
• Size：2500X1200X1900mm

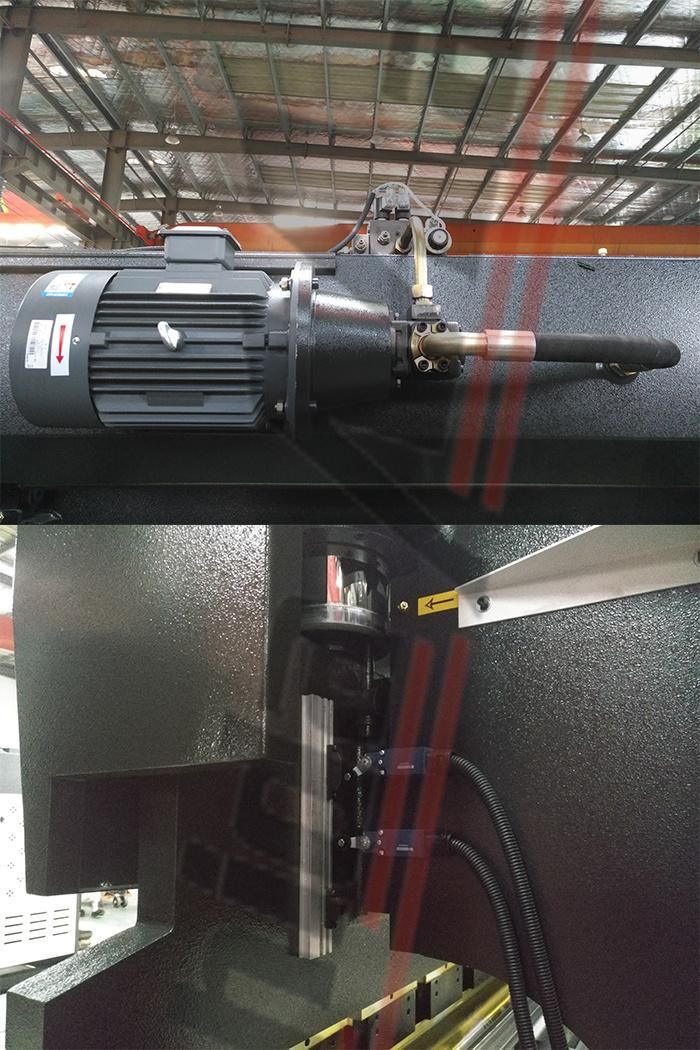

• Main Motor：Siemens

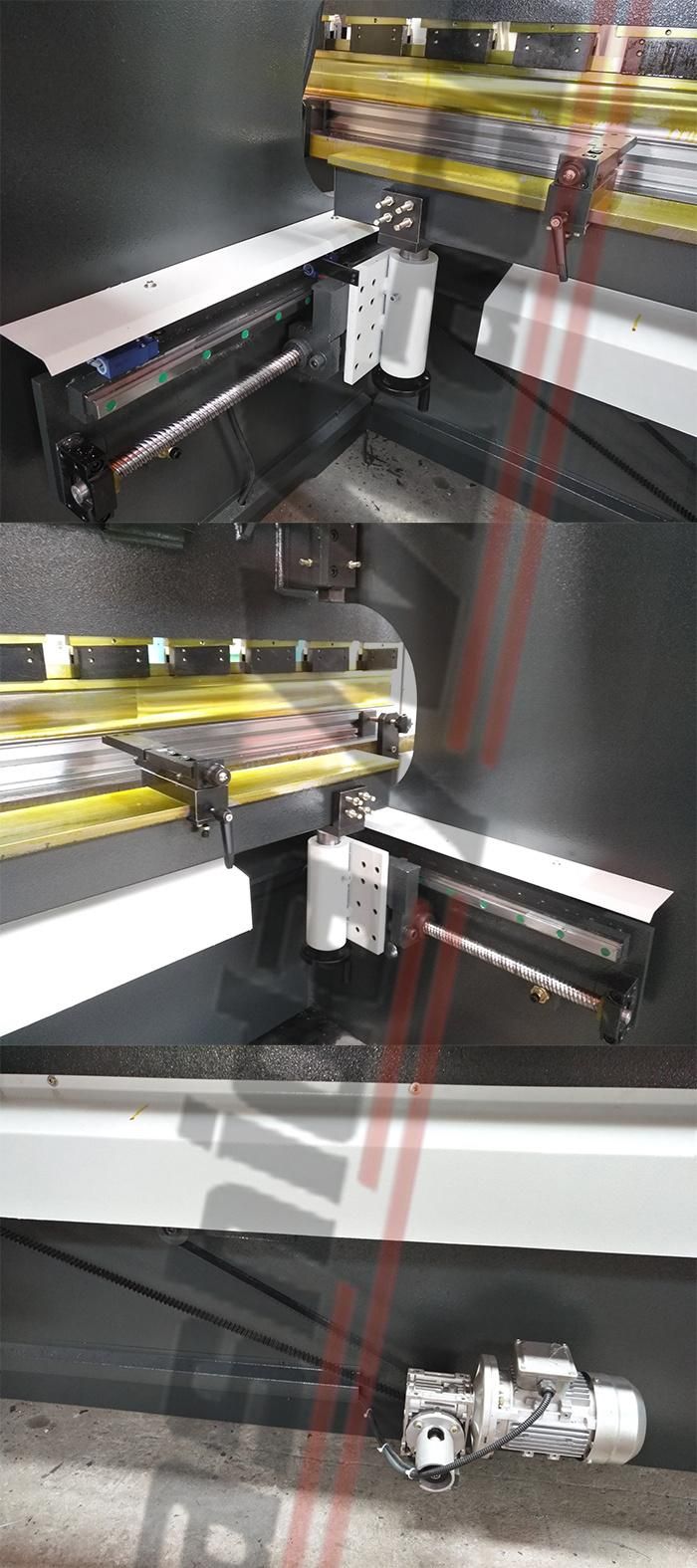

• Back Guage：500 Distance, Ball Screw and Linear Guide Rail
• Transport Package：FCL,LCL, with Plastic Film Covered
• Specification：4300x2010x2500mm
• Trademark：Jiashida Machine
• Origin：China
• HS Code：8462219000
• Production Capacity：100 Sets,Month
• Package size per unit product：4500.00cm * 2200.00cm * 2600.00cm
• Gross weight per unit product：11000.000kg

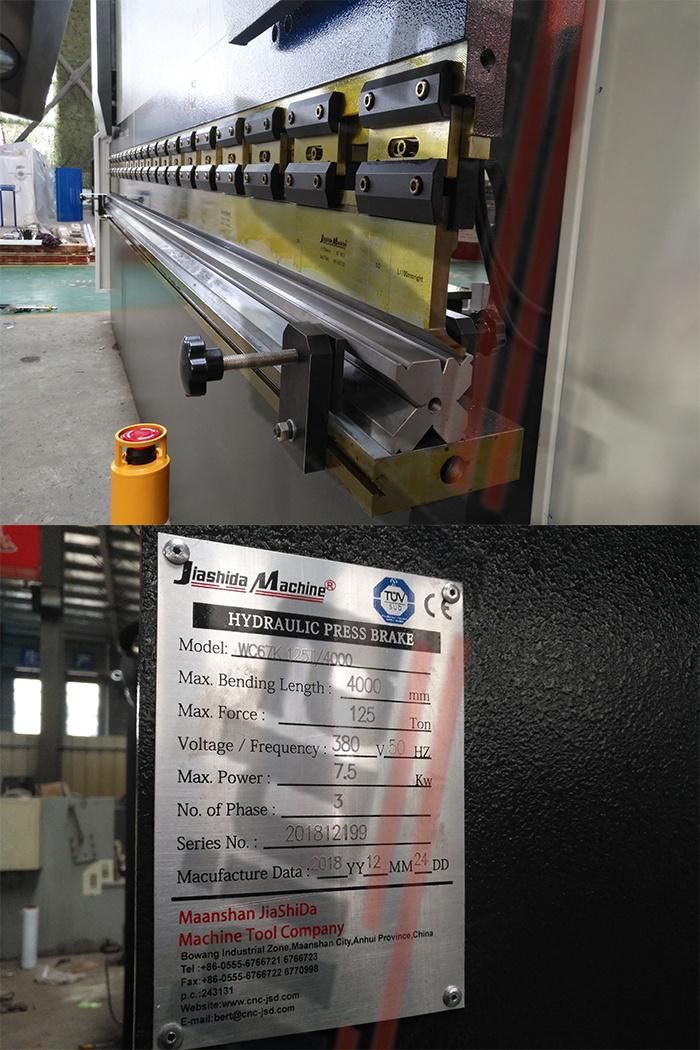

WC67K Series NC Hydraulic Press Brake with E21 System--The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.
--The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.
--Integrated hydraulic system Rexroth Germany allows automatically switch to slow bends in a quick way.

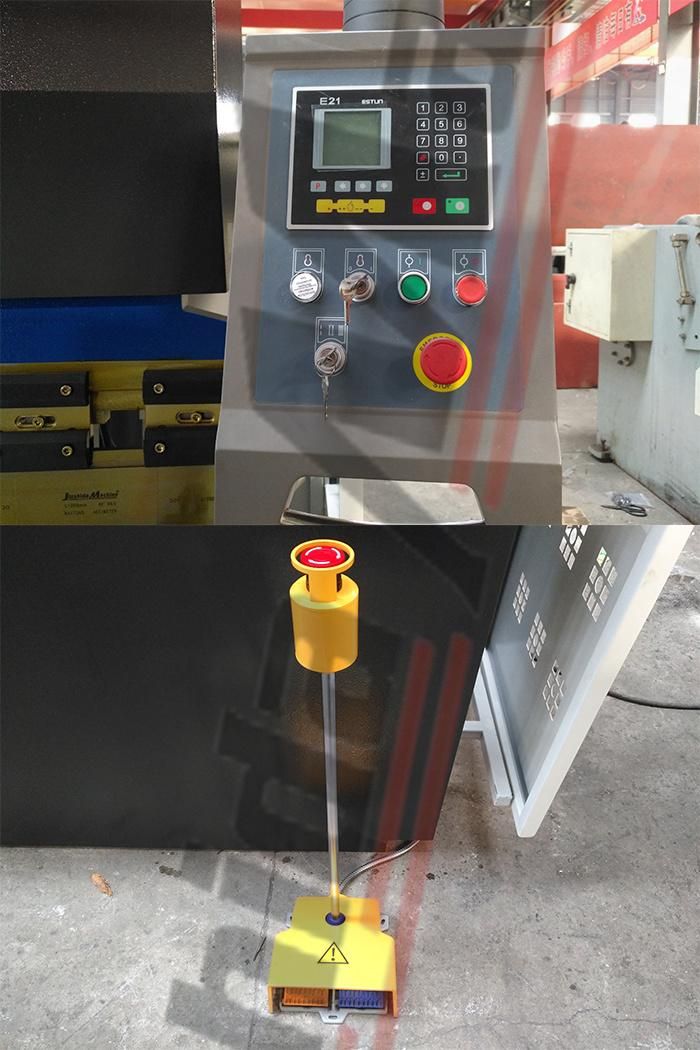

--Hydraulic synchronous control and E21 programmable logic controller ensure accurate repeat-ability and ease use.
-- X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
-- Bending frequency response hydraulic control technology, more stable machine tools, more reliable operation.
--The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.

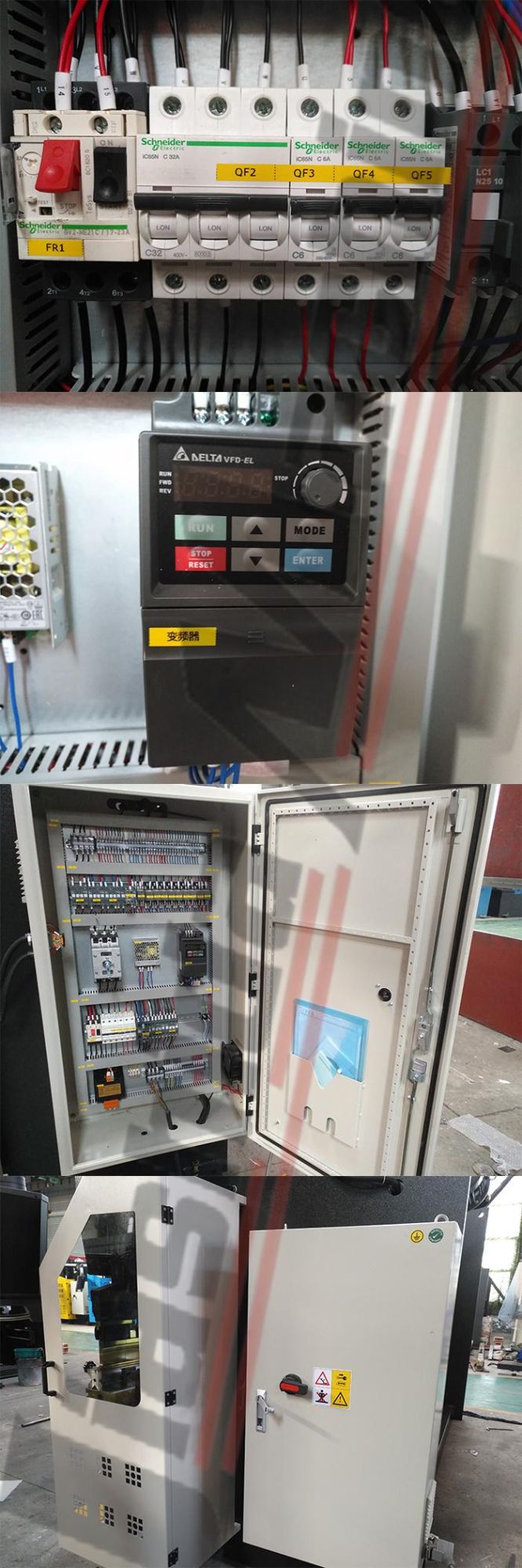

--WC67K standard single-axis back gauge system and single axis bending angle system, you can choose to add the V-axis compensation function, and select the appropriate mold to bend complex shape of work pieces easily.Main electrica componentsTaiwan DELTA frequence converterBackguage500mm X axis distanceBall screw and liner guide railGood performance step motor with reducerMain motor SiemensAmerica Sunny oil pumpRexroth hydraulic valvelimit switchNanjing Estun E21 simple controllerSouth Korea foot pedal switchClampingOne set of tool
Material: 42CrMo
Multi-V dies
Overall quenching process, high hardness and
good wear resistance.(this tool photo is only for reference,
we can also do customization)


Customer visited fromall over the world.


40HQ loading process for the WC67K 125T4000 nc press brake
