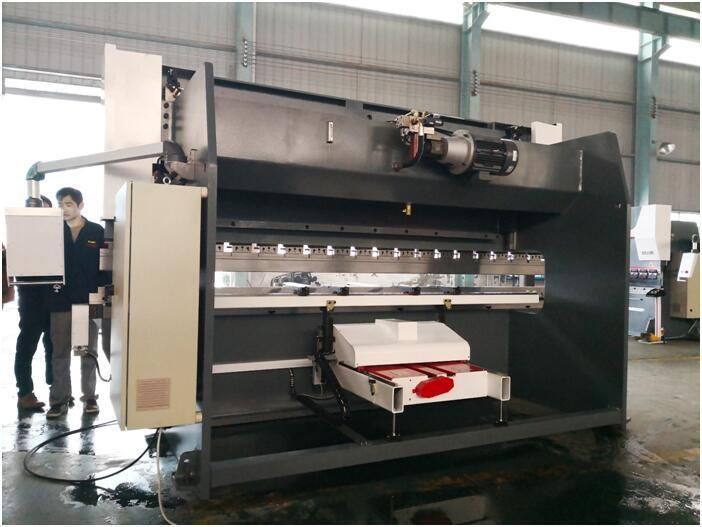

New Style Electro-Hydraulic CNC Press Brake for Metal Plate, Kcn-16032
Nanjing Jinqiu CNC Machine Tool Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：KCN-16032
- Type：Press Brake
- Transport Package：Nude
- Specification：3700x1870x2700
- Trademark：KingBall
- Origin：Jiangsu, China
- HS Code：8462299000
- Production Capacity：100sets,Month
Description
10000kg
Main configuration

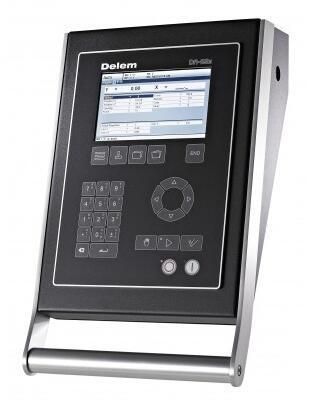

DA52S CNC controller
DA-52s
The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.
DA-52s features
The standard accessories are in the below:
Main configuration
| Name | Producer |
| CNC controller | DA52SDelem Holland brand |

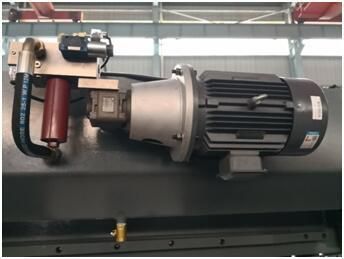

| Main motor | Siemens Germany brand |
| Electrical components | Schneider France brand |
| Gear pump | Sunny USA brand |
| Seal ring | NOK Japan brand |
| Hydraulic system | Boschrexroth Germany brand |

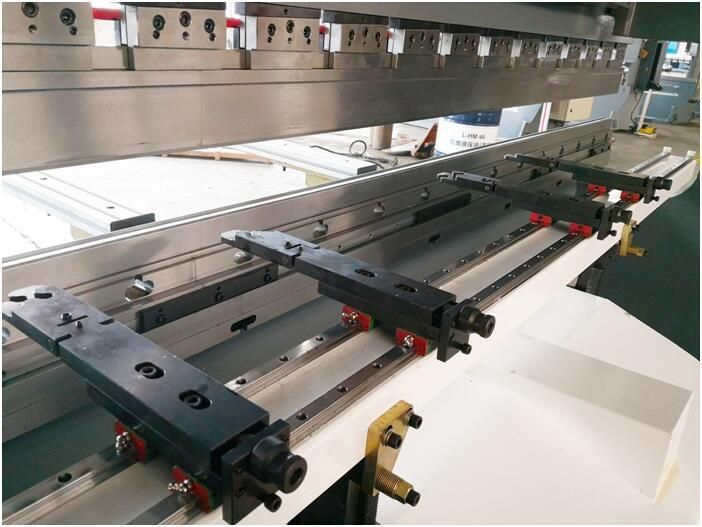

| Ball screw ,Linear guide | HIWIN Taiwan brand |
| Grating ruler | GIVI Italy brand |
| Tubing connector | EMB Germany Brand |
| Servo Motor and drive | Thinkvo China brand |
DA52S CNC controller
DA-52s
The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.
DA-52s features
- Quick, one page programming
- Hotkey navigation
- 7" VGA colour TFT
- Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
- Crowning control
- Tool/material/product library
- USB, peripheral interfacing
- Advanced Y-axis control algorithms for closed loop as well as open loop valves
The standard accessories are in the below:
- Anchor bolt
- Hex nut
- Seal ring
- Gasket
- Grease gun
- Allen wrench

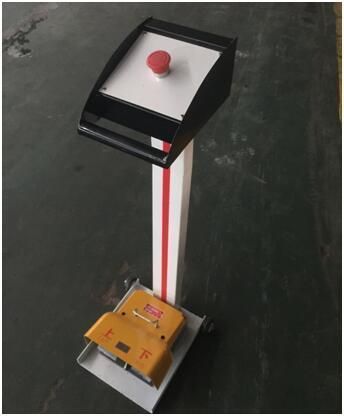

- Foot switch

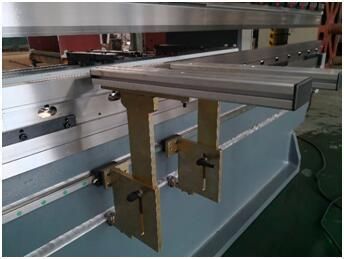

- Front support arms
- Electrical box key, control panel key
- Operation manuals
