High Working Efficiency Hydraulic CNC Tube Bender Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (114NCB)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2008, CE
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：114NCB
  • Type：Pipe and Tube Bending Machine
  • Transport Package：Iron Frame
  • Specification：5500X1400X1700mm
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. 114NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification 5500X1400X1700mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-114NCB
  1. Machine Characteristic

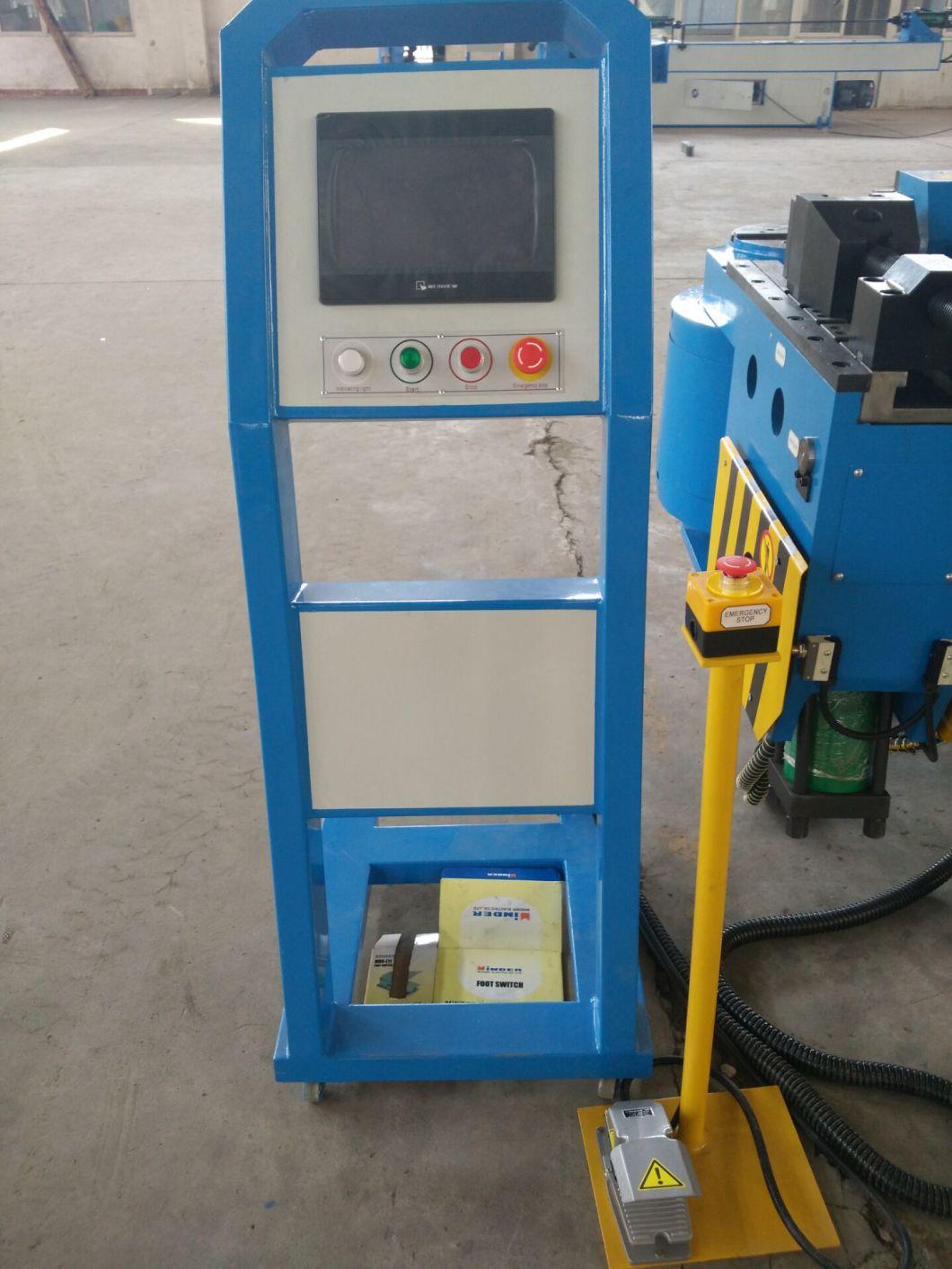

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

  1. Main Technical Parameter

NameUnit Parameter
Max. Bending Capacitymm¢114*12
Bending Radius Rangemm40-500
Max. Bending Angle° 190°
Though Effective Distancemm3500
Bending Speed°/sec20
Bending Precision°±0.10
System Motor PowerKW15
Oil Pump Delivery VolumeL36
Max. PressureMpa16
L*W*H (Packaging Dimension)mm4800*1350*1300
Machine WeightT5.5

  1. Configuration of Hydraulic and Electronic Control System

NameManufacturer
Hydraulic MotorSuzhou Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken
Oil way BoardSuzhou Boguan
CylinderShanghai Jingsheng
Oil tubeSuzhou Kejia

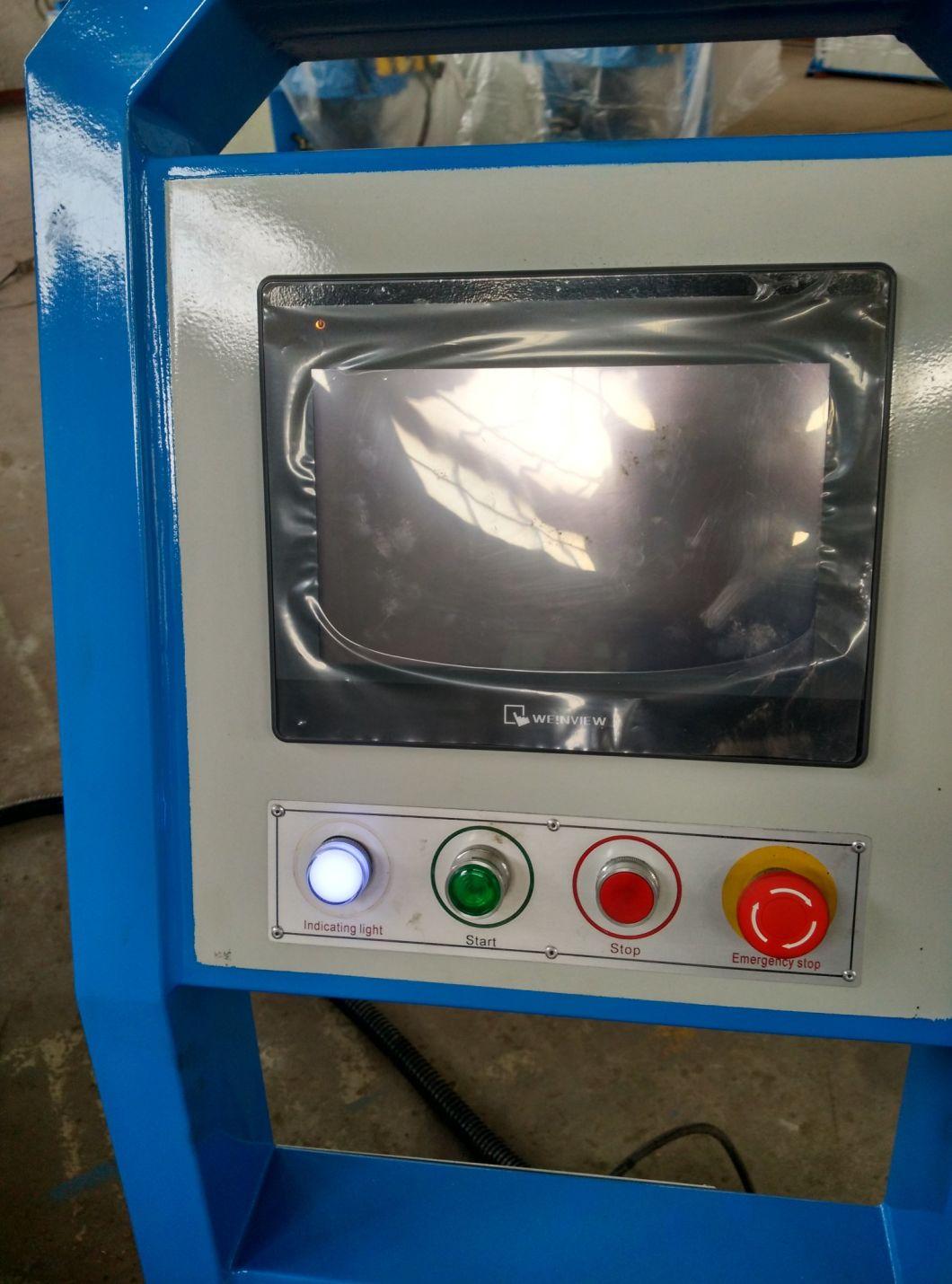

Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerWenzhou Changjiang
ContactorGerman SCHNEIDER(Imported)
Other Electric PartsGerman SCHNEIDER,Omron, Taiwan SHILIN(Imported)
