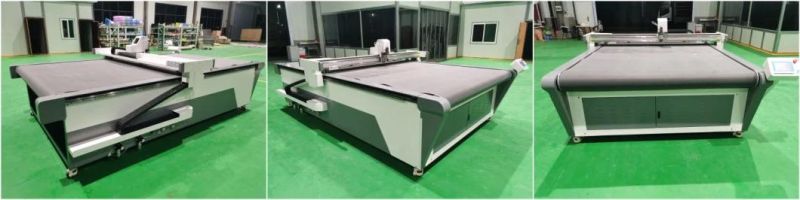

Carbon Fiber Prepreg Cutting Machine
Daap International (Yantai) Co., Ltd- Warranty：1-year
- Certification：CE
Base Info
- Model NO.：DMHA-CM1625
- Condition：New
- Control：Automatic
- Application：Paper, Plastic, Leather, Fabric
- Power Source：Electric
- Layout：Vertical
- Product Name：Flatbed CNC Digital & Automatic Knife Cutting Mach
- Cutting Speed：0-1000mm,S(According to Different Cutting Material
- Safety Device：Infrared Induction Automatic Emergency Stop
- Drive System：Servo
- Repeated Accuracy：≤0.01mm
- Cutting Thickness：0-50mm (Depending on The Hardness of The Material)
- Dimension(L*W*H)：3550*2200*1200mm
- Voltage：220V,380V
- Power：11W
- Weight：1500 Kg
- Transmission System：Servo Motor, Linear Guide
- Core Components：PLC
- Transport Package：Plywood Box
- Specification：3550*2200*1200mm
- Trademark：DMHA
- Origin：China
- Production Capacity：50 Sets, Month
- Package size per unit product：3600.00cm * 2000.00cm * 1100.00cm
- Gross weight per unit product：1200.000kg
Description
Technical ParametersModel DMHA-CM1625 Machine Head Intelligent Cutting Bar Safety device Infrared induction automatic emergency stop Translation speed 2500mm/s Cutting speed 0-1000mm/s Cutting thickness 0-50mm (depending on the hardness of the material) Platform Design Automatic feeding rolling platform Fixing method Tracking sub-regional vacuum adsorption Repeatability ±0.01mm Servo resolution ≤0.01 mm Cutting accuracy ±0.1mm Buffer capacity 2GB CNC panel Chinese and English LCD touch screen Transmission system Servo motor, linear guide Servo motor, linear guide 11KW Size 2000*3600*1100mm Working Area 1600*2500mm Weight 1200kg Rated voltage 380V±10% Cutting material leather, composite material, sponge, eva, foam, fiber and so on

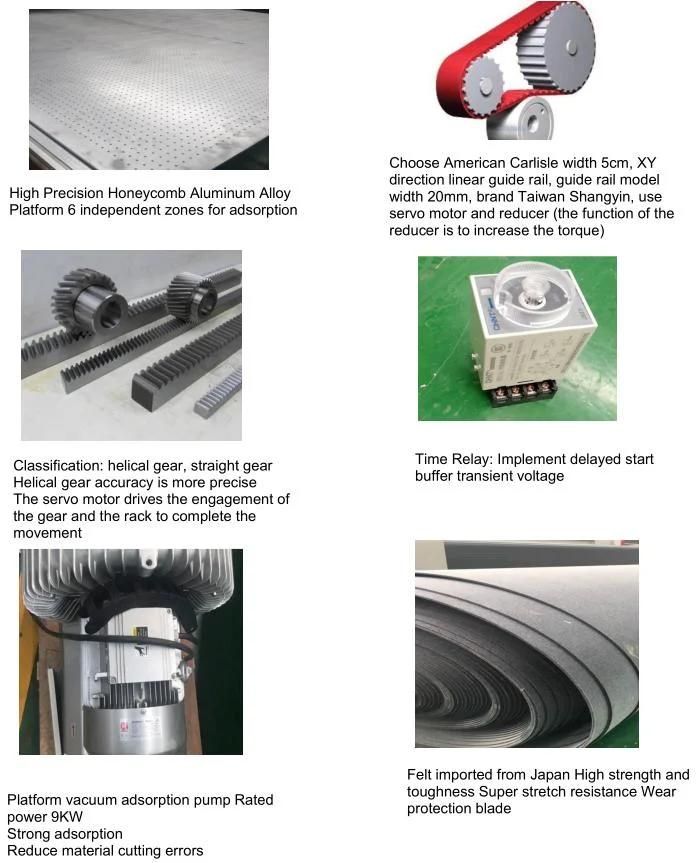

Main performance and features:1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance.2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. DMHA-CM1625 was designed easy to install, set-up and operate.
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety.
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.
Details
Service:
Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video.
About UsDAAP INTERNATIONAL(YANTAI)CO.,LTD is a production and trade as one integrated enterprise which is located in Yantai City Shandong Province China. DAAP is integrated in double sided tape dispenser,knife cutting machine,labeling machine etc. In face of fierce competition, our company will be in good faith to create enterprise to won the trust of our customers.
