• Model NO.：PEL-200
• Application Materials：Ss, CS, Aluminum, Galvanized Steel
• Control Type：Computer Control
• Type for Cutting Machine：CNC Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Application：Letter Bending
• Voltage：220V
• Size：1740*760*1450 mm
• Weight：400kg
• File Format：Plt
• Transport Package：Export Wooden Cases
• Specification：CE, SGS, ISO, TUV
• Trademark：Perfect Laser
• Origin：China
• HS Code：8462219000
• Production Capacity：500 units, month

Basic Info.

Model NO. PEL-200 Application Materials Ss, CS, Aluminum, Galvanized Steel Control Type Computer Control Type for Cutting Machine CNC Cutting Machine Type for Fold-Bending Machine CNC Fold-Bend Machine Application Letter Bending Voltage 220V Size 1740*760*1450 mm Weight 400kg File Format Plt Transport Package Export Wooden Cases Specification CE, SGS, ISO, TUV Trademark Perfect Laser Origin China HS Code 8462219000 Production Capacity 500 units/ month

Product Description

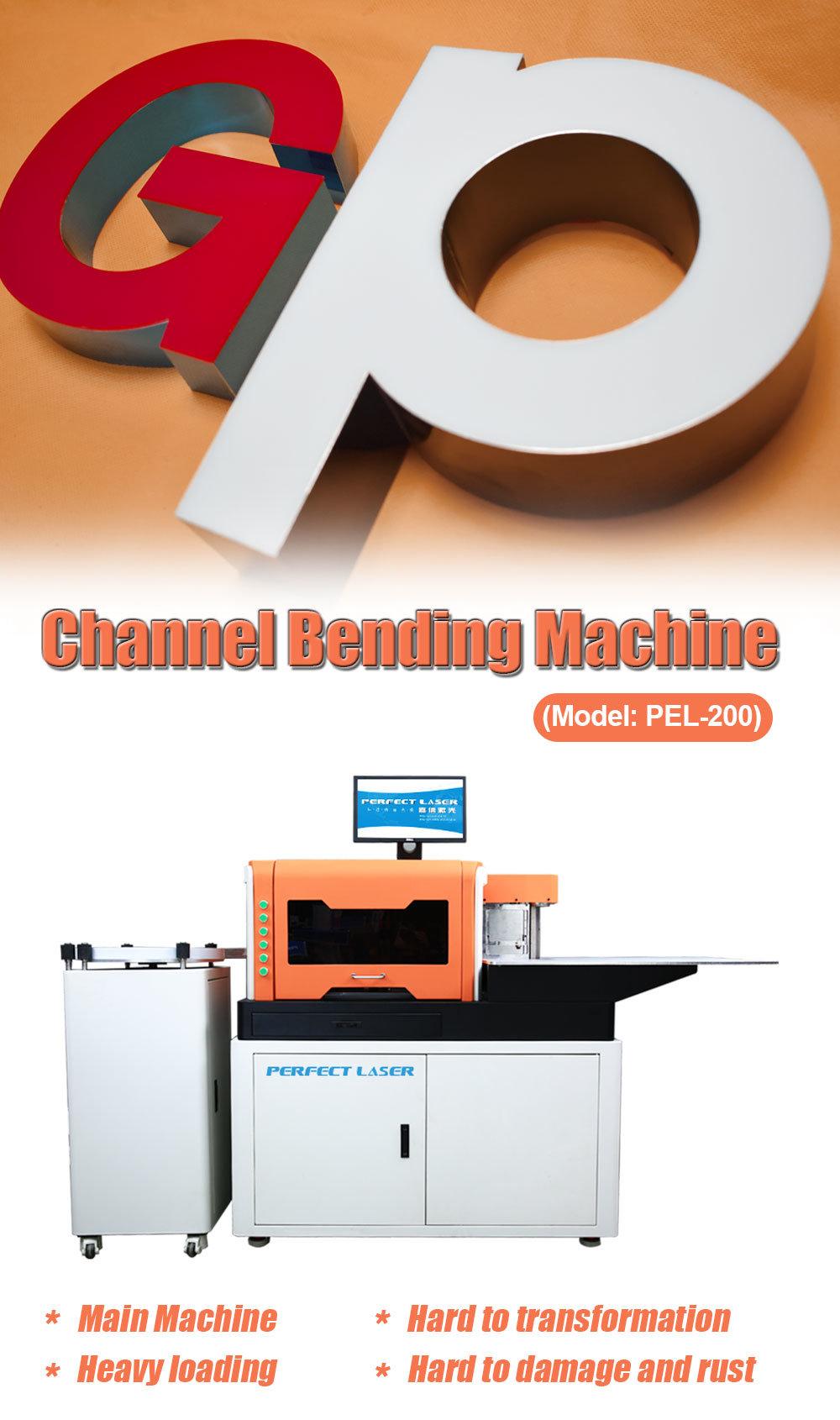

0.5-1.5mm Automatic Channel  metal letter bending machine in Sign Letter MakingDemo working video for PEL-200 :  https://youtu.be/iSxjQrAlPVY
Product features:
1. Brief Introduction: Cnc sheet metal bending machine
Automatic CNC stainless steel bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
2. Applied Materials for bending machine:
Aluminum strip, Aluminum, stainless steel strip bending, iron bending, galvanized steel bending ect.
3. Perfect Laser -cnc sheet metal bending machine Feature
(1) Friendly man-machine interface, simple configuration, touch-screen operation. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
(2) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
(3) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 130 ° .
(4) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 ° .
(5) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
(6) Wide range of applications: CNC Bending machine can process 0-1.5mm strip of aluminum, galvanized steel, iron and other metal sheet.
(7) It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.




Technical Data:

Model:	PEL-200
Type	PC Control Type For All SS, MS, Al materials
Bending Material:	Can bend all kinds of Stainless Steel, Carbon Steel, Galvanize Plate, Aluminum, etc...
Processed thickness:	Aluminum: 0.5 - 1.5 mm Stainless steel: 0.5 -1.5 mm Carbon Steel: 0.5 - 1.0 mm Galvanize Plate: 0.5-1.0 mm
Max. processed width:	< 180 mm
Voltage:	220V
Size:	1740*760*1450 mm
Weight:	400KG
File format	PLT
Feed speed:	5~20 m/ min
Precision	0.05 mm
Remark:	Computer system and Computer Screen is not included in Price. User can use any computer to run our machine.

To recommend a suitable model and quote best price for you please kindly answer my following questions :

1>The exact materials you want to bend ? (stainless steel, steel, aluminum, Iron....)
2>The bending thickness for above materials ? ( 0.5mm, 0.8mmm, 1mm, 1.5mm...)
3>The bending proportion bettween them ? like 90% stainless steel letter, 10% aluminum letter or 90% aluminum letter , 10% stainless steel letter or other proportion ?




Need price and more information? Please send inquiry to us RIGHT NOW.
The detailed techncial info and offer sheet will be sent in receipt of your reply ~
