WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring Machine

Dongguan Wecoil Spring Machinery Co., Ltd.
  • After-sales Service：Remote free technical support within 24hours
  • Waterproof Rating：IPX-6
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2000, CE
  • Automation：Automatic

Base Info

  • Model NO.：HCT-1280WZ
  • Suitable for：Rubber, Copper, Carbon Steel, Stainless Steel
  • Type：Cnc Bending Machine
  • Number of axis：12-16 axis
  • Wire size range：3.0-8.0mm
  • Max outside diameter：130mm
  • Wire feeding speed：100m,min
  • Spring index：4
  • Wire feeding servo motor：15.0kw
  • Quill servo motor：1.8kw
  • Wire rotation servo motor：7.5kw
  • Forming and cutting off servo motor：4.4*8kw
  • Spinner servo motor：1.8kw
  • Optional servo cutter servo motor：1.5kw
  • weight：100000kg
  • Transport Package：Vacuum Packaging
  • Specification：L5000*W2300*H2800mm
  • Trademark：WECOIL
  • Origin：China
  • HS Code：84633000
  • Production Capacity：500 Sets

Description

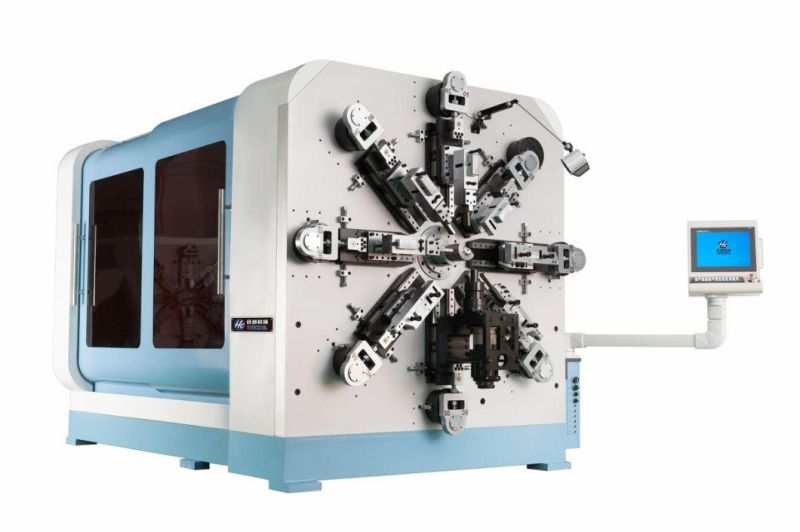

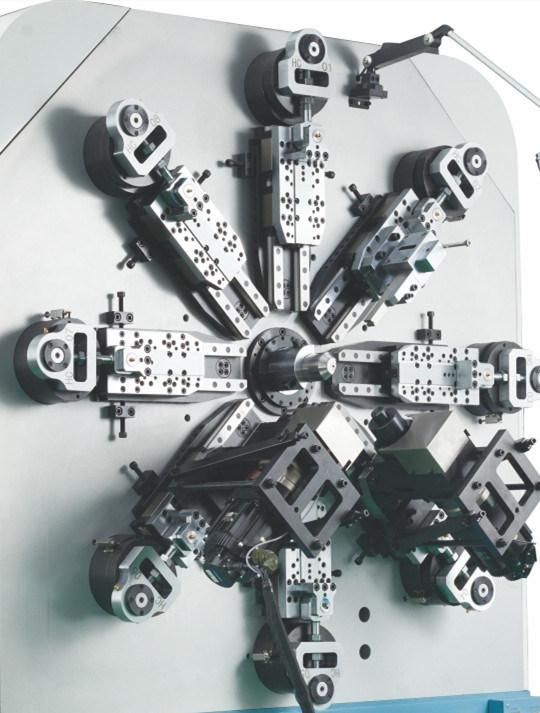

WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineHCT-1280WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis.
 The crank connecting link system are include eight knife rest, eight knife rest are separately  driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineIt composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. Largely increased the spring making range, it is precise, stable and easy to operate.

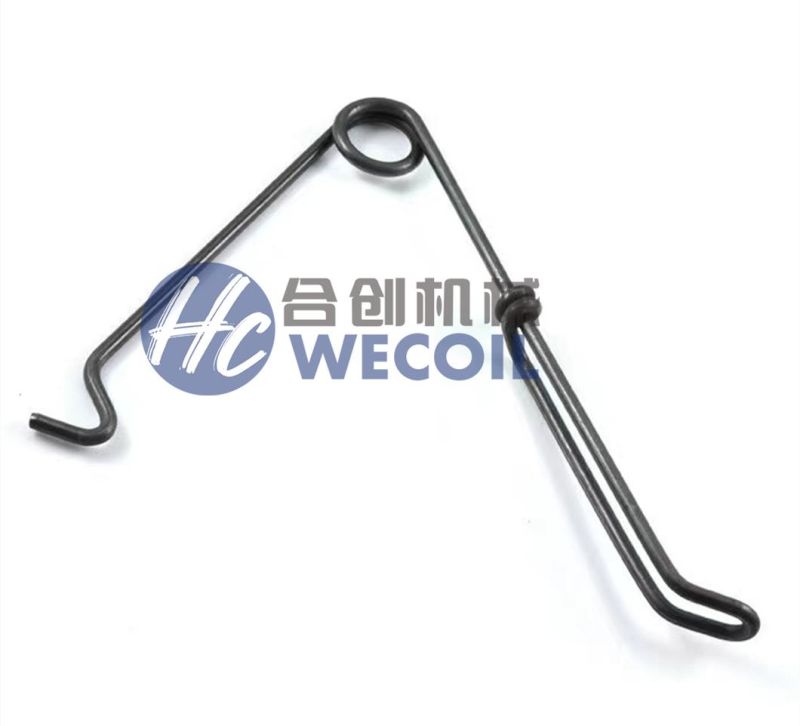

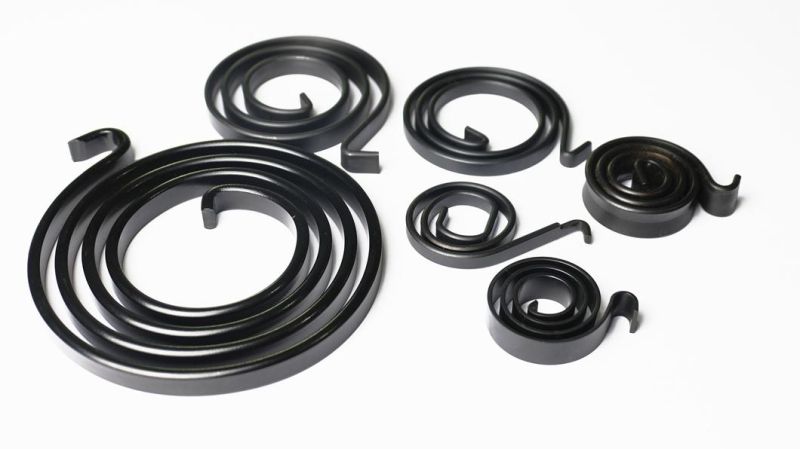

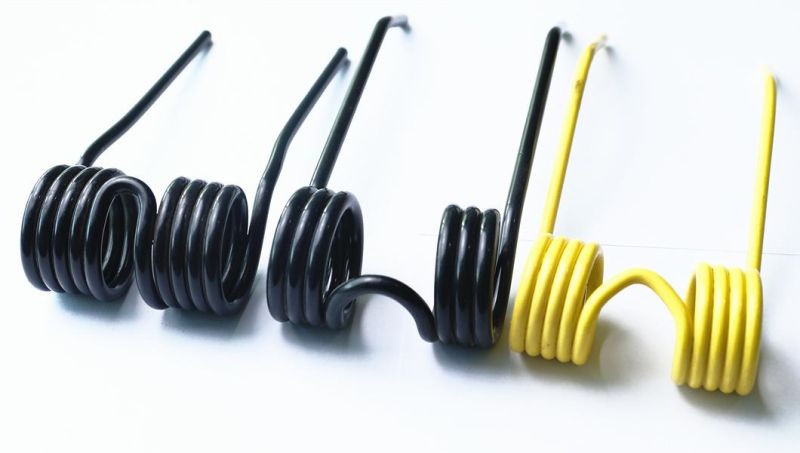

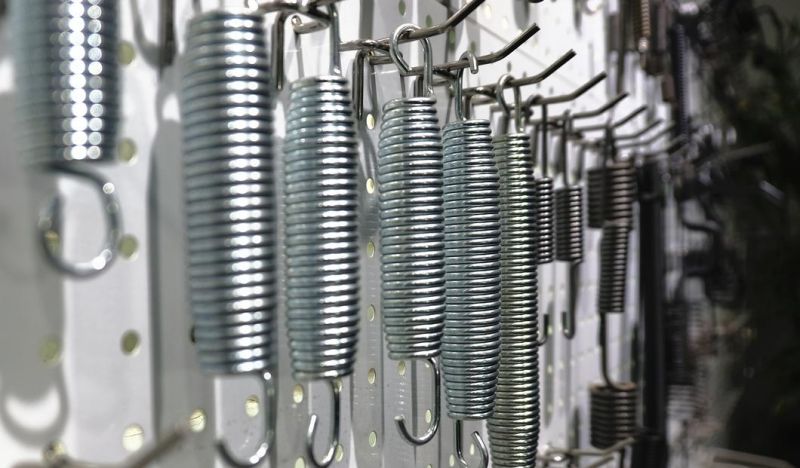

It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs.WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring Machine

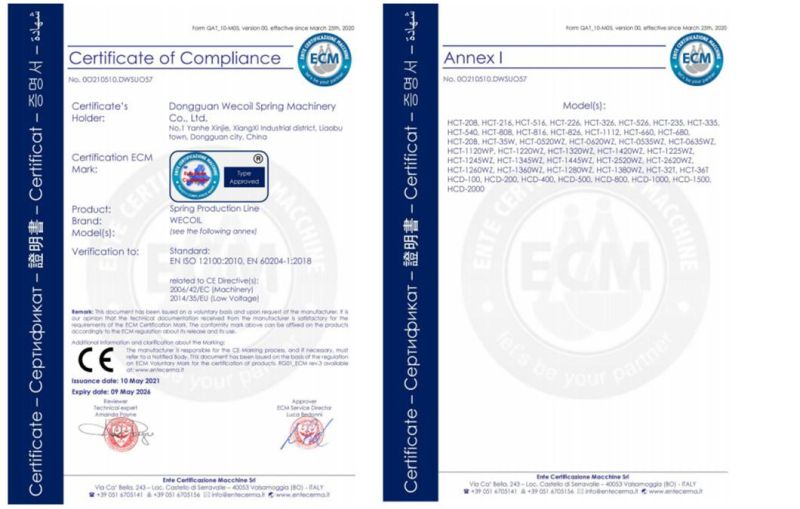

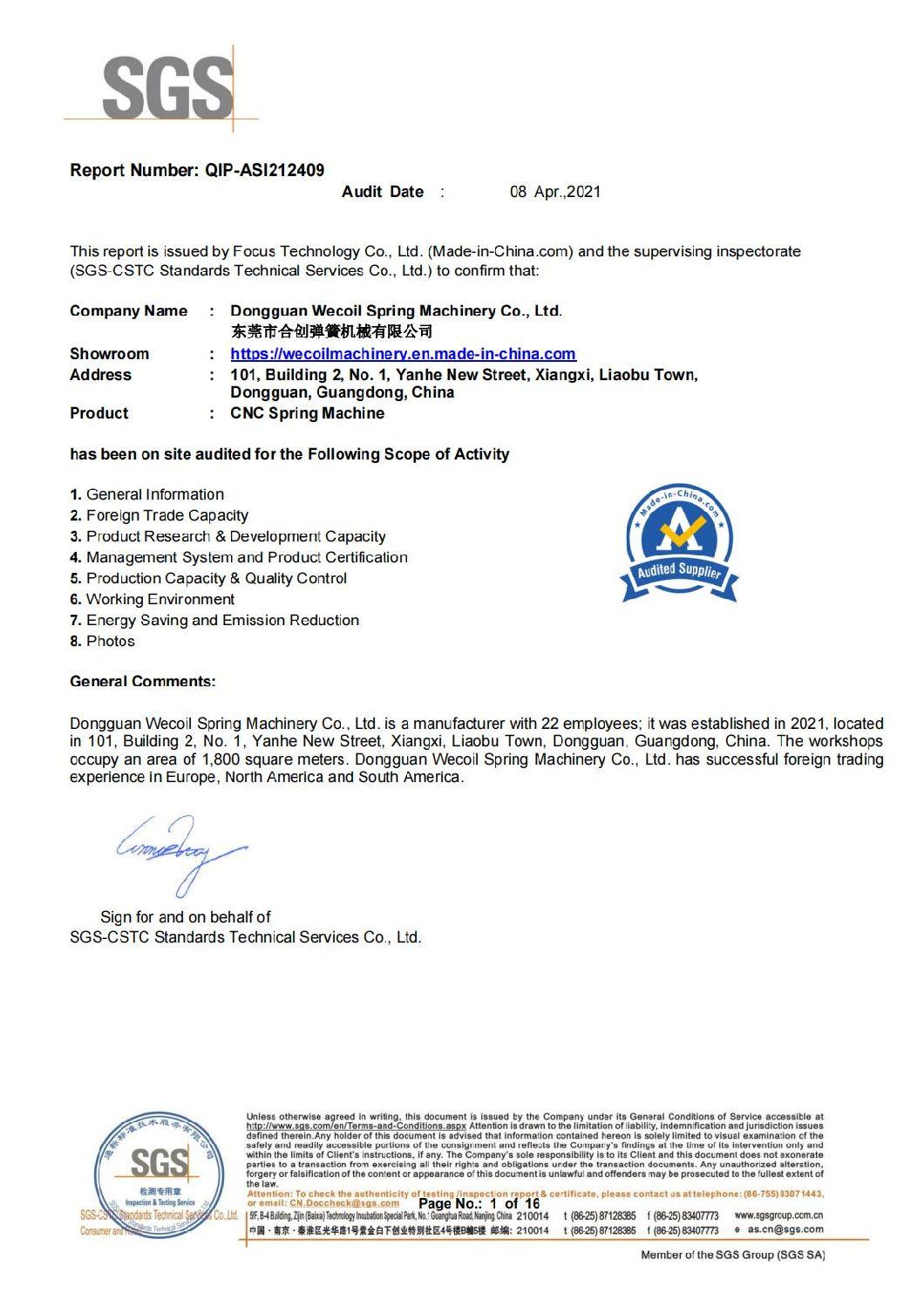

WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineCertificates
WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachinePackaging
WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring MachineWECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring Machine
Please feel free to consult us about your project, thank you!
