• Model NO.：WD1031
• Type：Hydraulic Bending Machine
• CNC Control Axis：Y1-Y2-X-R-Axis & Crowning
• Motor Power：Yaskawa
• Hydraulic System：Bosch-Rexroth Form Germany
• Ball Screw：Hiwin From Taiwan Brand
• Electrical Components：Schneider Electrical From French
• Delem CNC System：Delem Da53t
• Transport Package：Wooden Box
• Specification：8.1T
• Origin：China
• HS Code：84622990
• Production Capacity：130

Basic Info.

Model NO. WD1031 Type Hydraulic Bending Machine CNC Control Axis Y1-Y2-X-R-Axis & Crowning Motor Power Yaskawa Hydraulic System Bosch-Rexroth Form Germany Ball Screw Hiwin From Taiwan Brand Electrical Components Schneider Electrical From French Delem CNC System Delem Da53t Transport Package Wooden Box Specification 8.1T Origin China HS Code 84622990 Production Capacity 130

Product Description

CNC Hydraulic Press Brake

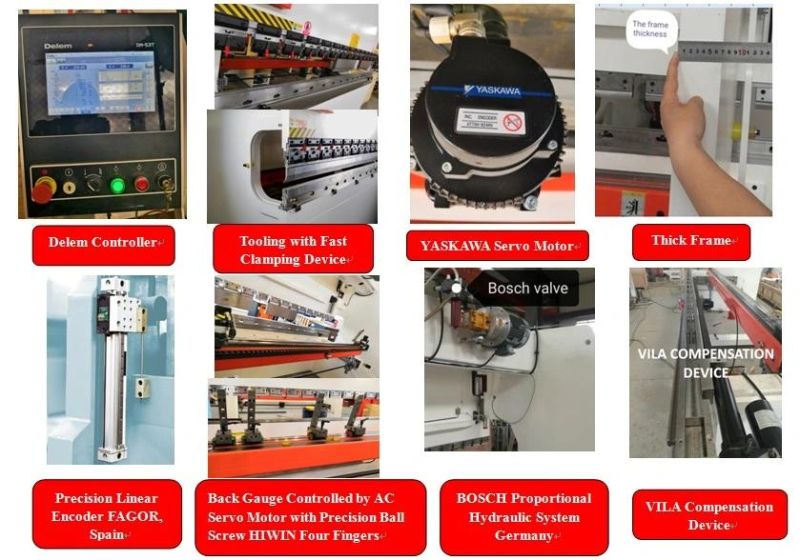

MAIN COMPONENTS

CNC System	DELEM-DA53 control system, Switzerland
Electrical components	Schneider, France / Omron, Japan
Grating Ruler	Fagor, Spain
Servo motor/Servo drive	Yaskawa, Japan
Foot switch	KF, China
Hydraulic System/(Assembly)	BOSCH/HOERBIGER, Germany
Ball Screw/ Linear guide	HIWIN/PMI/PYM from Taiwan
Seals	Walka, Japan

STANDARD CONFIGURATION

• Integrated into the modern aesthetic concepts of new industrial design, high quality production process, simple and generous appearance.
• The latest high frequency response hydraulic control technology, faster speed, high efficiency and more stable precision.
• Electric hydraulic servo system, full loop controlling the synchronization of the upper beam.
• Quip with VILA automatically crowning device on worktable and deformation compensation device on throat to make sure bending depth and precision.
• Optimizing the validation for the treatment frame and rigidity of whole machine .researching and applying the hydraulic compensation structure ensure precision bending processing.

TECHNICAL SPECIFICATION


Model:	Unit	WD100-3100
Control Axis		4 (Y1, Y2, X, R)
Bending force	Ton	100
Bending length	mm	3100
Distance between columns	mm	2600
Stroke	mm	200
Throat Depth	mm	400
Open Height	mm	471
WORKING SPEED:
Fast speed	mm/sec	180
Working speed	mm/sec	9
Return speed	mm/sec	180
CAPACITY:
Hydraulic oil standard	/	#46 Anti-wear hydraulic oil
Overall dimensions	mm	3265*1615*2700
Power supply		380V/7.5KW (As customer requirement)
Weight(Approx)	T	8.1

STRUCTURE CHARACTERISTICS AND STANDARD FEATURES
The frame, combined structure, has been heated processed and highly frequently vibrated.  Guarantee the whole precision, rigidity, excellent torsion and stability of the machine. The thick working table plate and ram give the assembly high rigidity. The linear and angle of the finished plate are the same.

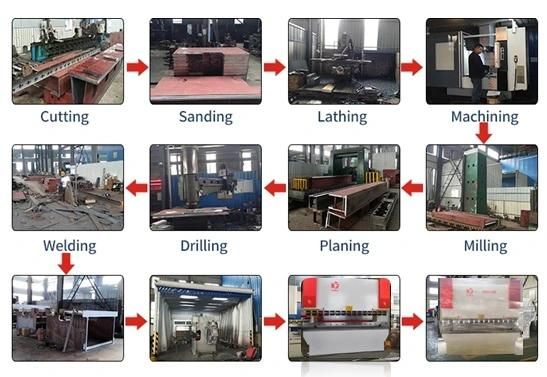

Processing Steps

Certificate

FAQ:
 1. Delivery time:
30-45 days according to different type.
2. Installation and commissioning time:
About 7 days.
3. Installation and commissioning issue:
We will send Kaifeng technicians to help with machine installation and commissioning, customer pays for round-trip airfare, local accommodation expenses.
4. Warranty time:
1 year after installation.
5. Payment term:
30% as prepayment balance 70% before delivery or L/C at sight.
6. We supply full English documents:
Including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.

WHY CHOOSE US?

1. China famous brand & top quality supplier.
2. Professional technical & service team.
3. Machine exported to many countries all over the world.
4. All the machine parts are international brand, quality guaranteed.
5. Customize & flexible products and service.

Welcome to visit our factory in Jinan!
