High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2000, CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-76CNC-2A-1S
  • Type：Pipe and Tube Bending Machine
  • Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
  • Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
  • Technical：Draw Bending,Drawing Bending+Booster,Rolling
  • Lubrication：Automatic Linear Guide,Mechnical Lubircate
  • Transport Package：1 PCS
  • Specification：4800X1200X1600mm
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-SB-76CNC-2A-1S Type Pipe and Tube Bending Machine Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Technical Draw Bending/Drawing Bending+Booster/Rolling Lubrication Automatic Linear Guide/Mechnical Lubircate Transport Package 1 PCS Specification 4800X1200X1600mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

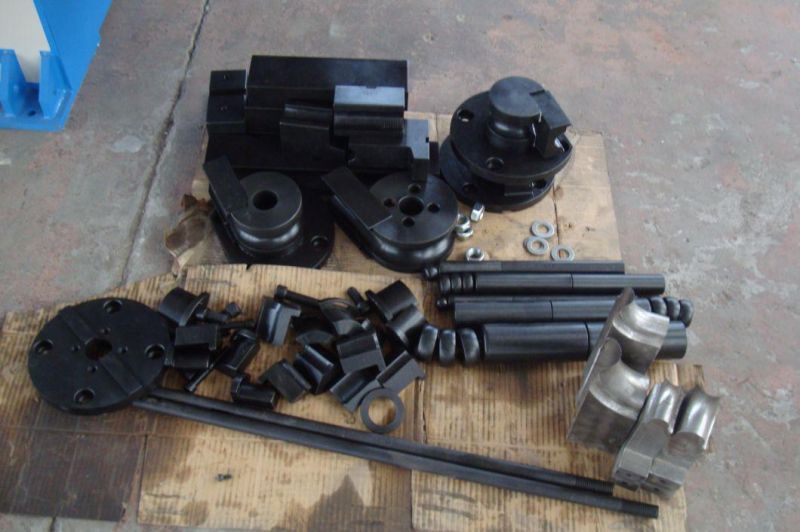

Brief Introduction on Pipe Bending Machine

Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.

Bending (Y-Axis): Controlled by Hydraulic.

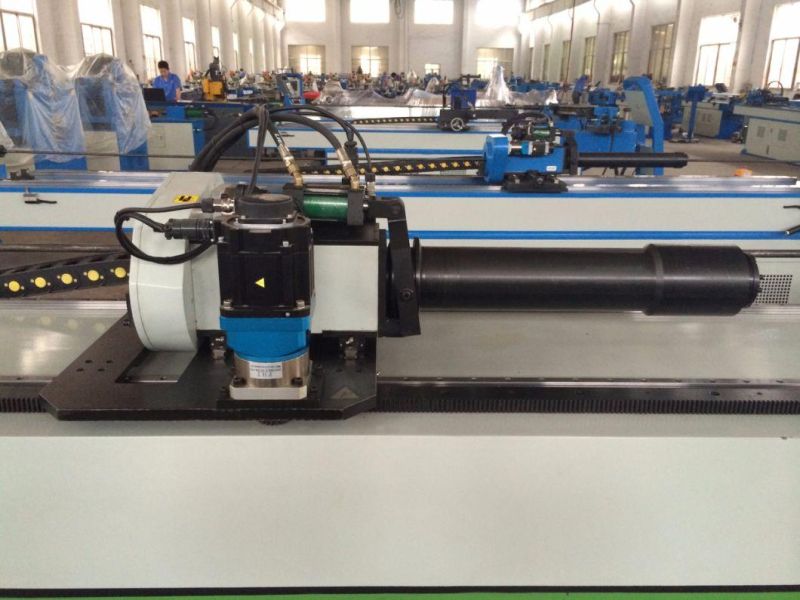

Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.GM-SB-76CNC Full-Auto Numerical Control
Single-Head Bending Machine
Model:76×2A×1S

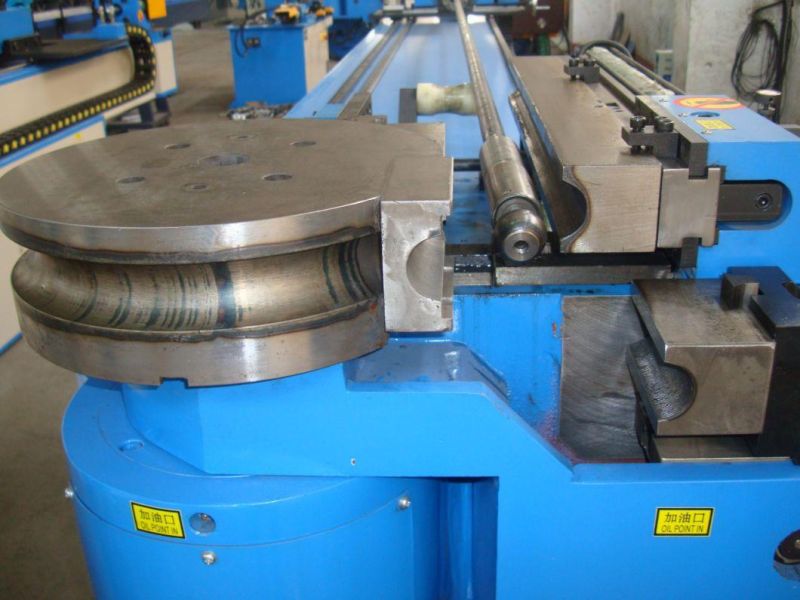

  • Machine Characteristics

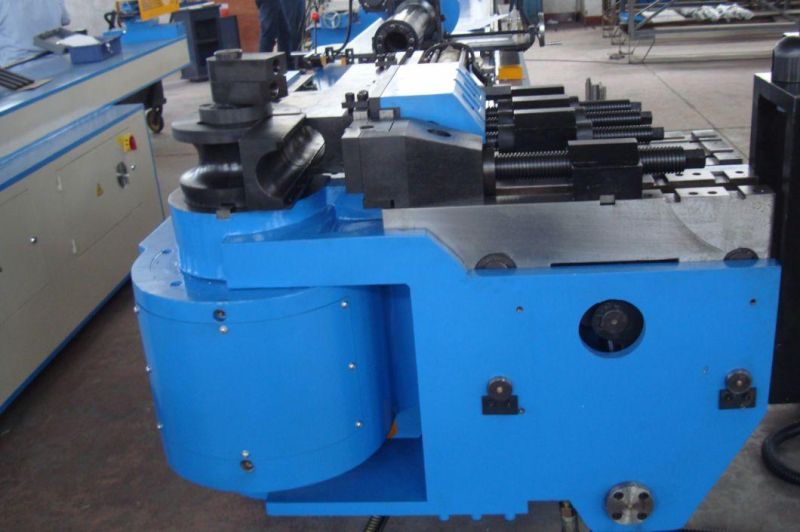

GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are bothe driven by  servo motor. Pipe bending(C axis) is hydraulic by cylinder.
  • Main Technical Parameter
Name UnitParameter
Max. Bending Capacitymm76*5
Bending Radius Rangemm30-350
Max. Bending Angle°190
Bending Speed °/sec30
Turning Speed°/sec160
Feeding Speedmm/sec800
Bending Precision°±0.10
Turning Precision°±0.10
Feeding Precisionmm±0.10
Turning Servomotor PowerkW1
Feeding Servomotor PowerkW1.5
Though Effective Distancemm4000
System Motor PowerkW7.5
Max. PressureMpa16
Oil Pump Delivery VolumeL25
L*W*H (Packaging Dimension)mm5300*1300*1500
Weight T 3.5

  • Configuration of Hydraulic and Electronic Control System

NameManufacturer
Hydraulic MotorSuzhou Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardSuzhou Boguan
CylinderShanghai Qifan
Oil tubeSuzhou Kejia
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Servo MotorJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerWenzhou Changxing
ContactorGerman SCHNEIDER(Imported)
Other Electric PartsGerman SCHNEIDER,Omron, Taiwan SHILIN(Imported)
High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)
High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)
High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)

High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)
  FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.

2. Q: How to choose the pipe/tube bending machines?

A: You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible

3. Q: What certificate do you have?

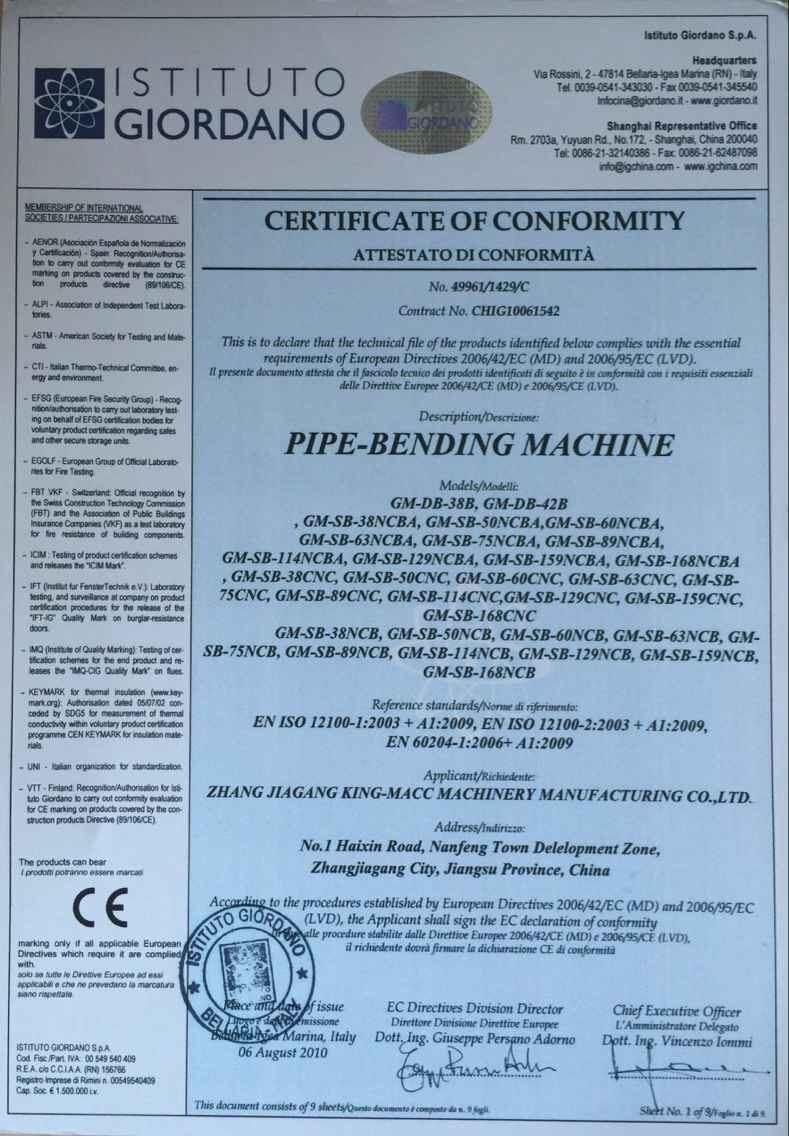

A: We have both ISO and CE certificate.
