• Model NO.：BWZ-F2
• Key Words：3D Channel Letter Bending Machine
• Function：Automatic Feeding, Slotting and Bending
• Applicable Material Alu=Aluminum：Flat Alu Folding Alu Channelume
• Max Material Width：100mm
• Max Material Thickness：0.8mm
• Slotting System：Motor Control
• Air Pressure：0.6MPa
• File Format：Dxf, Ai, Plt
• Transport Package：Plywood Case Package
• Specification：CE, SGS, TUV
• Trademark：BaoYuanTong
• Origin：Weifang, China
• HS Code：8479819000
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-F2 Key Words 3D Channel Letter Bending Machine Function Automatic Feeding, Slotting and Bending Applicable Material Alu=Aluminum Flat Alu Folding Alu Channelume Max Material Width 100mm Max Material Thickness 0.8mm Slotting System Motor Control Air Pressure 0.6MPa File Format Dxf, Ai, Plt Transport Package Plywood Case Package Specification CE, SGS, TUV Trademark BaoYuanTong Origin Weifang, China HS Code 8479819000 Production Capacity 200sets/Month

Product Description

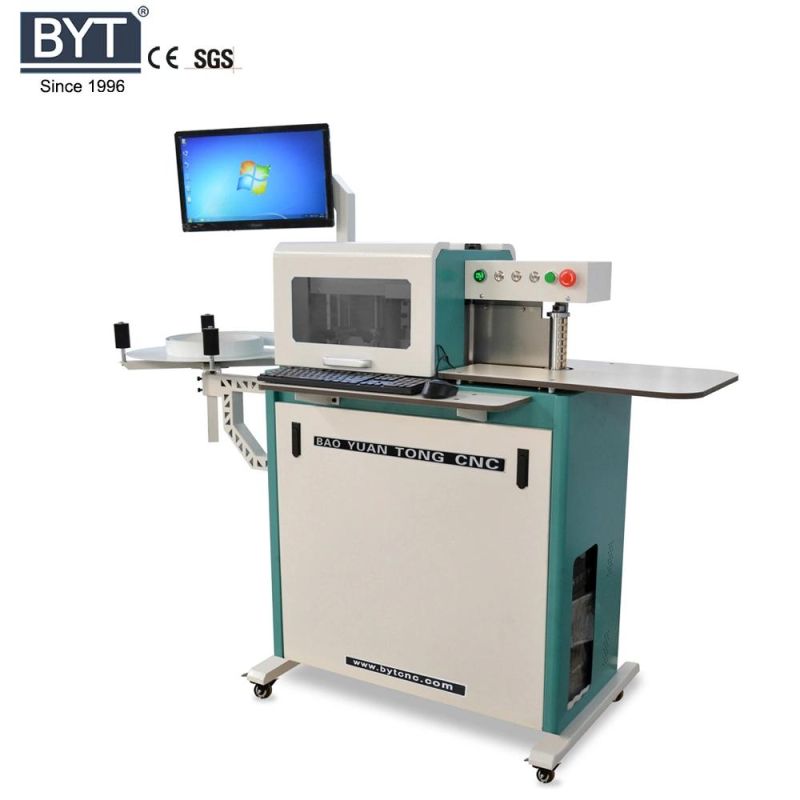

BYTCNC Automatic advertising LED signs making channel letter bending machine
Product Description

Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process flat aluminum material and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.

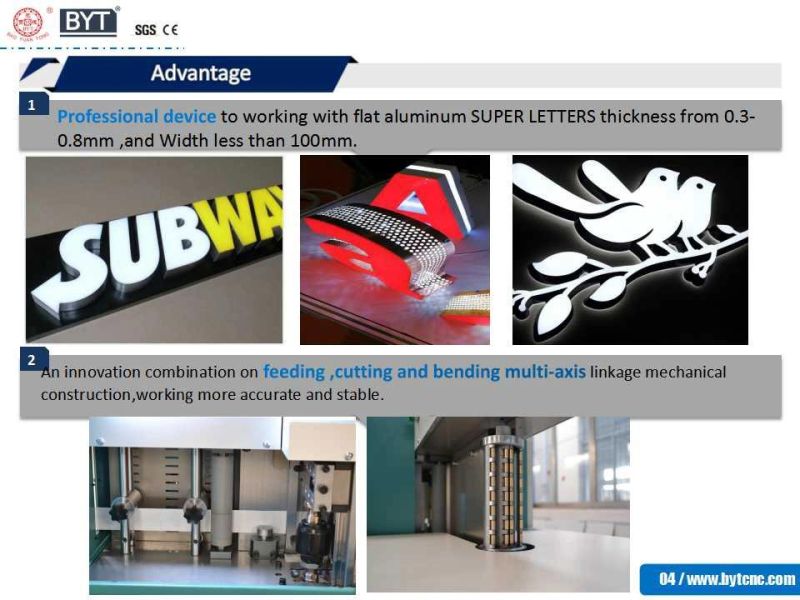

Whole machine feature:1.Professional device to working with flat aluminum SUPER LETTERS thickness from 0.3-0.8mm ,and Width less than 100mm.
2.An innovation combination on feeding ,cutting and bending multi-axis linkage mechanical construction,working more accurate and stable.

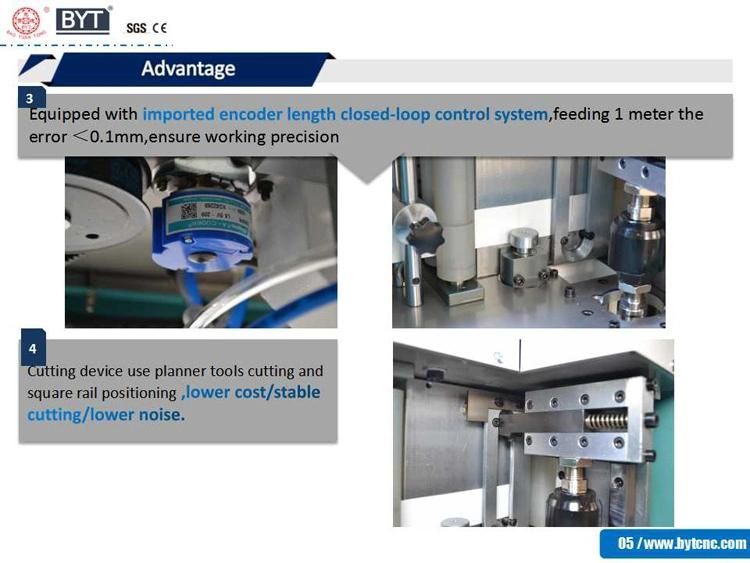

3.Equipped with imported encoder length closed-loop control system,feeding 1 meter the error <0.1mm,ensure working precision
4.Cutting device use planner tools cutting and square rail positioning ,lower cost/stable cutting/lower noise.

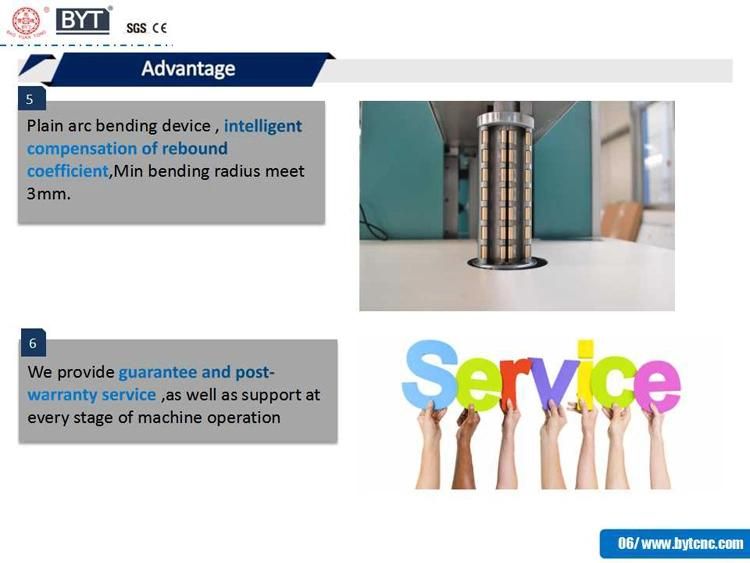

5.Plain arc bending device , intelligent compensation of rebound coefficient,Min bending radius meet 3mm.
6.We provide guarantee and post-warranty service ,as well as support at every stage of machine operation .

 BYT CNC Automatic 3D Channel letter bending machine for advertising acrylic led sign aluminum profile coil trim bender tools

Technical data:


Model	BWZ-F2
Function	Automatic feeding,slotting and bending
Applicable Material     Alu=Aluminum	Flat Aluminum
Material Width	Flat Alu:≤100mm
Material Thickness	Aluminum:0.3~0.8mm
Bending Radius	3mm
Feeding	φ30mm feeding wheel +Encoder
Slotting System	Planner slotting
Bending	Coupled extrusion-general arc bender
Control System	ADT
Power	300W
Air Pressure	0.4-0.8MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	110
Overall Size(mm)(L*W*H)	1560*600*1500
Gross Weight (kgs)	150
Package Size(L*W*H))	1000*700*1400

Why Choose Us
BYT CNC Automatic 3D Channel letter bending machine for advertising acrylic led sign aluminum profile coil trim bender tools
 Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5.Provide one-stop procurement ,let customer's purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

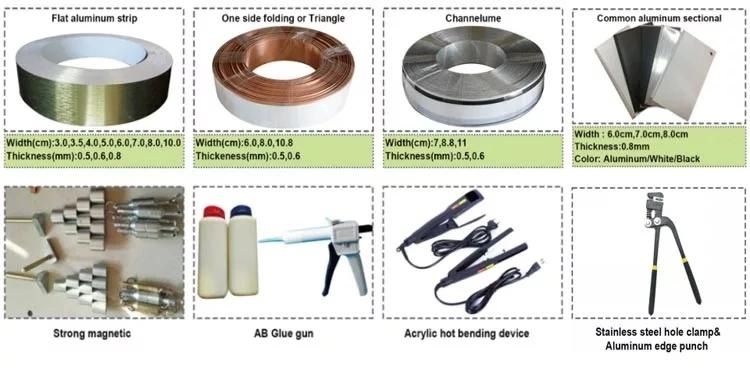

Optional parts
1) Aluminum profiles : We have different type and color aluminum profiles for choose ,when you need I give you quotation sheet.
2) Computer : When this machine working ,there is control card need install in a computer . For control system no limited .
3) Compressor : Need 0.3-0.6Mpa Air compressor working .


Feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture ,listen user's voice)

BYT CNC Automatic 3D Channel letter bending machine for advertising acrylic led sign aluminum profile coil trim bender tools
Package and delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.

FAQ
1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .
When you pay for the deposit , We will arrange producing which about 7-15days delivery .
