Chinese Best Electric and CNC Hydraulic Pipe Rolling Bender, Wheelbarrow 3D Full Automatic Profile or Furniture Pipe Tube Bending Machine (GM-SB-38CNC-A-1S)
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：GM-SB-38CNC-2A-1S
- Type：Pipe and Tube Bending Machine
- Transport Package：Iron Frame
- Specification：3200X1100X1800mm
- Trademark：GMACC
- Origin：China
- HS Code：8462219000
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-38CNC-2A-1S Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification 3200X1100X1800mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description

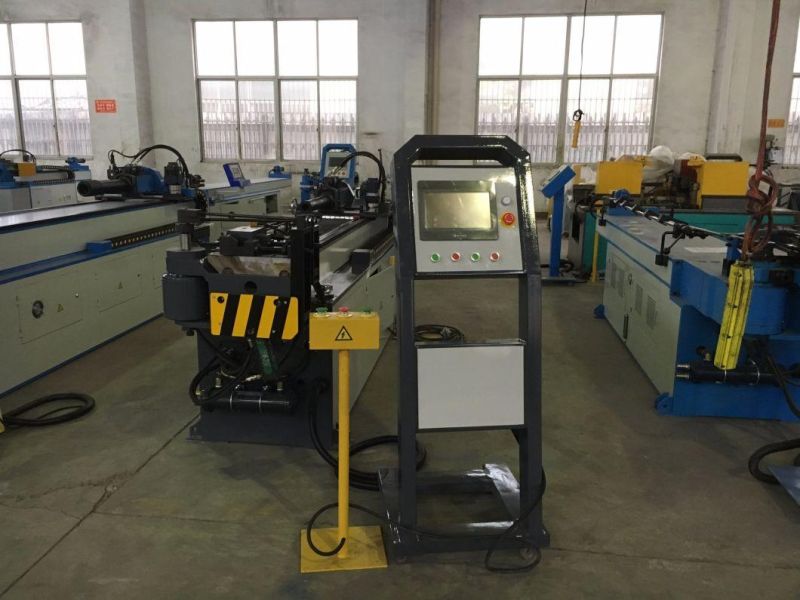

GM-SB-38CNC-2A-1S Full-Auto Numerical ControlSingle-Head Bending Machine
Model:SB38×2A×1S
Machine Characteristics

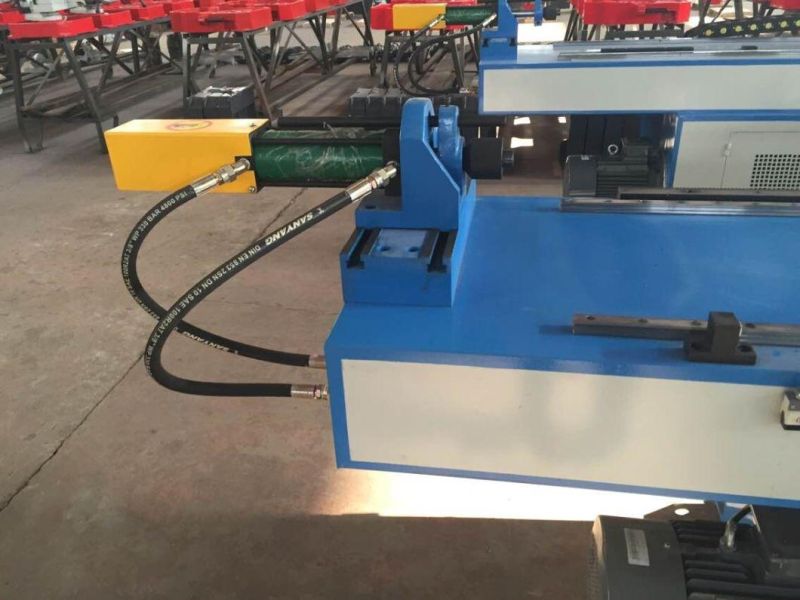

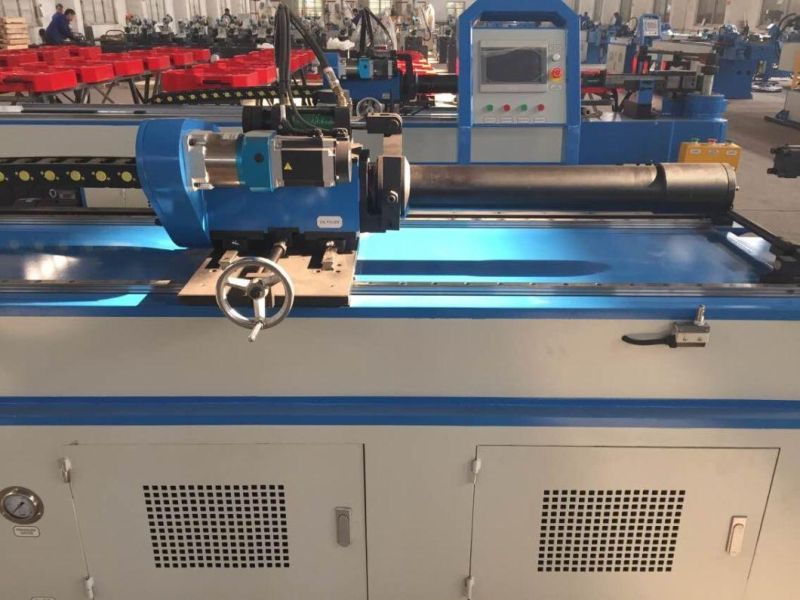

SB-SB-38CNC-2A-1S Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic by cylinder.
Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ¢38*2 |
| Bending Radius Range | mm | 20-200 |
| Max. Bending Angle | ° | 190° |
| Bending Speed | °/sec | 60 |
| Turning Speed | °/sec | 200 |
| Feeding Speed | mm/sec | 1000 |
| Bending Precision | ° | ±0.10 |
| Turning Precision | ° | ±0.10 |
| Feeding Precision | mm | ±0.10 |
| Turning Servomotor Power | kW | 0.4 |
| Feeding Servomotor Power | kW | 1 |
| Though Effective Distance | mm | 3200 |
| System Motor Power | kW | 4 |
| Max. Pressure | Mpa | 16 |
| Oil Pump Delivery Volume | L | 14 |
| L*W*H (Packaging Dimension) | mm | 3500*700*1300 |
| Weight | T | 2.0 |
| Name | Manufacturer |
| Hydraulic Motor | Siemens Beide or Suzhou Runmali |
| Hydraulic Pump | Wuxi Tuoli |
| Hydraulic Valve | Japan Yuken(Imported) |
| Oil way Board | Suzhou Boguan |
| Cylinder | Shanghai Qifan |
| Oil tube | Suzhou Kejia |
| Touch screen | Taiwan Weinview(Imported) |
| PLC | Japan Mitsubishi(Imported) |
| Servo Motor | Japan Mitsubishi(Imported) |
| Angle controller | Japan Nemicon(Imported) |
| Switch power | Wenzhou Changxing |
| Contactor | German SCHNEIDER(Imported) |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3. Q: What certificate do you have?
A: We have both ISO and CE certificate.
4. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to
Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to
Wuxi railway station.
