MB8 2X500t5000mm CNC Light Pole Plate Folding Machine for Tandem Press Brake

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.

Warranty：2-year
Condition：New

Base Info

Model NO.：MB8 2X500T5000mm
Certification：CE
Automation：Automatic
Suitable for：Aluminum, Alloy, Carbon Steel, Stainless Steel, Carbon Steel,Mild Steel
Type：Press Brake

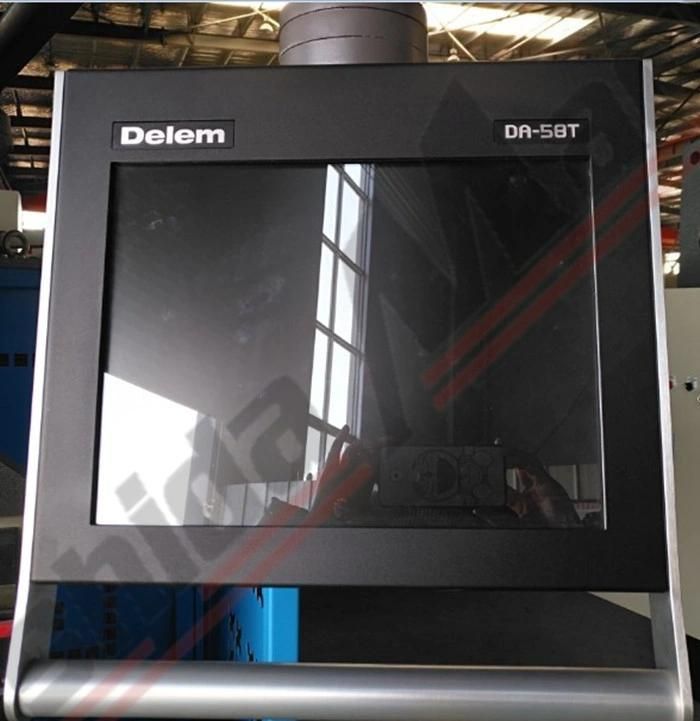

CNC System：Da58t
Hydraulic Valve：German Bosch-Rexroth
Main Motor：Siemens
Electrics：Schneider Electrics
Oil Pump：America Sunny
Backguage：Taiwan Ball Screw and Linear Guide
Axis：Y1, Y2, X and R
Crowning：Hydrauilc,Mechanical
Weight：90000kg
Factory Origin：Yes
Transport Package：Full Container
Specification：2x5500x2700x5000mm(LxWxH)
Trademark：Jiashida Machine
Origin：China
HS Code：8462219000
Production Capacity：100 Sets,Month

Description

Basic Info.

Model NO. MB8 2X500T5000mm Certification CE Automation Automatic Suitable for Aluminum, Alloy, Carbon Steel, Stainless Steel, Carbon Steel/Mild Steel Type Press Brake CNC System Da58t Hydraulic Valve German Bosch-Rexroth Main Motor Siemens Electrics Schneider Electrics Oil Pump America Sunny Backguage Taiwan Ball Screw and Linear Guide Axis Y1, Y2, X and R Crowning Hydrauilc/Mechanical Weight 90000kg Factory Origin Yes Transport Package Full Container Specification 2x5500x2700x5000mm(LxWxH) Trademark Jiashida Machine Origin China HS Code 8462219000 Production Capacity 100 Sets/Month

Product Description

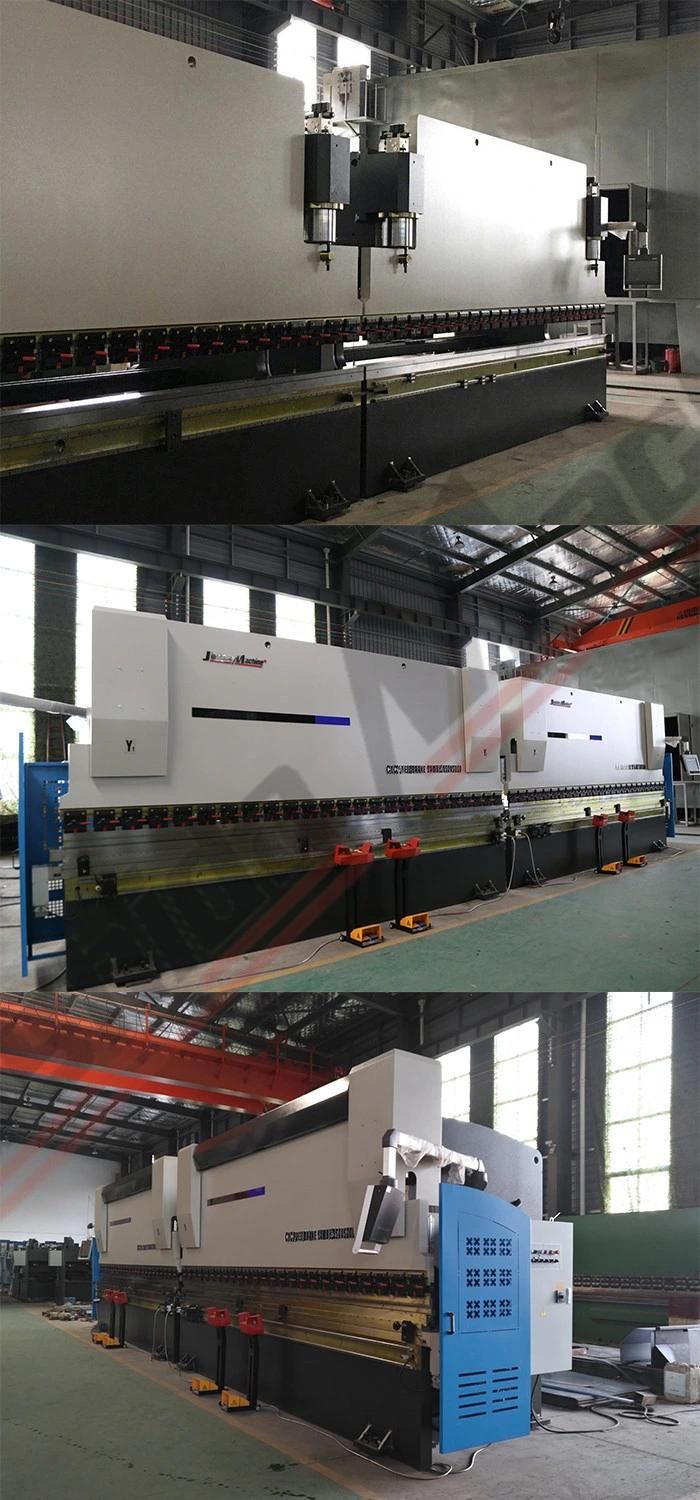

MB8 2X500t5000mm CNC Light Pole Plate Folding Machine for Tandem Press Brake

MB8 Series CNC Press Brake Machine Features:

1.Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance.

2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.

3.Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series PRESS BRAKES.

4.Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation.

5.MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option.

6.Press brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency, maintaining the parallel state of the worktable.

7.According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all workpieces angles.

8.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.

Backguage

X and R axis

Taiwan HIWIN Ball Screw and Linear Guide to guarantee the precision

Servo Motor controlled

Hydraulic Crowning/Compensation

The machine adopts the "sandwich" structure, the support plate is in front and back, and the vertical plate is used in the middle. The compensation cylinder is installed in the vertical plate and the front and back support plate to support the vertical plate in the middle stage.

When working, the lower compensation cylinder always has the force acting on the vertical plate of the workbench, which is equal to the force of the main cylinder to the worktable, and produces a curve which always rises upward. It compensates for the deformation of the vertical plate and slider on the workbench.

It is composed of several groups of 3D surfaces with different slopes. It makes up for the shortcomings of the traditional hydraulic compensation in compensating the blind area, and the compensation curve is closer to the slide plate deformation curve, thus greatly improving the machining accuracy of the bending machine.
