• Model NO.：KY-RBM-5
• Processing Diameter：4-12 mm
• Wire Feeding Speed：80m,Min
• Accuracy of Length：±1mm
• Angular Precision：±1°
• Transport Package：Plastic Package with Steel Rope to Fix
• Specification：12500*1050*2015 mm
• Trademark：KAIYE
• Origin：He Bei Anping
• HS Code：8462219000
• Production Capacity：20 Set,Month

ModelKY-RBM-2KY-RBM-3KY-RBM-4KY-RBM-5Single wire diameter6-10mm6-12mm6-10mm6-12mmDouble wire diameter6-8mm6-10mm6-8mm6-10mmAngle of bending+ 90°+ 360°+ 180°+ 360°Wire feeding speed50m/min80m/min50m/min80m/minBending speed800°/sec1000°/sec800°/sec1000°/secPower transmissionReducer Synchronous belt
(Double)Reducer Synchronous belt
(Double)Feeding wire motor Asynchronous servo motor
7.5 kwSynchronous servo motor
18 kwAsynchronous servo motor
11 kwSynchronous servo motor
18 kwBending motor Asynchronous servo motor
4.0 kwSynchronous servo motor
7.5 kwAsynchronous servo motor
5.5 kwSynchronous servo motor
7.5 kwCutting motorAsynchronous motor
4.0 kwAsynchronous motor
4.0 kwAsynchronous motor
4.0 kwAsynchronous motor
4.0 kwRebar hook support rack lengthNONO9 meter9 meterAir compressorNOYESNOYESAccuracy of length±1mm±1mm±1mm±1mmAngular precision±1°±1°±1°±1°Work temperature-5ºC-40ºC-5ºC-40ºC-5ºC-40ºC-5ºC-40ºCMachine weight950 kg1350kg1500kg1800kgDimensions (mm)2800*1000*15003500*1050*201511800*1000*150012500*1050*2015
Our Advantages

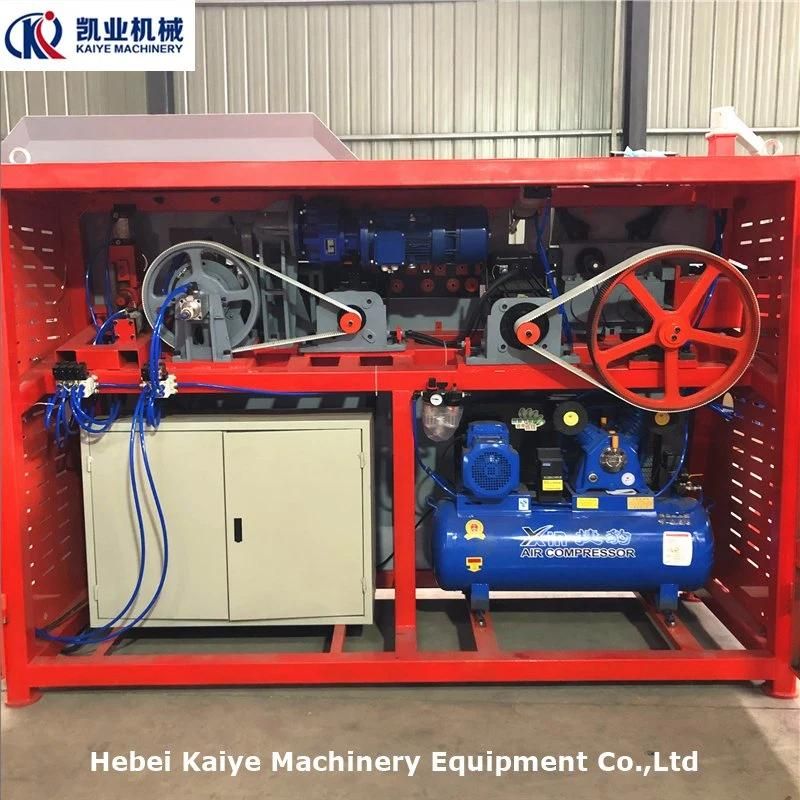

Mechanical structure
Our mechanical structure design is reasonable, the box is sealed strictly, less oil pollution. It can keep the box clean for a long time and prolong the service life of the machine.


Rebar storage system
The rebar storage system is designed with large tonnage, and the bearing capacity can reach 3 tons.

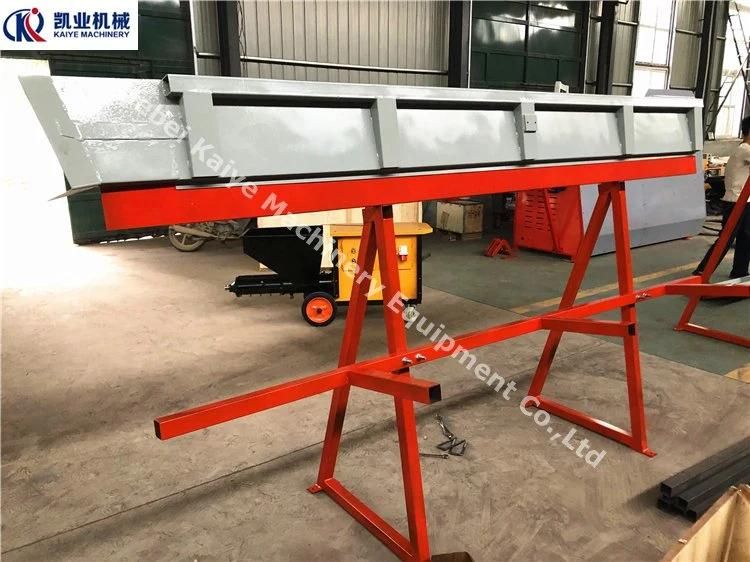

Backstraps frame
The frame can also be equipped with machinery to facilitate the processing of different types of steel bars. The length is divided into 3 meters, 6 meters and 9 meters.

After Sales Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Free airport and train station pick-up service.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

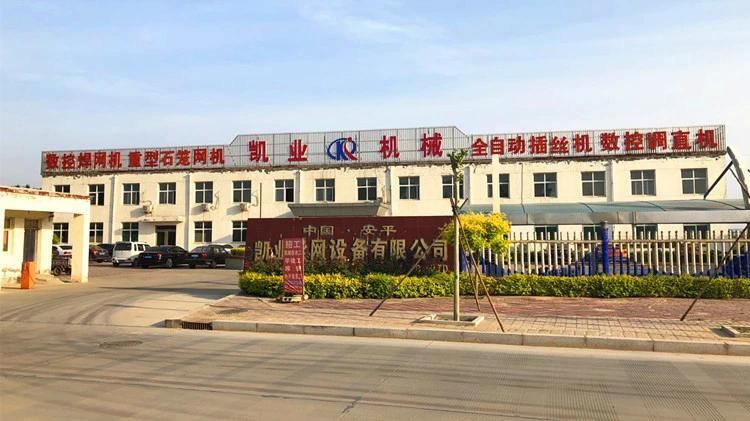

Company Introduction


Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.

The main products of the company are wire mesh welding machine, reinforcing mesh welding machine, fence mesh welding machine, 3D EPS panel welding machine, gabion mesh machine, hexagonal mesh machine, wire drawing machine, galvanized wire production line, grassland fence machine, chain link fence machine, rebar bending machine, barbed wire machine etc.

After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.

FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.

Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
