• Model NO.：ZZPC63
• Brand Name：Zhengzhuo
• Model Number：Zzpc63
• Production Capacity：40 Set,Sets , Year

Basic Info.

Model NO. ZZPC63 Brand Name Zhengzhuo Model Number Zzpc63 Production Capacity 40 Set/Sets / Year

Product Description

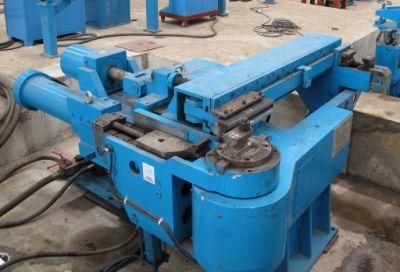

Coils are a major component within a boiler, our tube bending machines are designed to conform with industry requirements. The tube bending machine can be used as a standalone equipment or part of the coil production line. It can achieve a bending radius of 1D, maintaining ovality at ≤ 10% and thinning ≤ 12%. Below are our standard bending systems, however we have experiences in custom built units handling larger tubes commonly seen at petrochemical plants and pipelines. Type C standalone tube bending machines are another specialty product, which is highly efficient, durable and convenient in bending small radius tubes.

Consists of

- Electrical control systems
  Control box, operator panel
- Hydraulic systems
  Hydraulic station, hydraulic cylinder, proportional valve, oil pipes
- Mechanical and bending systems
  Guide rail, machine base, Rotating arm, booster, clamp die, press die


Tube Diameter	25 - 63 mm
Tube Wall Thickness	3 - 10 mm
Bending Radius	25 - 220 mm
Bending Speed	0 - 3 r.p.m
Bending Precision	±0.1°
Bending Range	190°
Min. bending radius	1D (T/D ≥ 10%)
