• Model NO.：100,3200
• Model：Zyb-100t,3200
• Normal Force：1000 Kn
• Bending Length：3200 mm
• Raw Material：Ss, Iron, Mild Steel, Galvanised Steel, Alum Carb
• Poles Distance：2700 mm
• Throat Depth：400 mm
• Overall Dimensions：3500X1580X2500
• Main Power：7.5 Kw
• Transport Package：Seaworthy Plastic Package with Films or Wooden PAC
• Specification：3500x1580x2500
• Trademark：ZYMT
• Origin：China
• HS Code：846229900
• Production Capacity：180,Month

Model:

Unit

ZYB-100T/3200

 Control Axis

Y1,Y2, X+V -axis

Bending force

Ton

100

Bending length

mm

3200

Distance between columns

mm

2700

 Stroke

mm

200

Throat Depth

mm

400

Open Height

mm

450

WORKING SPEED:

Fast Speed

mm/sec

120

Working Speed

mm/sec

10

Return Speed

mm/sec

 120

CAPACITY:

Hydraulic oil standard

/

#46  Antiwear hydraulic oil

Overall dimensions

mm

3500*1580*2500

Main Motor Power

kw

7.5

Power supply

380V/50HZ/3PH

About Us of  Hydrauilc Press Brake

Certificate of Economic Hydrauilc Press Brake

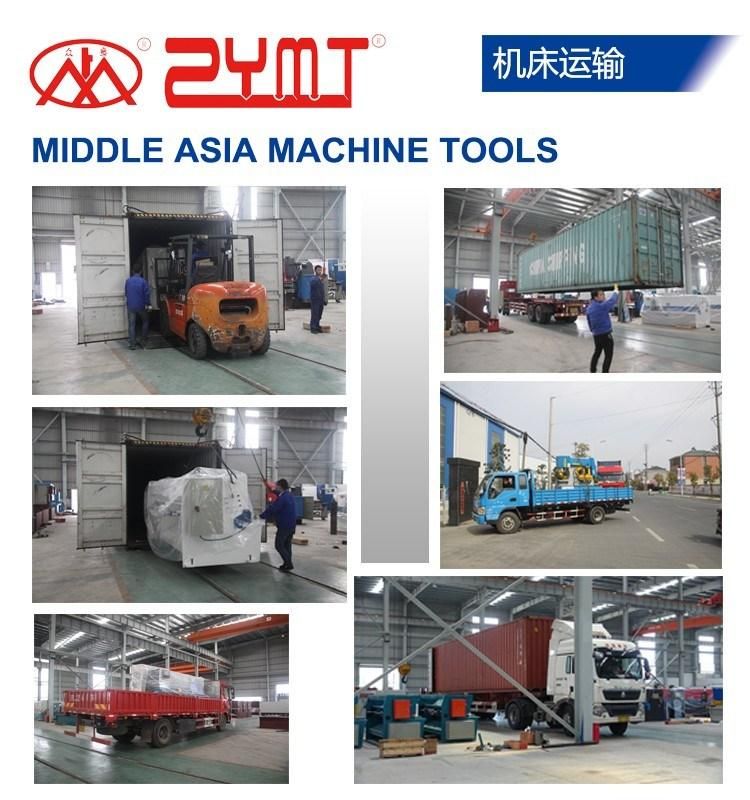

Packing and Transportation of Economic Hydrauilc Press Brake

Our Service

24 hours telephone line is available      Experienced service technician team     Support in hard work solution.

for any question.                                    is available.

FAQ of Economic Hydrauilc Press Brake

1, Q: Are you factory or trading company?
    A: We are factory of press brake(bending) machine ,shearing machine and fiber laser cutting factory was established in 1988, with more than 30 years producing experience.

2, Q: What's your payment?
    A: T/T, 30% deposit in advance, 70% balance before ship.
Irrevocable L/C at sight
3, Q: What's about delivery time?
    A: For small model press brake, usually 15-30 days after received 30% deposit.
For big model press brake, usually 40-120 days after received 30% deposit.
4, Q: We don't know how to use the machine, can you help us?
    A: 1, We will send machine operation manual with machine;
        2, If customer require, we will send technician to your factory teach you how to use it and maintain it;
        3, You can send technician or workers to our factory, we will teach then how to use and maintain the machine.
5, Q: We are worry about the machine quality?
    A: Our machine warranty is 2 years. Before ship the machine, we will test it about 7-10 days, when you received it,you can use it directly, no need test it again.
