• Model NO.：WE67K-100,3200
• Product Name：High Precision Zdmt Synchro CNC Press Brake
• Model：We67K-100,3200
• Max Bending Capacity：1000 Kn
• Max Bending Length：3200mm
• Transport Package：Steel Fixed
• Specification：WE67K-100,3200
• Trademark：ZDMT
• Origin：China

Basic Info.

Model NO. WE67K-100/3200 Product Name High Precision Zdmt Synchro CNC Press Brake Model We67K-100/3200 Max Bending Capacity 1000 Kn Max Bending Length 3200mm Transport Package Steel Fixed Specification WE67K-100/3200 Trademark ZDMT Origin China

Product Description

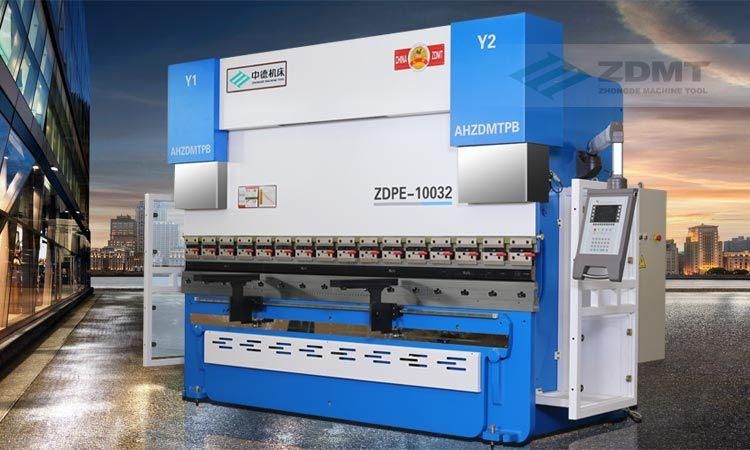

HIGH PRECISION ZDMT Synchro CNC Press Brake ZDPE-10032 (WE67K-100/3200)

Main functions and features

· Electric hydraulic proportinal servo synchronization, ensuring repeated accuracy.

· Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.

· Lower worktable has compensation device to anti deflection & upper tool has wedge compensation device.

· Holand Delem CNC control system, linear scale, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.

· Ram strok(Y1, Y2),backgague (X, R, Z) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.

· Multi-axis controlling allows this type of press brake to be designed and manufactured into a soft fabrication centre.

Related configuration with details

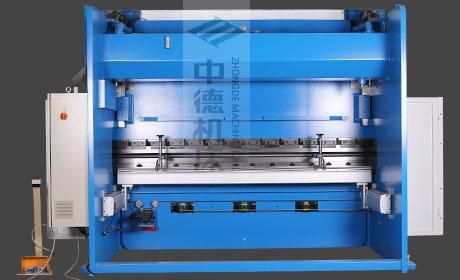

· Rear view of Synchro CNC press brake ZDPE-10032


· Brand new integrated backgauge system with extra thick beam for high parallelism, rigidity and durability
· Totally sealed design of X axis transmission for protecting inside ball screw and linear rail and achieving high precison and reducing maintenance
· Servo motor and steel wire belt are used for high controlling accuracy, positioning precision and lower noise.

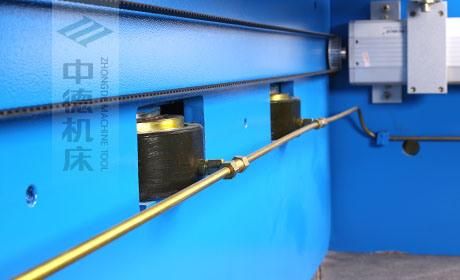

· 3 hydraulic cylinder are used for crowning system to reduce angle deflection on middle of plate


· Schneider electrics are adopted for reliability and longer lifespan

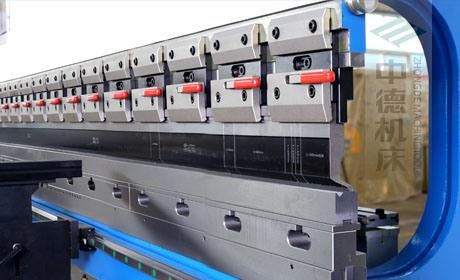

· Highly-precise CNC tooling and quick clamping are used for extra precision, durability and fast tool changing.

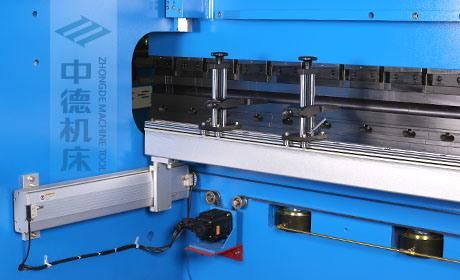

· Imported brand grating scale for no delay feedback of Y axis data and sensative transducing
· Imported brand hydraulics, stable, resistant to high tempareture and high pressure, persistent on fine working accuracy

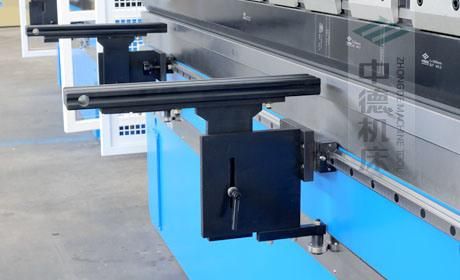

· Double sliding front support arm, horizontally movable for easy shift between single person or two persons working standing postion.


· Vertically adjustable finger stopper sliding on beam of double liner guide rail. Vertical manual adjustment for apply on different tools
