Water Jet Cutting Machine with Direct Drive Pump DDP-30

Shanghai Yuanhong Ultra High Pressure WaterJet Technology Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, 10004
  • Condition：New
  • Control：Automatic
  • Application：Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Foam Titanium
  • Power Source：Electric
  • Style：Cantilever

Base Info

  • Model NO.：DDP-30
  • Type：Three-Axis
  • Name：Yh Gantry Series Water Jet Cutting Machine
  • Transport Package：Wooden Case
  • Specification：YH4020series
  • Trademark：YuanHong
  • Origin：China
  • Production Capacity：50sets,Month

Description

Overview cutting tablemodel13132515302040206020customized sizestructuregantry water cutting platform/cantilever series cutting platformtravelX Axis1300mm2500mm3000mm4000mm6000mm  Y Axis1300mm1500mm2000mm2000mm2000mm speedMax.move speed (x axis and y axis)6000mm/minMax.move speed (z axis)1000mm/minAccuracy Positing Accuracy0.127mmRepeat Accuracy±0.076mmWater tank maximum Loading Capacity300Kg/m2Cutting head

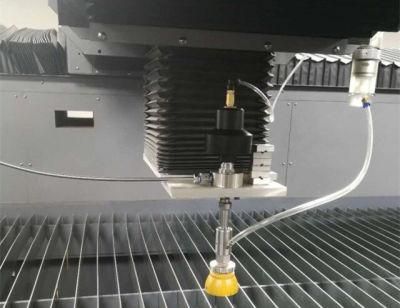

3 axis / 5 axis

Movement : Linear motion/Rotary motion

cnc controller



15 inch LCD montior

Support DXF and NC code file

Software: Windows 7

Resistance of the shoch and electro-magntic

the key function

Forward & Backward processing function

Even pace control function

Small arcs speed auto processing function

Circle processing function

Partial and smooth processing modes

aabrasive feeder

Max. inlet air pressure : 0.2-0.4 Mpa

Min. inlet air flow:0.028m3/min

Abrasive capacity:170 L

features

Air valve to prevent jams and breakages

Auto control with CNC auxiliary function

Self sealing

Slightly adjust the FLOW

intensifier pump

Reted power : 50HP (37 KW)

Max.pressure : 60000psi (4137 bar)

Control voltage and cuttent : 24DC,10AMPS

Ambient temperature : 5-40 ºC

Fuel tank capacity :114L

Cooling flow : 11.4L/MIN

Attenuation : 1L

Long : 1473 MM

Width : 1205 MM

High : 1056MM

direct drive pump

Reted power : 30HP (22KW)

Output pressure : 55000psi

Max.pressure : 60000psi (4137 bar)

Air: 80-120psi

Operating voltage and power:210-240/360-420V 50HZ

Ambient temperature : 5-40 ºC

Min.inlet water : 60psi 1 gallon/min.

Pump speed: 720 rmp

Fuel tank capacity : 2.6 L

Weight :700kg Major Products  WaterJet Spare Parts  WaterJet Cutting Head  WaterJet Cutting Pump WaterJet Cutting Machine Detail as follow : 60k WaterJet Intensifier   Parts 87K  Intensifier Spare Part

 60K

WaterJet Cutting Head Parts

87K WaterJet Head Parts  Direct Drive Pump Parts 50hp,60hp,100hp WaterJet Pump

 60k ,87k

WaterJet Intensifier Pump

 WaterJet Direct Drive Pump Abrasive Feeder System WaterJet Controller System  WaterJet High Pressure Pipe  High Pressure Pipe Fitting Coupling,Elbow ,Tee,Cross ,Adapter,Insert ,Collar ,Nut

Packaging & Shipping

Water Jet Cutting Machine with Direct Drive Pump DDP-30

Certifications

Water Jet Cutting Machine with Direct Drive Pump DDP-30Water Jet Cutting Machine with Direct Drive Pump DDP-30Water Jet Cutting Machine with Direct Drive Pump DDP-30



 Waterjet cutting machine is made up of 4 main components: Cutting table, CNC controller, Auto abrasive feeder, Intensifier pump. pls contact me any time. Welcome.
