Hydraulic bending machine Press Brake machine WC67Y with CE standard

Shaanxi HAVEN Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO 9001:2000, ISO 9001:2008, CE
  • Automation:Semi-Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Hydraulic Bending Machine
  • Control System:E21 Digital Readout From Estun

Base Info

  • Model NO.:WC67Y-200,3200
  • Application:Machinery & Hardware
  • Type for Fold-bending Machine:CNC Fold-bend Machine
  • Rated pressure:2000KN
  • Working table length:3200mm
  • Transport Package:Steel Pallet
  • Specification:CE Standard
  • Trademark:HAVEN
  • Origin:China
  • HS Code:8459
  • Production Capacity:50units,Month

Description

Basic Info.

Model NO. WC67Y-200/3200 Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Rated pressure 2000KN Working table length 3200mm Transport Package Steel Pallet Specification CE Standard Trademark HAVEN Origin China HS Code 8459 Production Capacity 50units/Month

Product Description

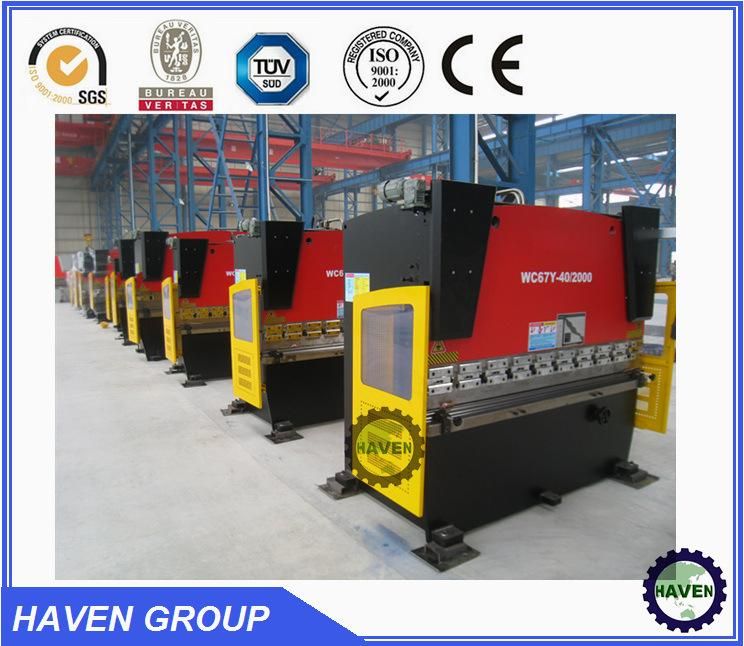

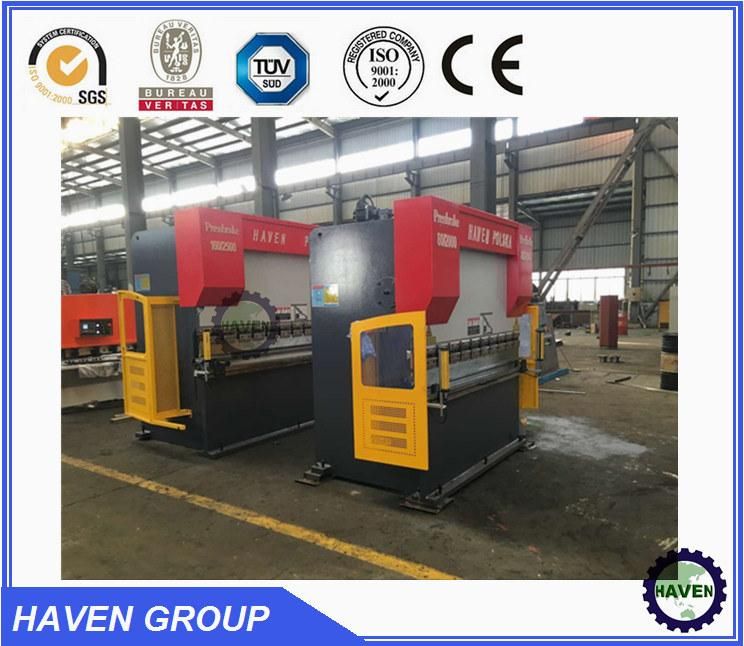

Hydraulic bending machine Press Brake machine WC67Y with CE standard

Hydraulic Press Brake WC67Y
Hydraulic press brake main function and completed:
Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
Hydraulic top-drive, steadiness and reliability
Mechanical stop, steel torsion bar to maintain synchronization, high precision;
Motorized-adjusting device of back-gauge and ram's stroke, fine adjusting by hand wheel, numerical display;
Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the machine above 250tons;
Travel limit protection.
Remote pedal control device
Full machine guarding with safety interlocker.
Duplex linked press brake is available as per client's demand.
Electric components are from SIEMENS
Oil-seal rings are imported from Japan
NC control system are imported from DELEM, Netherland ( NC control system is at extra cost )

Main specification:


Model
Nominal
Pressure
(KN)
Length of
table(mm)
Distance
Between
Housing (mm)
Throat
Depth
(mm)
Stroke
(mm)
Open
Height
(mm)
Main
Motor
(kW)
Dimensions
(L x W x H) (mm)
weight
(t)
40/20004002000160020011033542545x1510x20503
40/25004002500200020011033542950x1510x20803.5
63/2000630200016002501103505.52555x1600x21303.8
63/2500630250020002501103505.52960x1600x21804.2
63/3200630320026002501103505.53740x1600x22305.2
100/25001000250020003501504007.52980x1650x23306.3
100/32001000320026003501504007.53740x1650x23557
100/40001000400032003501504007.54550x1650x24508.8
100/50001000500040003501504007.55100x1500x265011.8
125/25001250250020003501504107.53980x1650x23707.5
125/32001250320026003501504107.53750x1650x24508.2
125/40001250400032003501504107.54550x1650x24709
125/50001250500040003501504107.55100x1500x279511.5
