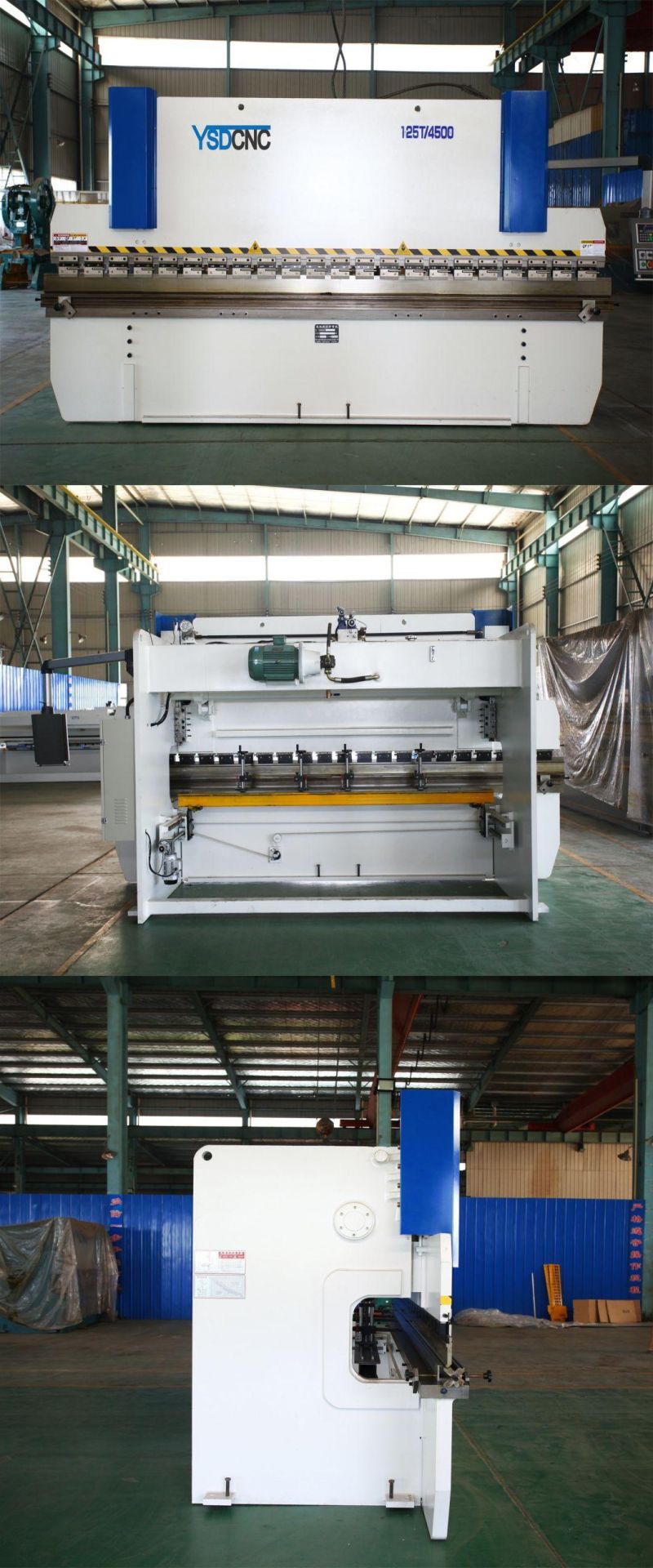

Wc67K 100t Siemens Motor Servo Bending Machine Sheet Metal CNC Hydraulic Press Brake with Da41 Controller
Nanjing Shanduan Cnc Machine Tool Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：WC67K-100T,3200
- Type：Press Brake
- Transport Package：Standrad
- Specification：3200*1600*2600
- Trademark：ysdcnc
- Origin：Nanjing
- HS Code：8462219000
- Production Capacity：600 Sets,Year
Description
Basic Info.
Model NO. WC67K-100T/3200 Type Press Brake Transport Package Standrad Specification 3200*1600*2600 Trademark ysdcnc Origin Nanjing HS Code 8462219000 Production Capacity 600 Sets/YearProduct Description
wc67k 100t Siemens motor servo bending machine sheet metal CNC Hydraulic press brake with DA41 Controller
servo CNC Press Brake
Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.
| Company Name (manufacturer): Nanjing Shanduan CNC Machine Tool Co., Ltd. |
| Brand: YSDCNC |
| Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU |
| Tel:+86 025-57262305 Phone:+86 18851629789 |
| Website: www.ysdcnc.com |

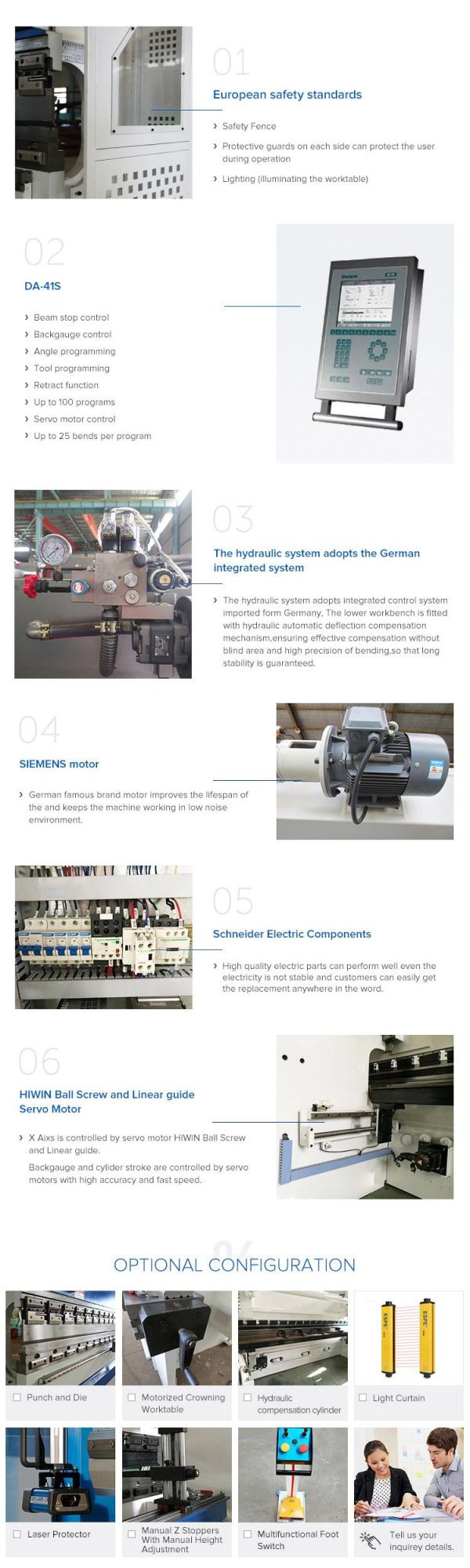

1. Main Features:
Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending
Hydraulic synchronous control and Delem CNC programmable controller guarantee precise repeatability and easy use.
Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.
X ,Y-axis realize accurate positioning function through CNC DA41S controller programming and servo motor.
Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation
WC67K series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done
2. Main Configuration
Holland DELEM DA41S controller
Controller controls and adjusts Y-axis and X-axis
Servo drive and control positioning of X-axis and Y-axis
Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
3. Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front Finger protection ( safety light curtain )
South Korea KACON pedal switch ( safety grade 4 )
Back metal safeguard, CE standard
Safety relay monitor pedal switch, safety protection
Safety standard ( 2006/42/EC)
4. Delem DA41S CNC controller
High-definition LCD display
Control slider stop position
Backgauge control
Angle programming
Setting die parameters
Material-escaping control function
100 programs, 25 process steps per program
Servo motor control, servo drive control
Die library
mm / inch
Chinese / English
Major Import configuration list:
| NO | UNIT | NUMBER | MARK |
| 1 | CONTROL SYSTEM | 1set | DA41S(DELEM) |
| 2 | SEVRO MOTOR | 1set | Japan yaskawa |
| 3 | HYDRAULIC SYSTEM | 1set | HOERBIGER, Germany. |
| 4 | Ball screw | 2sets | Taiwan HIWIN |
| 5 | Linear guide | 2set | Taiwan HIWIN |
| 6 | joint | 1set | German EMB |
| 7 | Sealing ring | 1set | FIETZ, Japan, VALQUA, Japan. |
| 8 | Major electrical components | 1set | Import or joint venture |
Random tools/documents:
| Serial No. | Name | Quantity | Remark |
| 1 | Main unit | 1 | Including one set of upper and lower die, front plate holder and foot switch |
| 2 | Grease gun | 1 | |
| 3 | Button key | 2 | |
| 4 | Key to door lock | 2 | |
| 5 | Product instructions | 1 | |
| 6 | certificate of quality | 1 | |
| 7 | Packing list | 1 | |
| 8 | Foundation bolt | 4 sets | Including nuts and washers |
| 9 | O-type sealing ring | 16 |
servo CNC Press Brake ,High Quality CNC Metal Press Brake plc siemens sevro100t powper-bend bending machine with DA41 Controller Capacity 3200mm Length
