• Model NO.：KJPD-1625
• Layout：Horizontal
• Transport Package：Wooden Box
• Specification：1600m*2500*1115
• Trademark：kangjia
• Origin：China
• HS Code：8461500090
• Production Capacity：100sets,Mounth

Basic Info.

Model NO. KJPD-1625 Layout Horizontal Transport Package Wooden Box Specification 1600m*2500*1115 Trademark kangjia Origin China HS Code 8461500090 Production Capacity 100sets/Mounth

Product Description

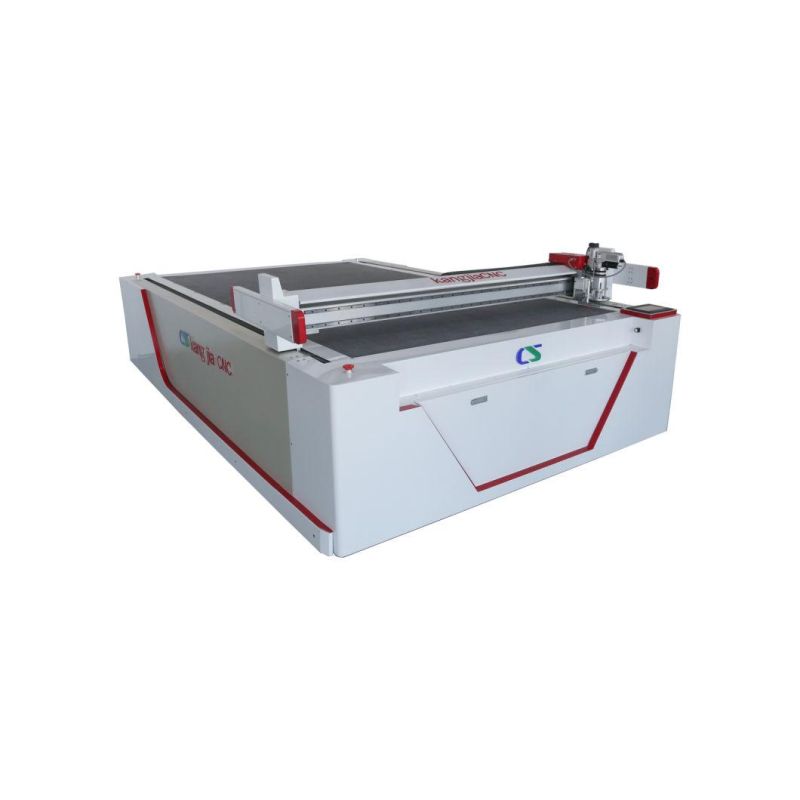

hot sale cnc oscillating knife foam corrugated cardboad cutting machine for advertising packing industry

Model	KJPD-1625 (belt transmission)
Operating Characteristic	Computer operation is carried out simultaneously with the cutting machine, quickly complete the data transmission, and can be used continuously.
Working area	2500mm * 1600mm
Cutting speed	<=140m/min (per material)
Cutting thickness	0.1-50mm
Cutting accuracy	±0.1mm
Cutting material	Flexible materials, such as leather, coiled mat, sponge, foot mat, cardboard, sofa, cloth, PE board etc.
Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, electric knife, Circular knife (round knife / rotary knife); pin
Material fixed type	Vacuum absorption
Location mode	Infrared laser lamp
Drive motor	Delta, Panasonic, YASKAWA, Fuji can be selected.
Power of suction fan	9kw
Working voltage	220V/380V/±10% 50hz/60hz
Safety device	Mechanical anti-collision device
Transmission interface	Internet transmission
Driving method	belt
Control system	LED touch screen
Guide rail	Brand: Yintai
Frame structure	Body welding
Suction case	Aluminum case
Compatible software	Kangjia intelligent software
Driving system	Servo motor
Certification	CE/SGS; ISO9001/ISO14001/ISO18001

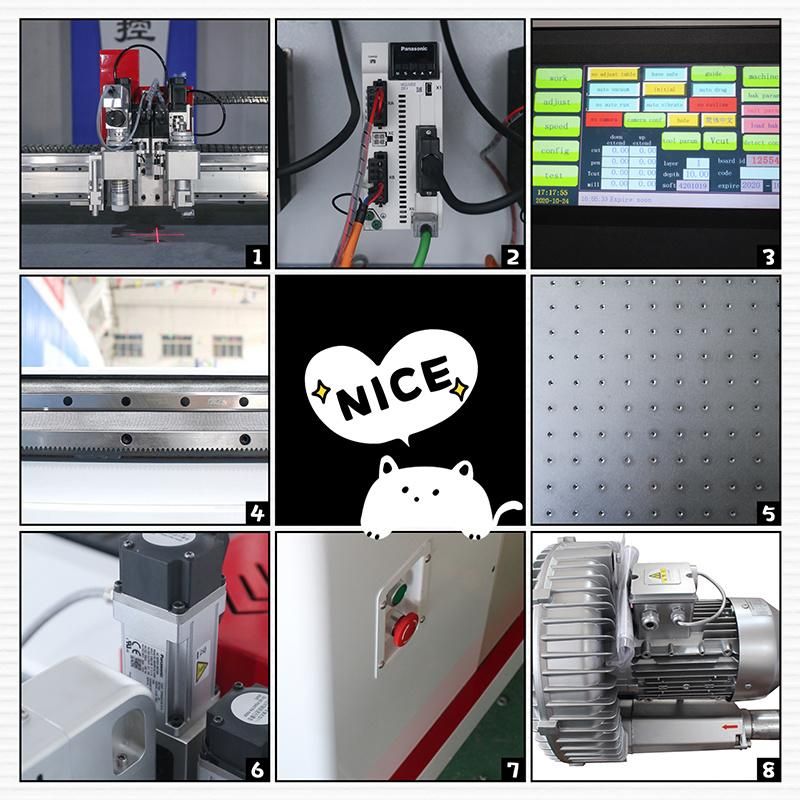

Machine details:

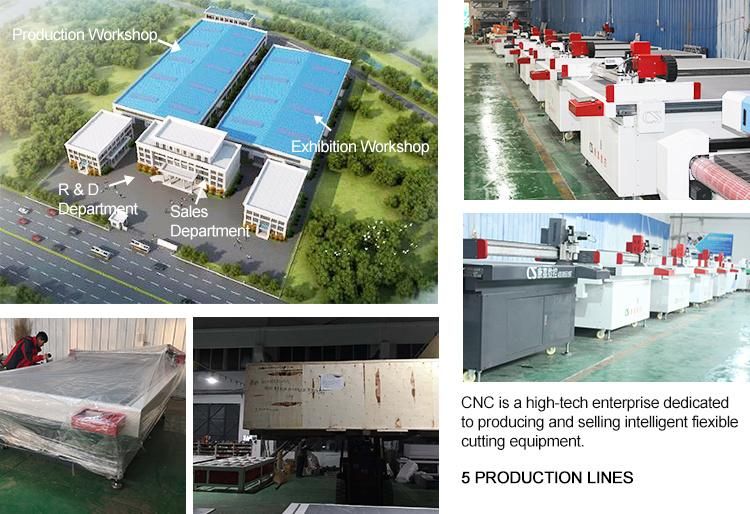

Factory information



Exhibition


Certifaction

Packing and delivery


FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?

Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.

Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.

Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.

Terms and conditions
1.Terms of delivery:FOB CIF CFR
2.Payment terms:30% prepaid,pay off the balance befor shipping.
3.Shipping date:Within 20 days after receiving the deposite.
4.Warranty period : 1 year quality warranty period expect consumble parts (slidding block ,limtting stopper ,cutting fixcture,transmission box ect.) after 12 months the seller provide paid maintance)
