CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads

Guangdong Ruizhou Technology Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Certification：CE, RoHS, ISO 9001:2000
  • Condition：New
  • Control：Automatic
  • Application：Paper, Plastic, Leather, Fabric, Cloth

Base Info

  • Model NO.：RZCRT5-12009-2H
  • Power Source：Electric
  • Layout：Horizontal
  • Working Area：12000mm X 900mm
  • Machine Dimesion：12800mmx 1500mm X 1350mm
  • Weight：3879kg
  • Cutting Speed：0mm - 1200mm,S
  • Cutting Thickness：0.5mm - 50mm
  • Original Place：Guangdong, China
  • Name Brand：Ruizhou
  • Voltage：220V±10%; 380V ± 10%
  • Knives：Oscillating Blade Head, Milling Cutter, Hobbing Cu
  • Method of Fixing Material：Divisional Vacuum Absorption
  • Transport Package：Standard Maritime Plywood Case Package
  • Specification：ISO, CE, TUV
  • Trademark：RUIZHOU
  • Origin：Guangdong, China
  • HS Code：84411000
  • Production Capacity：About 5000 Sets Per Year

Description

Model of patterncutting machineRZCRT5-12009-2HEffective working area12000mm×900mmCutting speed0-1200mm/sCutting thickness0-25mm ( customized cutting machine can up to 50mm)Method of fixing materialDivisional vacuum absorptionCutting toolsOscillating blade head, Milling Cutter, Hobbing Cutter, Creasing WheelTypes of penGel pen, Mark pen, ball pen, silver penHuman Machine Interface (HMI)Touch screen LCDMotorServo Motor, Stepper MoterCutting accuracy±0.1mmMachine resolution0.01mmSoftware resolution0.025mmInterface of transmissionNetwork portGearingLinear guide and gear rackMachine voltage220V±10%Air pump power3*9KWEnergy saving deviceFrequency converterSoftware programIndependent research and development CNC softwareControl systemCutting table and computer display
Characteristics

1. Knife cutting, not by laser. So it causes no burning to the materials. No smell.

2. Accurate. oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.

3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.

4. Convenient. Both flatbed table and  auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.

5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.

6. User friendly. Operation is easy. A free training can be offered.

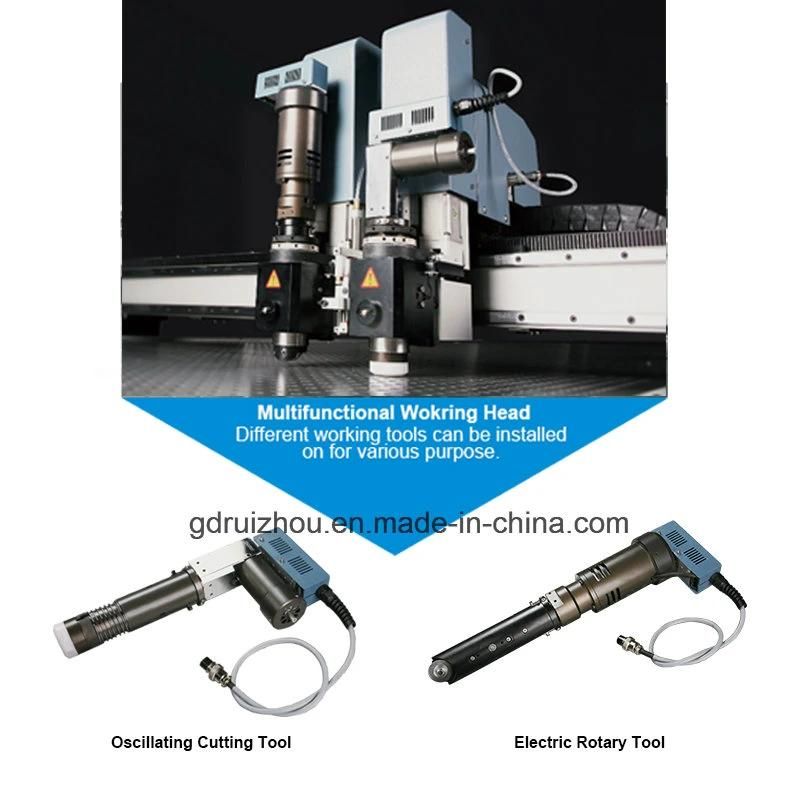

Tools and Functions of Cloth Cutting Machine

CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads

1. Oscillatin Cutting Tool

 It is fast, accurate and no burning nor smell.

2. Electric Rotary Tool

 It is more fast an low noise.

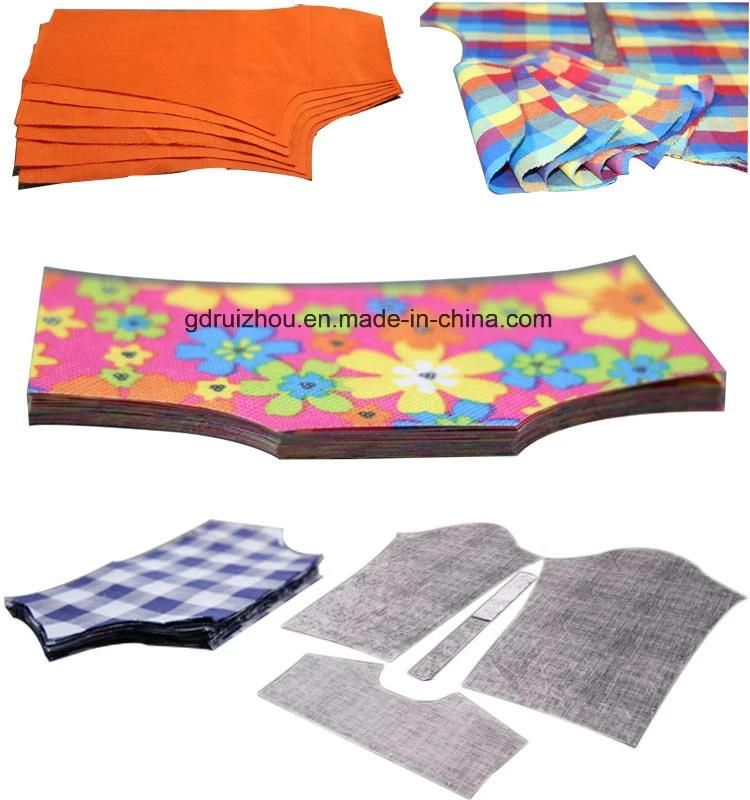

Cutting Samples of Cloth Cutting Machine
CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads

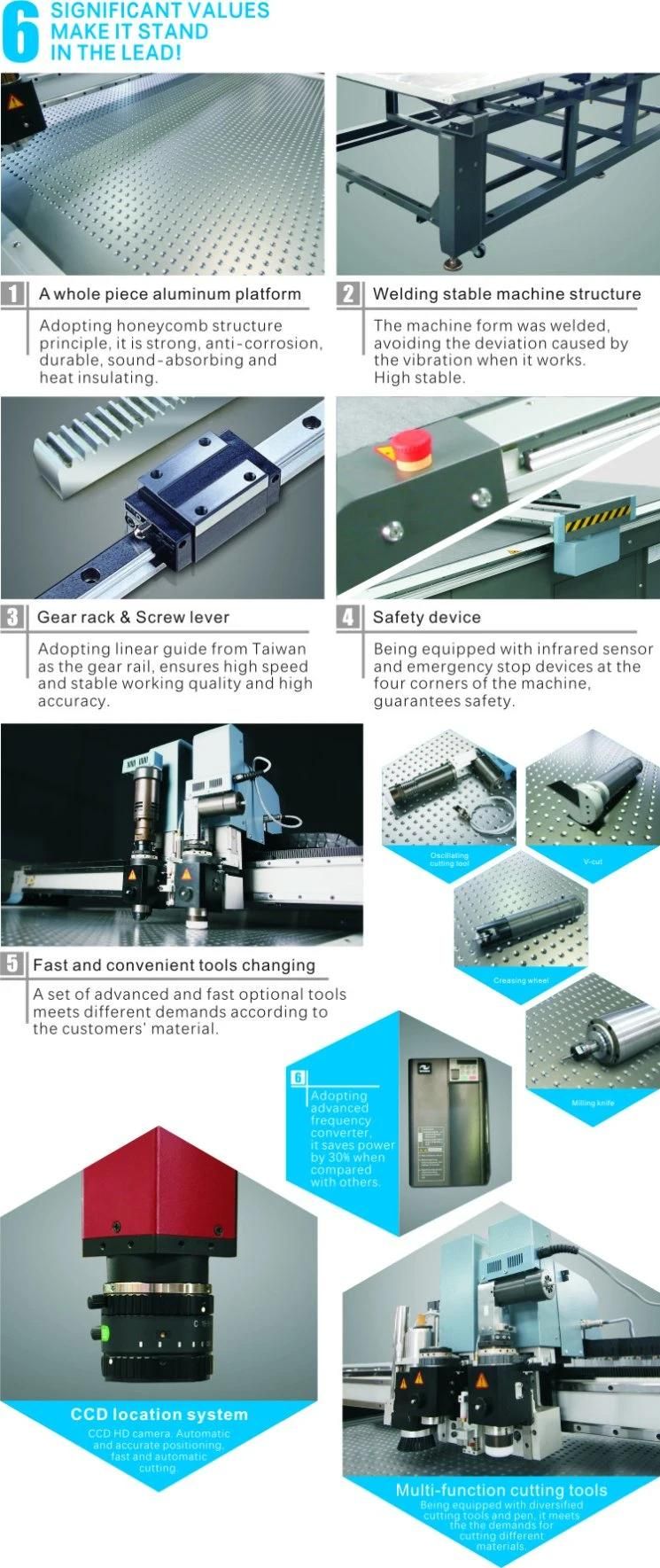

Our Advantages of Our CNC Cutting Machine

CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads


Innovative Features
 Advantages

Imported American CPU Precise electronic components

To make the stability and operability of pattern cutting machine reachs world-class level.Self-developed built-in CNC control systemFull intellectual property rights of this system can ensure constant upgrade on this control system.

Accurate lase registration system

Precise cutting head

Suitable for high accurate cuttingmported linear guide rail & famous driving motorsEnsuring fast cutting speed, smooth cutting process, high accurate and the repeatability of cutting result can reach down to zero error.

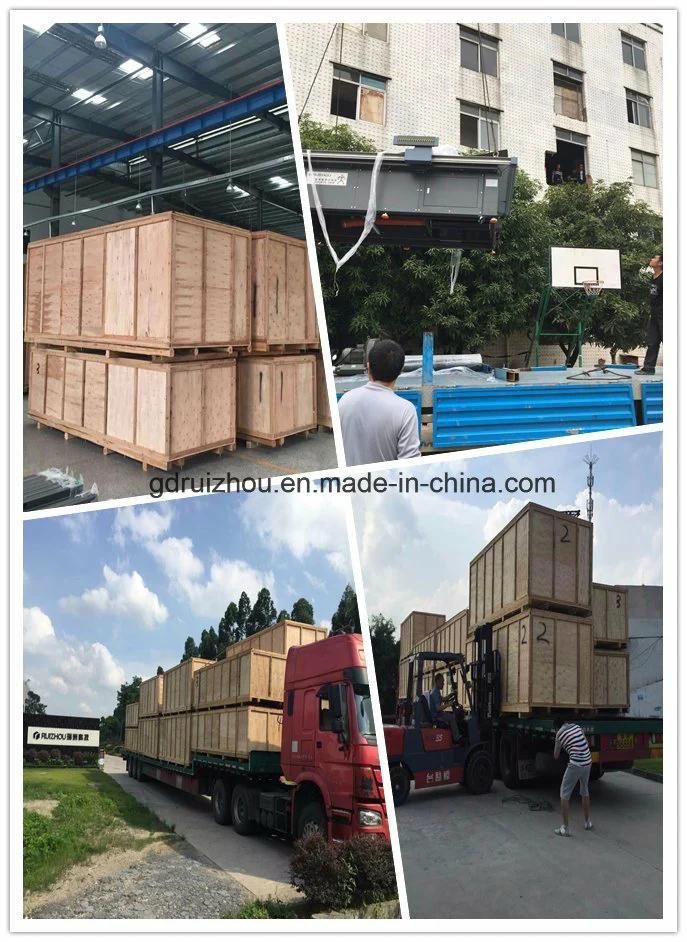

Packaging of Our CNC Cutting Machines
CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads

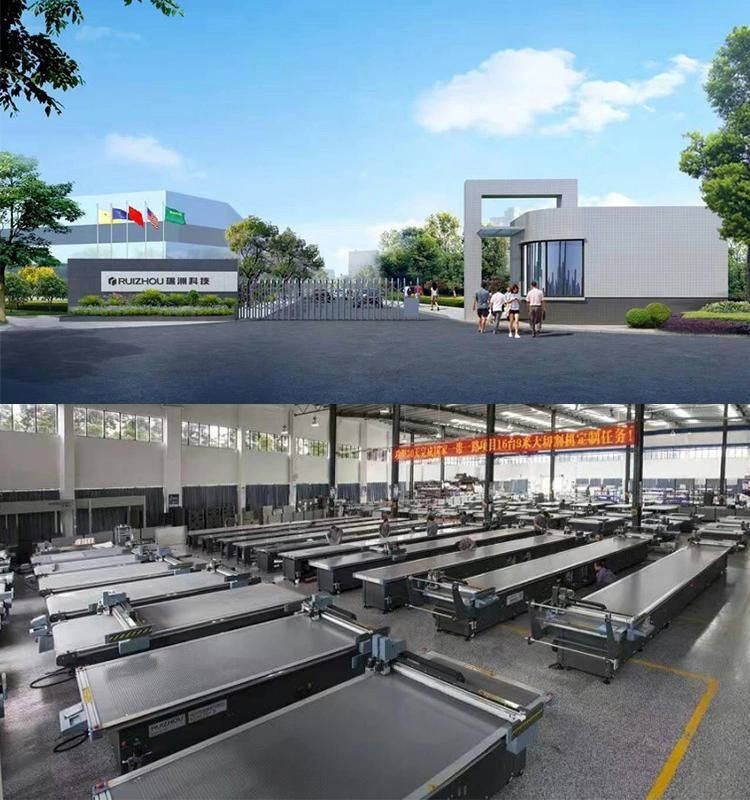

Factory Show

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.
CNC Oscillating Blade Foam Cloth Cutting Machine with Dual Cutting Heads


Related Products of Our CNC Cutting Machine

Item NumberWorking AreaRZCRT5-1007E1000X700MMRZCRT5-1510E1500X1000MMRZCRT5-1813E1800X1300MMRZCRT5-2516E2500X1600MMRZCRT5-2516EF2500X1600MM
(with automatic feeding shelf)RZCRT5-3016E3000X1600MMRZCRT5-3016EF-2H3000X1600MM
(with double cutting head )RZCRT5-3625E3600X2500MMRZCRT5-3625EF-2H3600X2500MM
(with double cutting head )RZCRT5-90099000X900MMRZCRT5-9009-2H9000X900MM
(with double cutting head )RZCRT5-12009-2H12000X900MM
(with double cutting head )RZCRT5-12016-2H12000X1600M
(with double cutting head )

Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.

Note
Please contact with us for an accurate price;
It will be appreciated if you could kindly advise us your requirements in details!
