• Model NO.：STB-38CNC-2A
• Type：Pipe and Tube Bending Machine
• Axis：2-Axis Servo
• Tool Stack：1 Stack
• Bend Speed：3 Second,Bend
• Transport Package：Plywood Case
• Specification：LWH: 4450× 1250× 1550mm, GW: 1800kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-38CNC-2A Type Pipe and Tube Bending Machine Axis 2-Axis Servo Tool Stack 1 Stack Bend Speed 3 Second/Bend Transport Package Plywood Case Specification LWH: 4450× 1250× 1550mm, GW: 1800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

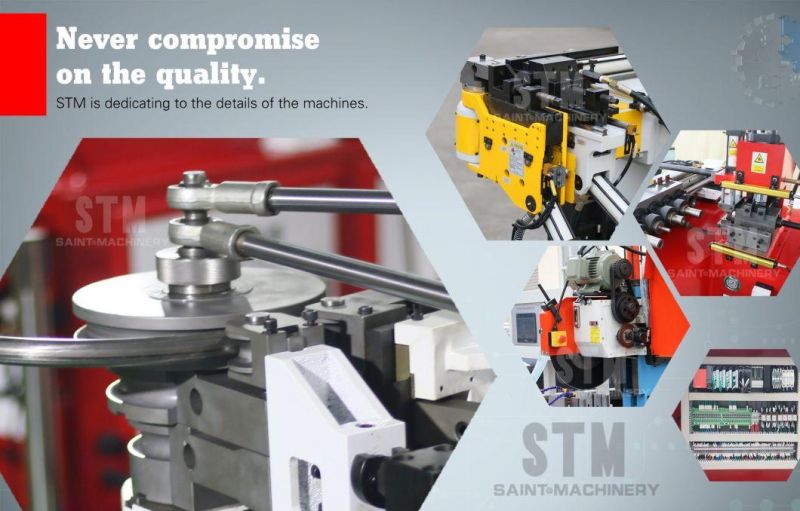

1. Bend-arm (C-axis) by Hydraulic.

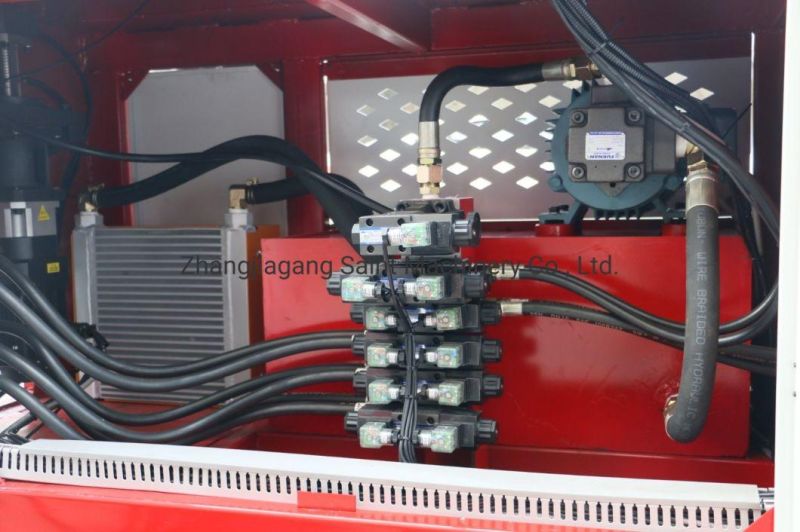

2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor (optional).

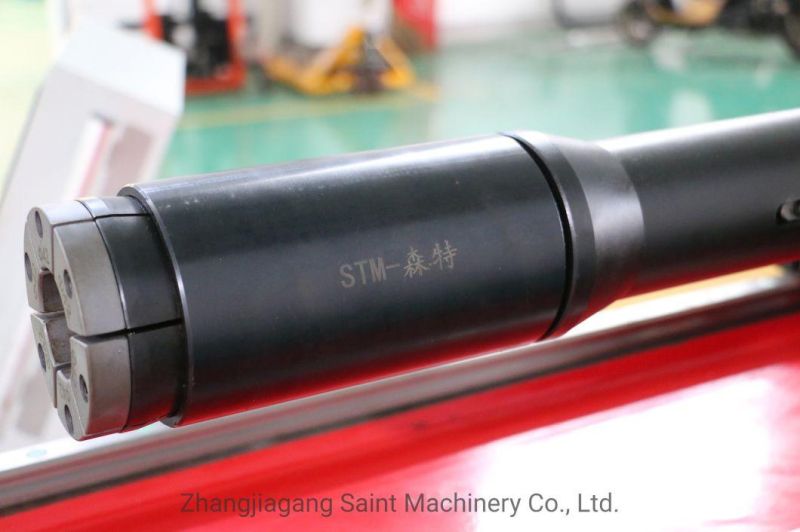

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling (optional).
7. Automatic moving parts lubrication.

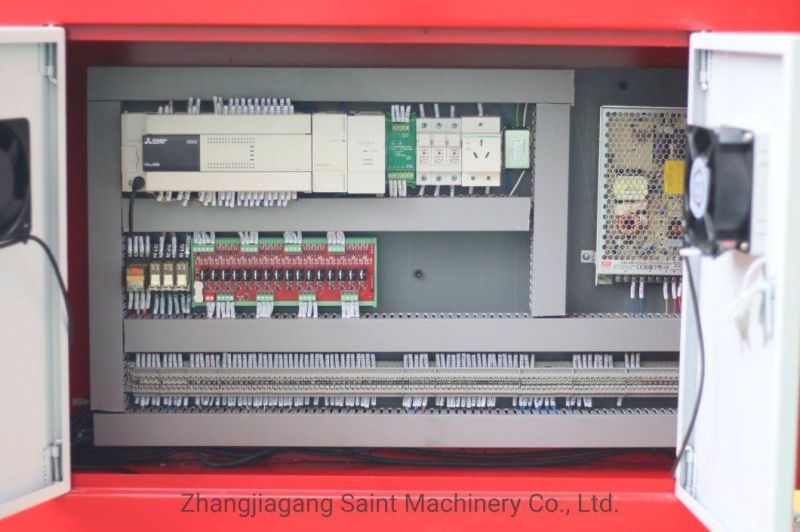

8. Standing pedestal, serves emergency stop and remote control.
9. Optional: Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
10. Optional: 3D bending simulation
11. Optional: auto loading and unloading system.


Model	STB-50CNC-2A-1S	STB-38CNC-2A-1S
Bending capability OD×WT (carbon steel)	Φ50.8× 2.5mm	Φ38.1× 2.0mm
Bending radius (by tools)	35~250 mm	25~180 mm
Bending angle	0~195°	0~195°
Max bending length with mandrel	3000mm	2800mm
Bending speed	90°/sec	125°/sec
Bending accuracy	±0.1°	±0.1°
Feeding speed	30~750 mm/sec	30~750 mm/sec
Feeding accuracy	±0.1 mm	±0.1 mm
Rotating speed	320°/sec	320°/sec
Rotating accuracy	±0.1°	±0.1°
Tools stack	1	1
Bending	Hydraulic	Hydraulic
Feeding/Booster	Electric Servomotor	Electric Servomotor
Rotating	Electric Servomotor	Electric Servomotor
Tool shifting	--	--
Main motor power	5.5 KW	4.0 KW
System hydraulic pressure	12MPa	12MPa
Size	5000×1250×1550mm	4450×1250×1550mm
Weight	2100 kg	1800 kg
