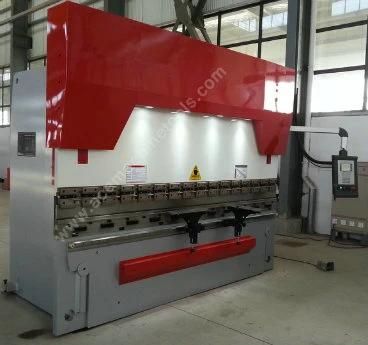

Hydraulic Press Brake Machine (ACE-125TX3200)
ACE Machine Tools Co., Ltd.- Condition：New
- Automation：Automatic
- Suitable for：Aluminum, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
- Nominal Pressure Kilonewton：1250kn
- Length of Work Table：3200mm
Base Info
- Model NO.：HPBE-125X3200
- Distance Between Columns：2650mm
- Transport Package：PVC
- Specification：CE
- Trademark：Acemachinetools
- Origin：China
- HS Code：84622990
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. HPBE-125X3200 Distance Between Columns 2650mm Transport Package PVC Specification CE Trademark Acemachinetools Origin China HS Code 84622990 Production Capacity 100sets/MonthProduct Description
Hydraulic Press Brake-HPBE-125X3200
Nominal Pressure Kilonewton:630kN
Length Of Work Table:3200mm
Distance Between Columns:2650mm
| Parameters | ||||
| Model | HPB-63/3200 | HPB-125/3200 | HPB-160/3200 | HPB-200/4000 |
| Nominal Pressure Kilonewton | 630kN | 1250kN | 1600kN | 2000kN |
| Length Of Work Table | 3200mm | 3200mm | 3200mm | 4000mm |
| Distance Between Columns | 2650mm | 2650mm | 2600mm | 3200mm |
| Maximum Open Height | 360mm | 390mm | 470mm | 450mm |
| Ballscrew Backgauge Travel | 600mm | 600mm | 550mm | 550mm |
| Throat Depth | 250mm | 415mm | 420mm | 420mm |
| Ram Stroke | 100mm | 130mm | 200mm | 200mm |
| Motor Power | 5.5kW / 7.5hp | 7.5kW / 10hp | 11kW / 15hp | 15kW / 20hp |
| Motor Voltage | 415V | 415V | 415V | 415V |
| Weight (Net) | 5740kg | 8600kg | 11100kg | 16500kg |
