• Model NO.：QC12Y-12X3200 E21S
• Transport Package：Base Framed by Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• Production Capacity：50unit,Month

Basic Info.

Model NO. QC12Y-12X3200 E21S Transport Package Base Framed by Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) Production Capacity 50unit/Month

Product Description

ZDS-1232 (QC12Y-12X3200) Swing Beam Shearing Machine

The model of this swing beam shearing machine is ZDS-1232 ( QC12Y-12X3200 ),Balls on worktable help for easy feeding of metal sheet and reducing labour intensity;Hydraulics of reputable brand is used for reliability;With E21S NC.



China Well-Known Trademark

ANHUI Brand

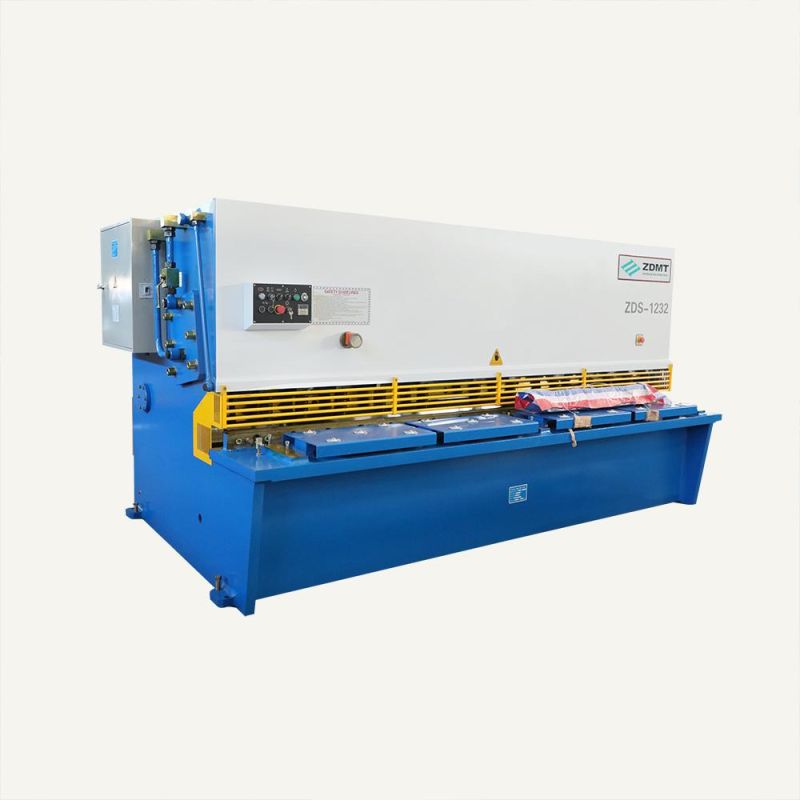

ZDMT Swing Beam Shearing Machine

Model: ZDS-1232 ( QC12Y-12X3200 )

Control system: E21S NC (Simple CNC)

Max cutting thickness: 12mm

Max cutting length: 3200mm


Basic features

• E21S can control the movement of backgauge,achieving efficient and highly precise positioning

• Shadow line lighting

• Full or short stroke adjustment of blade holder to achieve high efficiency and productivity

• Foot switch for operation with emergency stop

• Blades with high tensile strength for cutting carbon steel and stainless steel

• Indicator-based adjustment of blades clearance is easy, convenient and swift

• Basic guard fence around the shear is for personnel safety

• Balls on worktable help for easy feeding of metal sheet and reducing labour intensity

• Emergency stops on machine and foot switch, ensuring labor safety at every place

• Hydraulics of reputable brand is used for reliability

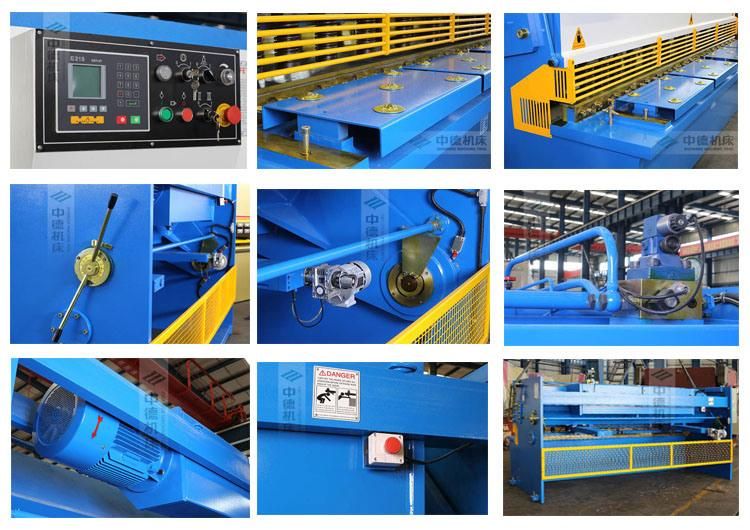

Related configuration with details :
1. E21S simple CNC controller for  hydraulic shearing machine.
2. Domestic high quality hydraulic valve,no oil leakage and fault,it can show the oil pressure in time,and it use full-metal high-pressure tube connection,ensure the quality.
3. Top brand main motor,with strong power.
4. Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Using high quality holding-down clamps.
5. Indicator-based adjustment of blades clearance is easy,convenient and swift.
6. Emergency stop button on the back of the shear machine,to protect the personnel safety.
7. Domestic high quality bearing,wearproof and long operation life.
8. Penetration guard fence around the shear,not only protect the safety of operator but also observe the shearing position.
9. Taiwan high quality SHIHLIN frequency inverter,lower frequency and more energy-efficient,with quick positioning.
10. Shanghai good quality blades,with long lifespan.
11. Bite type tube fittings is used to avoid disadvantages of uneasy maintenance etc that caused by welding.

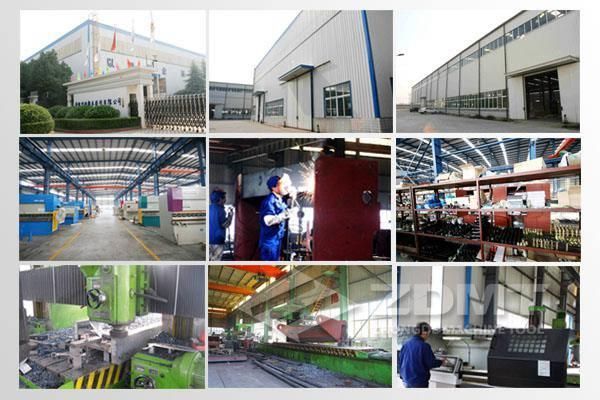

Factories and workshops



Certificates


Customers,agents and friends

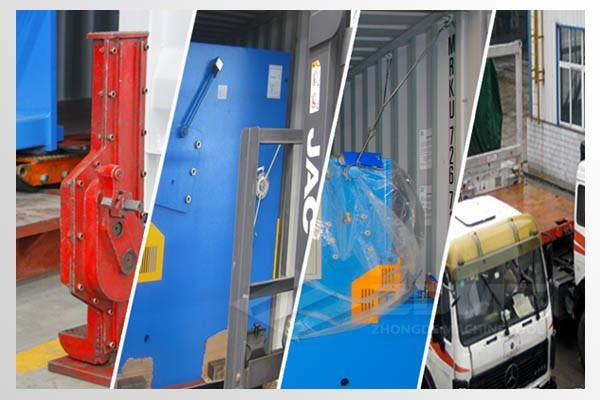

Professional machine loading in ZDMT factory

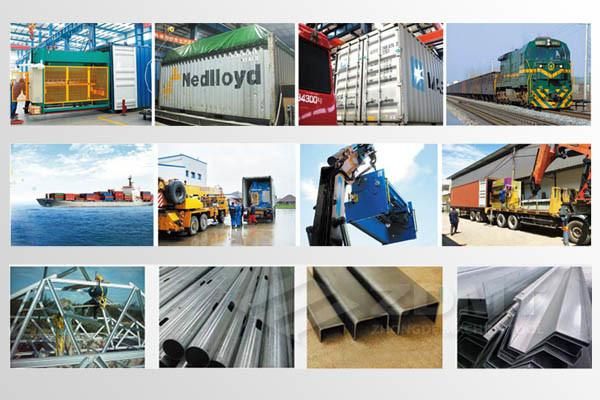

Logistics and final applications
