4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

Jinan Huaxia Machinery Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：2years
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Model NO.：HXP-4000
  • Connected Shaft Number：3-Shaft
  • Style：Gantry
  • Type：CNC
  • Power Supply：USA Hyperrtherrm ,China Huayuan
  • Cutting Method：Air Cutting
  • Machine Work Together：Air Compressor(Min 0.8 MPa Power)
  • Control System：Starfire,Flmc-F2300,Start,Nc-Studio
  • Nesting Software：Fastcam Australia
  • Input Voltage：3 Phase 380V for Power Source
  • File Transfer Mode：USB Interface
  • Design Software：Auto CAD, Caxa
  • Arc：Non-Contact
  • Cooling：Water Cooling
  • Language：8 Different Language(See Details)
  • Flame Cutting：Oxygen,Acetylene,Propane,Coal Gas
  • Transport Package：Plywood Case After Packed by Wrapping Film
  • Specification：4000X8000MM
  • Trademark：HUAXIA
  • Origin：China Minland
  • HS Code：8456401000
  • Production Capacity：50,Month

Description

************* Gantry plasma/flame cutting machine Cross Beam Length(X axis)

4500mm (can be customed as user's demand)

Longitudinal Rail Length(Y axis)

8500mm (Rail can be customed as user's demand)

Effective Cutting Width (X axis)

4000mm(can be customed as user's demand)

Cutting Mode Flame only; Plasma only; Flame and Plasma Drive Mode Bilateral-side Drive Method Rack and pinion drive for X and Y axes Flame Cutting Thickness 5-200mm Cutting Speed 0-12000mm per minute Moving Precision 0.01mm per step Nesting Software (option) FASTCAM       ** Configuration Options ****

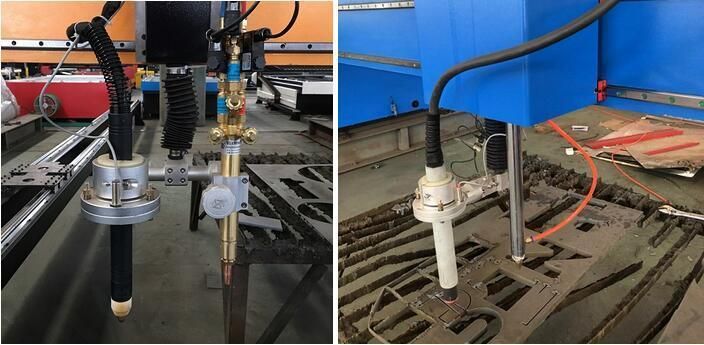

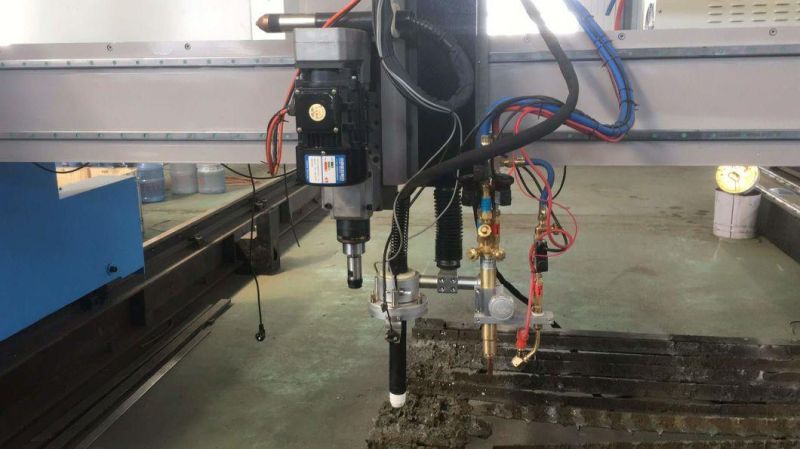

1) Cutting torch option:
    --Only Plasma Torch: 0.5~35mm thickness cutting work
     --Flame and plasma Torch: 0.5~300mm thickness cutting work
     --Drilling function: fit for hole drilling work less than 6mm diameter
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

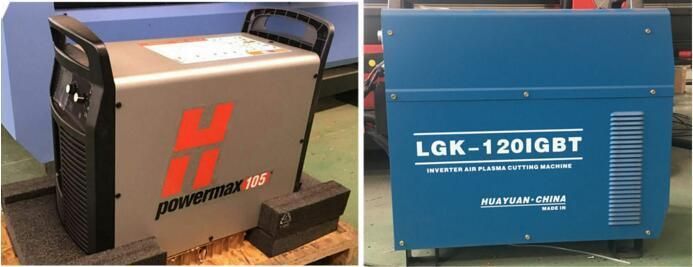

2)Plasma power supply

4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

          USA Hypertherm Plasma Power source                                 China LGK Plasma Power Source

To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet,
mild steel,titanium sheet. stainless steel, iron etc.
Please Kindly tell us the Cutting Materials, the maximum working area and the cutting depth.
According to this,we suggest most suitable machine for you.


3)FASTCAM software

After nest your drawing by FASTCAM nesting software ,it can make your cutting sheet in biggest usage ,
then it can reduce waste and save cost
STARCAM for choose
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

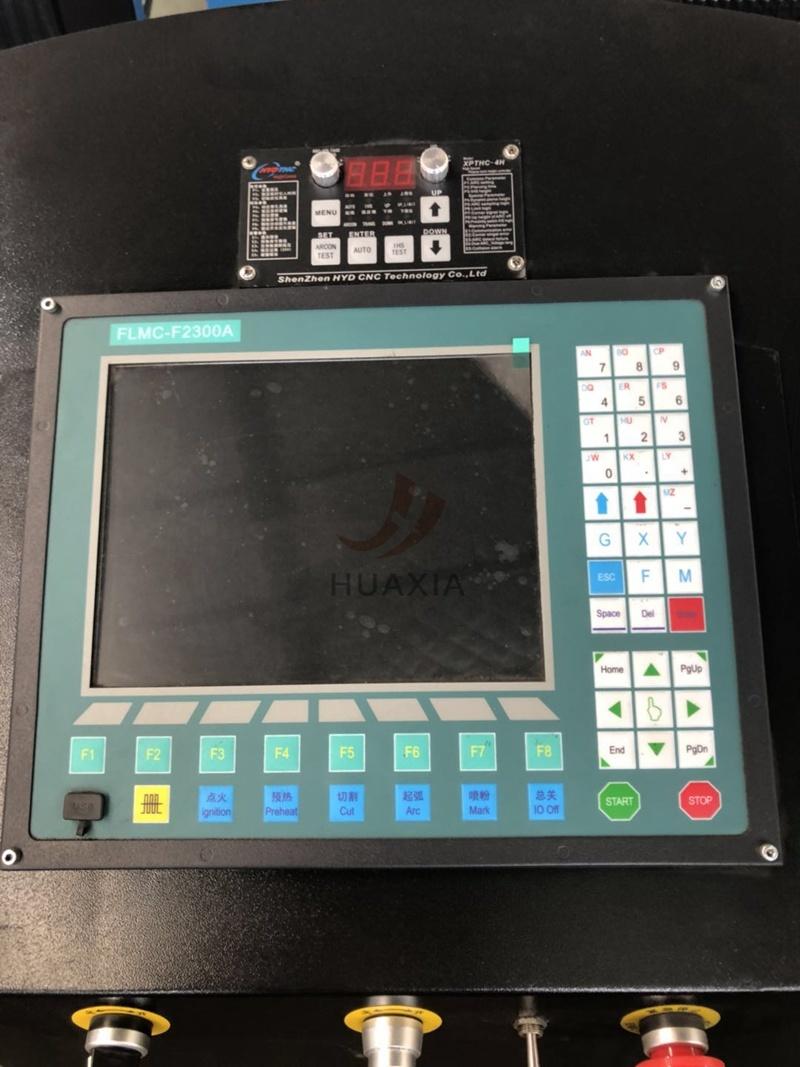

4) Control system
STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok , Chinese /English /RUSSIAN/Spainsh/French/Czech/Janpanese/Slovakian etc. version for your choose ,so you don't need worry about operate problem regardng language .t
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

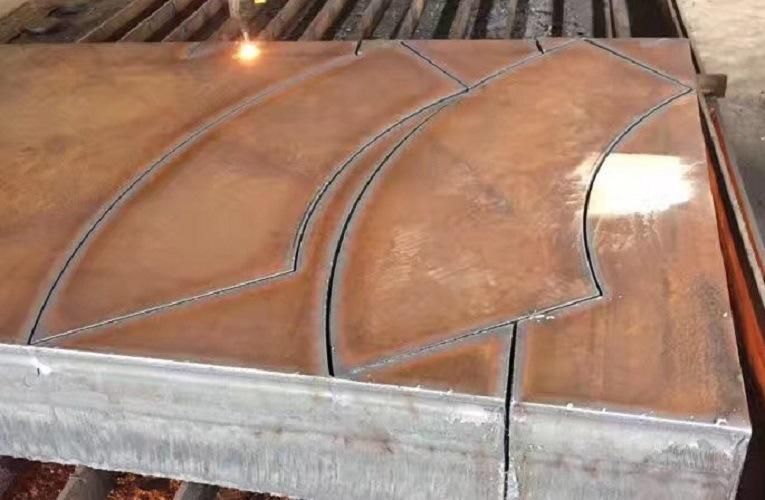

Samples
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting Machine

Packing
4m by 15m Gantry Type Steel Plate CNC Flame Oxygen Plasma Cutting MachineFAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
