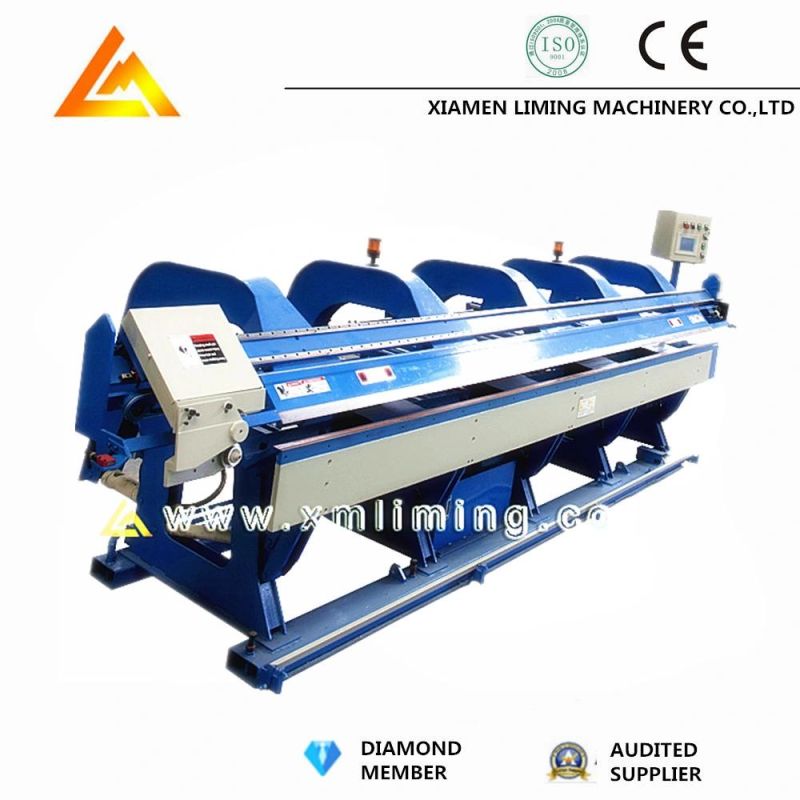

• Model NO.：CNC Bending Machine
• Raw Material：Aluminum; Stainless Steel
• Pump Motor：0.82kw
• Working Length：4000mm,6000mm,8000mm
• Max Bending Angle：125 Degree
• Typeing of Blade：Cr12 MOV
• Press Clamp：Press Clamp:5 Units,7 Units, 9 Units
• Weight：Approx 3000kg
• Transport Package：20gp*1
• Specification：3T
• Trademark：LIMING MACHINERY
• Origin：Fujian, China (Mainland)
• Production Capacity：600

General Parameter

1)For Steel sheet; Aluminum; Stainless steel

2)Thickness: Max.1.0mm

3)Feeding width: Max. 1000mm

4)Driven by Servo motor, pump motor: 0.82KW

5)Working length: 4000mm,  6000mm,  8000mm

6)Press clamp:5 units,7 units, 9 units
7)Weight:or for hydraulic station7.5KW(Located inside)



8)Weight:Approx3000kg
9)Bending range:0-125 degree

10) Depth of throat:1000 mm(Max. working width of material in clamp)

11) Hinge:5 groups

9) Total power:9.42KW (7.5KW+1.1KW+0.82KW)
10)Outline dimension(Length×Width×Height):5800×1700×1500 (For reference only)

Slitting Device

1) Type Of Blade : Slitting wheel
Diameter:80 (Enough)
Material:Cr12MoV

2) Drive system:Motor driving, 1.1KW
Guiding device:Steel rope circling

3) Slitting speed:Approx.0.8m/s

Slitting distance: Through steel rope circulation.

Bending & Slitting Device

1) Max. Bending thickness 1.0mm

2) Max. Bending length 6000mm

3) Max. Slit thickness 1.0mm

4) Min. folding dimension TBC

Hydraulic power pack

1)Capability:Max.16MPA

2)Capacity of oil tank: 170L

3)Power source:Hydraulic

PLC Control System

1)System:Siemens PLC Control

2)Numerical control locating system:Siemens PLC Control

3)Operating table:Touch Screen

4)Angle programmer:Encoder test

5)Slitting control:Manual

6)Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)

Slitting wheels on folding machine








After-Sale Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.
The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
