• Model NO.：YX60-400
• Motor Power：5kw
• Processing Speed：3-5m,Min
• Material for Frame of Machine：Fine Welded Structural Steel
• Voltage：380V,50Hz,3pH
• Control System：PLC(Imported Brand)
• Curved Thickness for Steel Roof：0.5-0.8mm
• Curved Thickness for Aluminum Roof：0.7-1.0mm
• Material of Rollers：45#Steel Forge
• Transport Package：Standard Packed for Export
• Specification：SGS
• Trademark：XHH
• Origin：Fujian, China (Mainland)
• HS Code：84552290
• Production Capacity：20sets,Moth

Basic Info.

Model NO. YX60-400 Motor Power 5kw Processing Speed 3-5m/Min Material for Frame of Machine Fine Welded Structural Steel Voltage 380V/50Hz/3pH Control System PLC(Imported Brand) Curved Thickness for Steel Roof 0.5-0.8mm Curved Thickness for Aluminum Roof 0.7-1.0mm Material of Rollers 45#Steel Forge Transport Package Standard Packed for Export Specification SGS Trademark XHH Origin Fujian, China (Mainland) HS Code 84552290 Production Capacity 20sets/Moth

Product Description



Metal corrugated roofing&siding panel auto crimping curving machine



1. Specifications of auto crimping curving machine

1)Main Techincal Data:

Model Number	YX60-400
Size	2000*1400*1500mm
Weight	1500KGS
Motor Power	5KW
Processing Speed	3-5m/min
Voltage	380V/50HZ/3PH
Curved Thickness for Steel Roof	0.5-0.8mm
Curved Thickness for Aluminum Roof	0.7-1.0mm
Min.Curving Radius	1m
Material for frame of machine	Fine welded structural steel

Usage:automatically strike-curving roofings to ARC-shaped,L-shaped,U-shape,C-shaped.

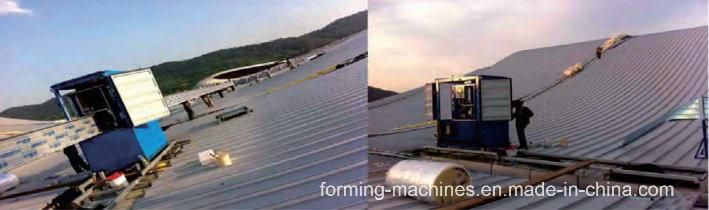

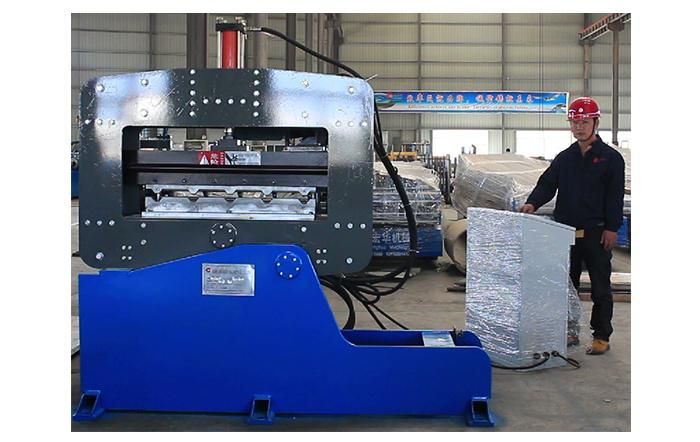

2. Pictures of auto crimping curving machine

3.Our company view
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.

4.Our advantage

a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.



 b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.



c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.



d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.



e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
