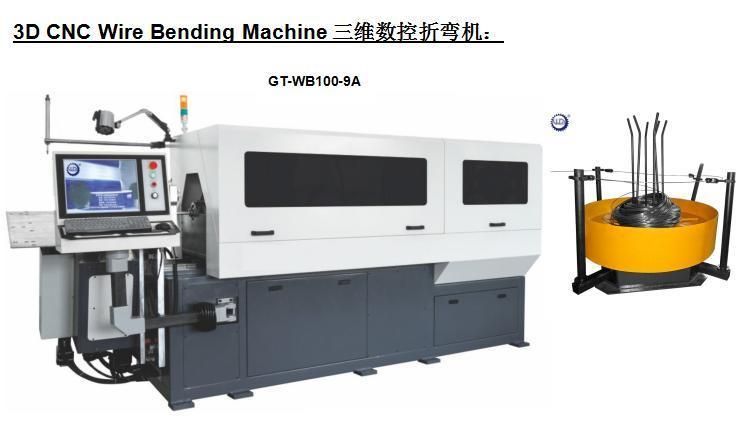

High Precision 3D CNC Wire Bending Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- After-sales Service：Online Support
- Waterproof Rating：IPX-3
- Warranty：1-year
- Condition：New
- Certification：CE
- Automation：Automatic
Base Info
- Model NO.：CT-WB100-9A
- Suitable for：Carbon Steel, Stainless Steel
- Type：Cnc Bending Machine
- Transport Package：Standard Fumigated Wooden Case
- Specification：4200x1520x1600mm
- Trademark：WG
- Origin：China
- HS Code：8462299000
- Production Capacity：50000pieces,Year
Description
Basic Info.
Model NO. CT-WB100-9A Suitable for Carbon Steel, Stainless Steel Type Cnc Bending Machine Transport Package Standard Fumigated Wooden Case Specification 4200x1520x1600mm Trademark WG Origin China HS Code 8462299000 Production Capacity 50000pieces/YearProduct Description
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1)Auto Industry area 2)Metal wire industry
3)Display table and cargo shelf 4)Furniture and Kitchen
5)Hardware industry 6)Mattress, Sofa spring area
7)Architecture area 8)Hardware Artcraft
| Model | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire size | 2.0-6.0mm | 3.0-8.0mm | 4.0-10.0mm | 5.0-12.0mm |
| Axis | 10 | 9 | 9 | 7 |
| wire feeding value (mm) | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 |
| Feeding length number | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire turning angle | 3 pairs | Unlimited | Unlimited | Unlimited |
| Platform Lifting Height | +50-170mm | +25-120mm | +25-120mm | +25-120mm |
| twisting head lift height | +20-100mm | +20-180mm | +20-180mm | +20-180mm |
| left to right moving range | Left:80mm Right:40mm | Left:100mm Right:50mm | Left:100mm Right:50mm | Left:100mm Right:50mm |
| Feeding front and back moving range | Front:300mm Back:100mm | Front:300mm Back:100mm | Front:300mm Back:100mm | Front:300mm Back:100mm |
| Total output power of servo motors | 20.5KW | 27.8KW | 28.5KW | 37.5KW |
| machine size(mm) | 4100x1420x1600 | 4200x1520x1600 | 4200x1520x1600 | 4500x1800x1700 |
| machine weight | 3400.0(kg) | 3500.0(kg) | 4800.0(kg) | 5600.0(kg) |
