Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line

Jinan Eagle CNC Machine Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New

Base Info

  • Model NO.：ERCL-3X1600
  • Warranty：1 Year
  • Processing Material：Cold,Hot Rolled, Stainless, Wild, Galvanized Steel
  • Processing Thickness：0.3-3mm
  • Processing Width：400-1600mm
  • Cutting Accuracy：±0.3mm
  • Max. Speed：70m,Min
  • Max. Cutting Frequency：150spm
  • Uncoiling Weight：20t
  • Certificate：Ce, ISO9001
  • Production Period：5 Months
  • Brand：Eagle
  • Transport Package：Seaworthy
  • Specification：CE, ISO9001
  • Trademark：Eagle
  • Origin：Jinan, Shandong
  • HS Code：8462312000
  • Production Capacity：60sets,Year

Description



±0.3/1000mm
60
150
8
ERCL-2x800
0.2-2
100-800
60
150
8
ERCL-2x1300
0.3-2
400-1300
70
150
15
ERCL-2x1600
0.3-2
400-1600
70
150
15
ERCL-3x1600
0.4-3
400-1600
70
120
15Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line
Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line
Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line

Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty

Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.

Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.

Welcome you to our factory!

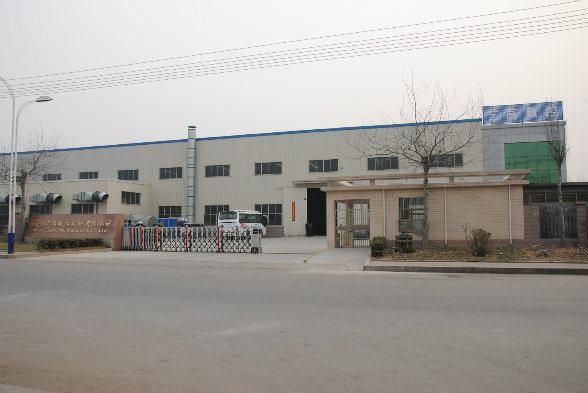

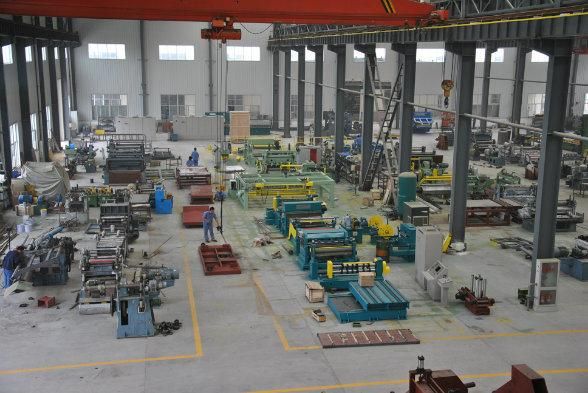

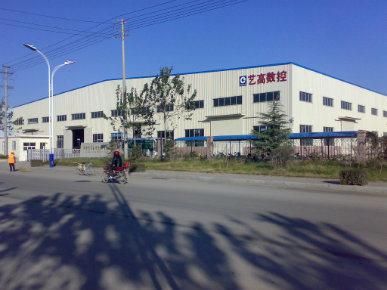

Share some factory pictures
Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line
before expanding

Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line
after expanding

Automatic High-Speed Metal Cutting Machine Aluminum Rotary Shear Cut to Length Line
our factoryContact Information
