• Model NO.：GT-WB-80-9A
• Type：Cnc Bending Machine
• Raw Material：Steel Bar
• Power：CNC
• Material：Steel Wire
• Extra Services：Cut to Length
• Wire Bending：9 Axis
• Machine Type：Coiling Bending Machine
• Application：Steel
• Material / Metal Processed：Stainless Steel
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Standard Fumugated Wooden Case
• Trademark：XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8462219000
• Production Capacity：2 Set Per Month

Basic Info.

Model NO. GT-WB-80-9A Type Cnc Bending Machine Raw Material Steel Bar Power CNC Material Steel Wire Extra Services Cut to Length Wire Bending 9 Axis Machine Type Coiling Bending Machine Application Steel Material / Metal Processed Stainless Steel After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Standard Fumugated Wooden Case Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8462219000 Production Capacity 2 Set Per Month

Product Description

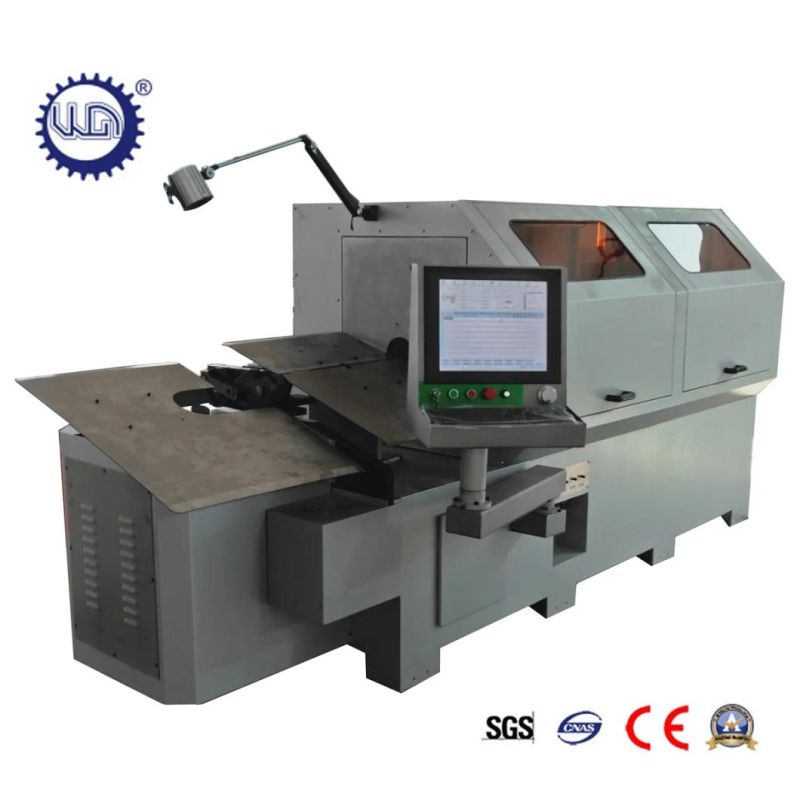

9 Axis 3D CNC Steel Wire Bender Machine

cnc wire bending machine is to expertly produce kinds of wire forms in 3D fully automatically.

It is suitable for wire size from 3.0mm up to 8.0mm.

Technical parameter:

1. wire size: 3.0mm - 8.0mm

2. feeding roller number: 3 pairs

3. wire turning angle: unlimited

4. platorm lifting height:25-120mm

5. twisting head lift height: 25-180mm

6. distance between cutting is and bending head: 210mm fixed

7. distance between bending head and machine body: 700mm fixed

8. axis: 9

9. machine size: 3500x1200x1500mm

10. machine weight: 3500kg







Packaging & Shipping

Company Information
