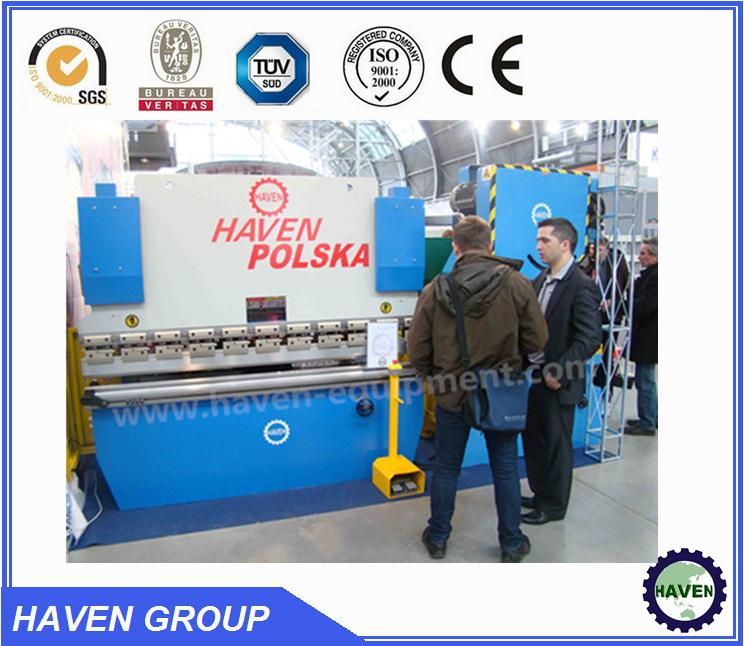

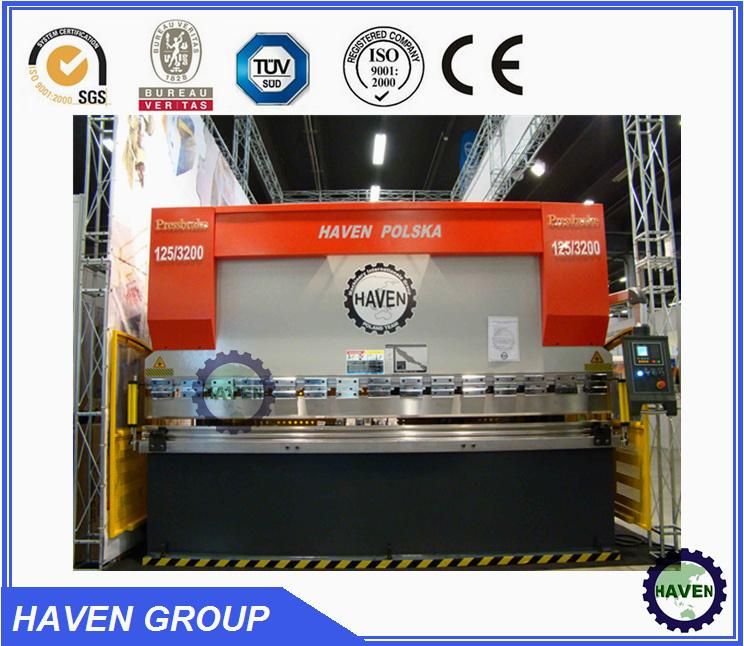

We67k Hydraulic Press Brake, Press Brake, Plate Bending Machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating:IPX-3
- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, EPA, CS
- Automation:Automatic
- Type:hydraulic Press Brake
Base Info
- Model NO.:WE67K series
- Da52 CNC Control System:Hydraulic Type
- Application:Machinery & Hardware,
- Type for Cutting Machine:Hydraulic Cutting Machine
- Type for Fold-bending Machine:Hydraulic Fold-bend Machine
- Transport Package:Veneer Box
- Specification:CE Standard
- Trademark:HAVEN
- Origin:China
- HS Code:8462
- Production Capacity:50units,Month
Description
Basic Info.
Model NO. WE67K series Da52 CNC Control System Hydraulic Type Application Machinery & Hardware, Type for Cutting Machine Hydraulic Cutting Machine Type for Fold-bending Machine Hydraulic Fold-bend Machine Transport Package Veneer Box Specification CE Standard Trademark HAVEN Origin China HS Code 8462 Production Capacity 50units/MonthProduct Description
We67k Hydraulic Press Brake, Press Brake, Plate Bending Machine1. Equipped with special controller with automatic test and self-diagnosis.
2. Programming a product simply consists of introducing the characteristics of the material to be bent, the dimensions of the product and the necessary tooling & die.
3. The optimizing software searches for the best bending cycle.
4. RAM stroke(Y1, Y2) and backgauge (X, R, Z) are controlled by controller automatically, high productivity.
5. Adopting Electro-hydraulic proportional servo synchronization.
6. Optional point within stroke can be controlled. Repeat precision of Y axes: ± 0.01mm, Parallism: 0.02mm.
7. Strong ability of deviation resistance. Backgauge adopts ball-bearing screw and rolling guideway, quick speed and high repeat positioning precision.
8. X axes with resolution 0.1mm. Imports including linear transducer, pressure proportional valve and servo motor.
The models are available in variety of tounge from 40 ton up to 1000 ton and length from 2000 mm up to 8000 mm. The specifications below 300 ton refer to Series WC67Y. Any tailor-made are available on request.
Model | Nominal Pressure | Length of Table | Distance between Housings | Throt Depth | Stroke | Strokes | Open height | Main Motor | Weight | Overall Dimensions L× W× H |
WE67K-200/6500 | 2000 | 6500 | 4850 | 320 | 200 | ≥ 3 | 465 | 15KW | 27, 000 | 6585× 2100× 2900 |
WE67K-250/5000 | 2500 | 5000 | 4020 | 400 | 250 | ≥ 3 | 560 | 15KE | 28, 000 | 5080× 2000× 3360 |
WE67K-300/5000 | 3000 | 5000 | 4010 | 400 | 250 | ≥ 3 | 560 | 15 | 29, 000 | 5100× 2600× 3400 |
WE67K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | ≥ 2.5 | 630 | 30 | 29, 500 | 4080× 2650× 3900 |
WE67K-400/5000 | 4000 | 5000 | 4000 | 400 | 320 | ≥ 2.5 | 630 | 30 | 34, 500 | 5100× 2650× 3900 |
WE67K-400/6000 | 4000 | 6000 | 4820 | 400 | 320 | ≥ 2.5 | 630 | 30 | 39, 500 | 6100× 2650× 3900 |
WE67K-500/6000 | 5000 | 6000 | 4820 | 400 | 320 | ≥ 2.5 | 630 | 30 | 59, 500 | 6100× 2800× 4600 |
WE67K-600/5000 | 6000 | 5000 | 4000 | 400 | 320 | ≥ 2.5 | 630 | 30 | 60, 000 | 5100× 2950× 4900 |
WE67K-600/6000 | 6000 | 6000 | 4880 | 400 | 320 | ≥ 2.5 | 630 | 30 | 66, 000 | 6100× 2925× 4900 |
WE67K-800/6000 | 8000 | 6000 | 4800 | 500 | 360 | ≥ 2 | 710 | 45 | 79, 000 | 6200× 4100× 4900 |
WE67K-800/7000 | 8000 | 7000 | 5600 | 500 | 360 | ≥ 2 | 710 | 45 | 85, 000 | 7200× 4100× 4900 |
WE67K-1000/6000 | 10000 | 6000 | 4800 | 500 | 450 | ≥ 1.5 | 800 | 50 | 139, 000 | 6300× 4400× 5800 |
WE67K-1000/8000 | 10000 | 8000 | 5600 | 500 | 450 | ≥ 1.5 | 800 | 50 | 150, 000 | 8300× 4400× 5800 |
