• Model NO.：HQJ-D Series
• Suitable for：Plastic, Aluminum, Paper
• Transport Package：Fumigated Wooden Case
• Specification：CE
• Trademark：sunworld
• Origin：China Shanghai
• HS Code：84411000
• Production Capacity：30 Sets, Month

Basic Info.

Model NO. HQJ-D Series Suitable for Plastic, Aluminum, Paper Transport Package Fumigated Wooden Case Specification CE Trademark sunworld Origin China Shanghai HS Code 84411000 Production Capacity 30 Sets/ Month

Product Description

Performance and Characteristics

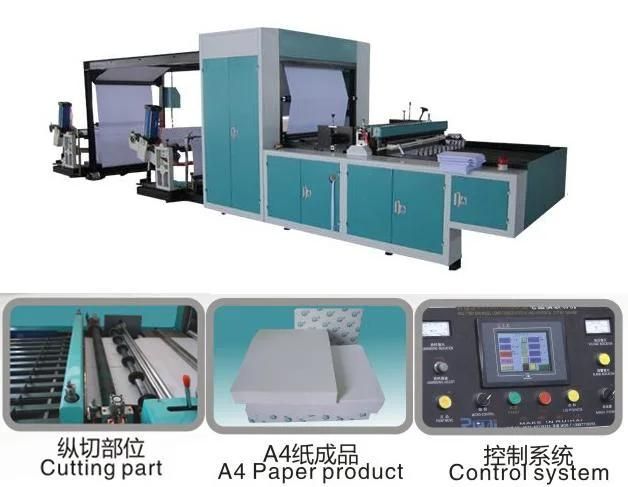

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc.

  It adopts PLC touch screen control, servo motor for controlling constant-length cutting.

It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.This machine can be with 1 roll.2roll.4roll loading systerm.  Main Technical Parameters



Model	HQJ-1100D(Two roll)	HQJ-1400D(Two roll)
Max.width of cutting	1100mm	1400mm
Max diameter of material	φ1400mm	φ1400mm
Min.width of cutting	50mm	50mm
Length of cutting	20-400mm	20-400mm
Speed	10-140times/min	10-140times/min
Precision	±0.2mm	±0.2mm
Total Power	9.5kw	11kw
Weight	3500kg	4000kg
Overall dimension(LxWxH)	8600x1500x2000mm	8600x1800x2000mm
